Share a mouse, keyboard, RS-232 device, and dual-4K 60Hz DisplayPort monitors between two DisplayPort-enabled desktopsThis Dual-Monitor KVM Switch enables users to switch between two desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, two USB 5Gbps devices, and two USB 2.0 HID devices.RS232 Serial ControlThis 2-Port KVM Switch provides control using serial commands, enabling users to switch between host ports, modify hotkeys, and perform various other functions. The RS232 host ports offer additional flexibility by allowing the switching of an RS232 device between two desktop computers.Near Instantaneous SwitchingDisplayPort EDID and USB Emulation technology enable near-instant switching of a keyboard, video, and mouse. DisplayPort EDID emulation remembers application window placement, while USB Emulation ensures compatibility with combination keyboards/mice, as well as keyboards featuring additional function keys.Dual-4K 60Hz DisplayPort MonitorsThis TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it an ideal choice for working with high-resolution graphics or video. It also features MST pass-through, enabling the connection of additional monitors through daisy chaining - when using an MST Hub or the Video Output Ports located on the monitor.Customizable SwitchingThis Universal KVM Switch offers multiple switching options, including hotkey, on-screen display, or push-button switching. Hotkeys provide independent switching of USB/Video, Audio, and RS232, allowing for audio playback from one computer while controlling the other or switching without interrupting serial communication. An audible buzzer confirms hotkey input, and LEDs provide a visual indication of the selected host.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• MAC Address Pass-Through Utility: Improve network security.• USB Event Monitoring Utility: Track and log connected USB devices.• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage
Design
Hot keys Yes
Housing material Steel, Zinc
LED indicators Yes
Product colour Black
Push button Yes
Display
Built-in display No
HD type 4K Ultra HD
On Screen Display (OSD) Yes
Features
Daisy chain No
Data transfer rate (max) 5 Gbit/s
Plug and Play Yes
Graphics
Maximum resolution 3840 x 2160 pixels
Logistics data
Master (outer) case height 274 mm
Master (outer) case length 385 mm
Master (outer) case width 370 mm
Products per master (outer) case 2 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Other features
AC adapter included Yes
IP control No
Packaging content
Cables included DisplayPort, USB Type-A to USB Type-B
Quick installation guide Yes
Performance
Scan interval 10,20,30,40,50,60 s

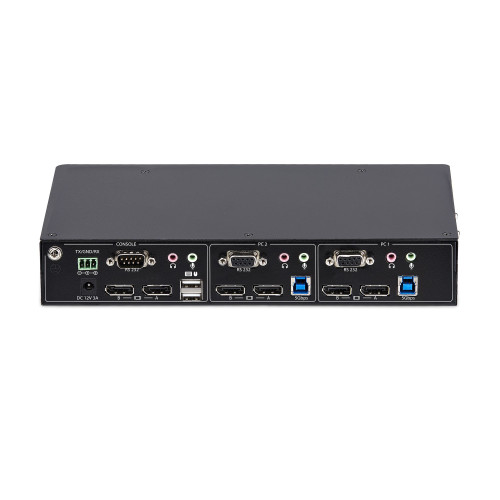

Ports & interfaces
Audio connections Yes
Console DisplayPorts ports quantity 2
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity 4
DisplayPort version 1.2
DisplayPorts quantity 4
Headphone outputs 3
Keyboard port type USB
Mouse port type USB
Number of computers controlled 2
Number of microphone inputs 3
Serial port type DE-9 (DB-9)
Serial ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
Video port type DisplayPort
Power
AC input voltage 100 - 240 V
External power adapter Yes
Input current 1 A
Output current 3 A
Output voltage 12 V
Power source DC
Technical details
Mean time between failures (MTBF) 80907 h
Rack mounting No
Weight & dimensions
Depth 255 mm
Height 40 mm
Package depth 331 mm
Package height 175 mm
Package weight 2.1 kg
Package width 246 mm
Weight 1.1 kg
Width 130 mm

Write a review

Please login or register to review

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switching, TAA Compliant - Includes 2x DP and USB Host Cables

  • Brand: StarTech.com
  • Product Code: P2DD46A22-KVM-SWITCH
  • Availability: In Stock
  • $606.10
