Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitor
The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.
No Drivers or Software
The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.
Multiple Switching Options
Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.
Rack Mount Kit Included
The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.
To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.
No Drivers or Software
The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.
Multiple Switching Options
Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.
Rack Mount Kit Included
The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.
To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
| Design | |
| Hot keys | Yes |
| Housing material | Zinc |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Display | |
| Built-in display | No |
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | No |
| Features | |
| Daisy chain | No |
| Data transfer rate (max) | 0.48 Gbit/s |
| Rack capacity | 1U |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Master (outer) case height | 316 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case width | 466 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Audio support | Yes |
| IP control | No |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Performance | |
| Audio channels | 2.0 |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 s |
| Ports & interfaces | |
| Audio connections | Yes |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 8 |
| Headphone outputs | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| Number of microphone inputs | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Video port type | DisplayPort |
| Power | |
| Compatible power plug types | AU, EU, UK, US |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Output current | 3 A |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Power source | DC |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Mean time between failures (MTBF) | 73003 h |
| Rack mounting | Yes |
| Weight & dimensions | |
| Depth | 300 mm |
| Height | 44 mm |
| Package depth | 288 mm |
| Package height | 70 mm |
| Package weight | 2.3 kg |
| Package width | 435 mm |
| Weight | 1.5 kg |
| Width | 164 mm |

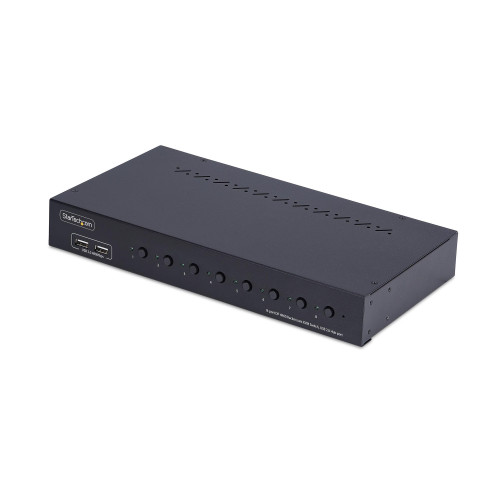

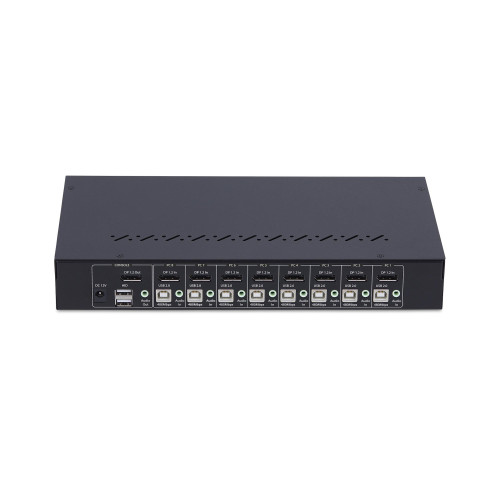

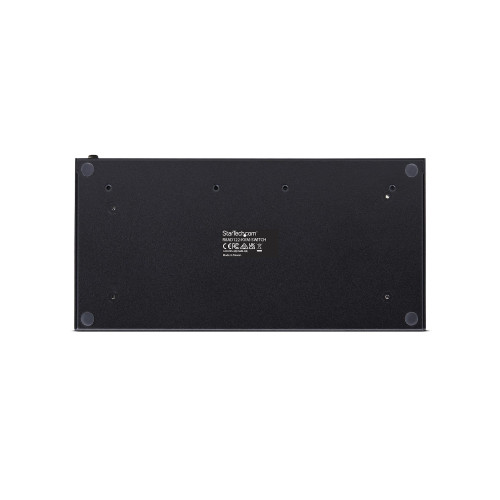

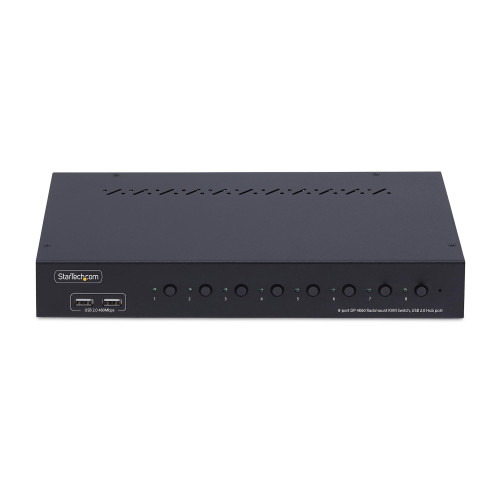

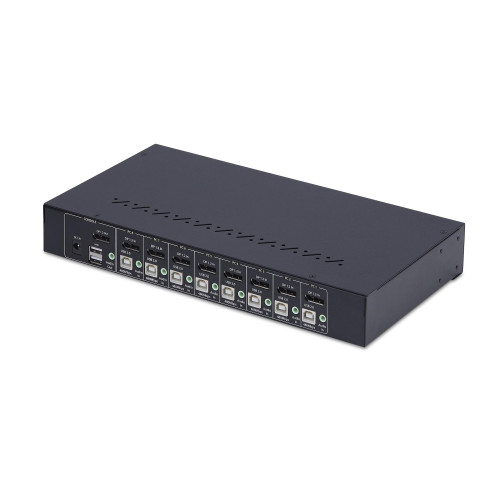

StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
- Brand: StarTech.com
- Product Code: R8AD122-KVM-SWITCH
- Availability: In Stock
-
$486.83
