Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities
The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.
Universal Compatibility
The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.
Customizable Switching

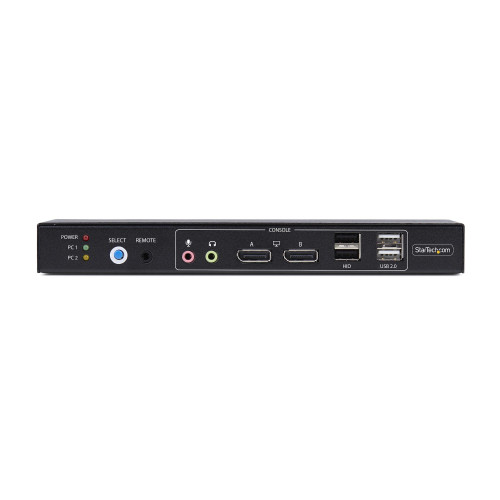

Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.
USB Audio
Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.
Universal Compatibility
The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.
Customizable Switching
Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.
USB Audio
Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
| Design | |
| Hot keys | Yes |
| Housing material | Aluminium, Steel |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Wired remote switch | Yes |
| Display | |
| Built-in display | No |
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | No |
| Features | |
| Daisy chain | No |
| Data transfer rate (max) | 0.48 Gbit/s |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Master (outer) case height | 333 mm |
| Master (outer) case length | 419 mm |
| Master (outer) case width | 539 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| AC adapter included | Yes |
| IP control | No |
| Packaging content | |
| Quick installation guide | Yes |
| Performance | |
| Audio channels | 2.0 |
| Scan interval | 10,20,30,40,50,60 s |
| Ports & interfaces | |
| Audio connections | Yes |
| Console DisplayPorts ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 4 |
| Headphone outputs | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Number of microphone inputs | 1 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| USB hub | Yes |
| Video port type | DisplayPort |
| Power | |
| Compatible power plug types | AU, EU, UK, US |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Output current | 3 A |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Power source | DC |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Mean time between failures (MTBF) | 87298 h |
| Rack mounting | No |
| Weight & dimensions | |
| Depth | 221 mm |
| Height | 26 mm |
| Package depth | 292 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Package width | 250 mm |
| Weight | 626 g |
| Width | 105 mm |
StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix, 4K 60Hz, 4x USB Hub Ports, Hotkey Switching, DP 1.2 Matrix KVM, TAA Compliant
- Brand: StarTech.com
- Product Code: P2ADD121D-KVM-SWITCH
- Availability: In Stock
-
$359.84
