| Design | |
| Product colour | Black |
| Scanner type | Sheet-fed scanner |
| Input capacity | |
| Standard input capacity | 60 sheets |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 32.5 °C |
| Other features | |
| AC adapter included | Y |
| Power consumption (sleep) | 1.4 W |
| Scan media weight | 27 - 209 g/m² |
| Packaging content | |
| Cables included | AC, USB |
| Paper handling | |
| Card thickness (max) | 1.4 mm |
| Maximum ISO A-series paper size | A4 |
| Maximum scan length | 3 m |
| Maximum scan width | 21.6 cm |
| Media thickness (min) | 0.06 mm |
| Multi feed detection | Y |
| Scanning media types supported | Business Card, Plastic Card |
| Performance | |
| Daily duty cycle (max) | 3500 pages |
| Light source | RGB LED |
| Output colour depth | 24 bit |
| Scan drivers | ISIS, TWAIN |
| Sensor type | CMOS CIS |
| USB version | 2.0 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Ports & interfaces | |
| Standard interfaces | USB 2.0 |
| USB port | Y |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Power consumption (off) | 0.1 W |
| Power consumption (typical) | 19 W |
| Power supply type | AC |
| Sleep mode | Y |
| Scanning | |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Colour scanning | Y |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
| Duplex scanning | Y |
| Greyscale levels | 256 |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Output greyscale depth | 8 bit |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions | |
| Depth | 253 mm |
| Height | 231 mm |
| Weight | 2.8 kg |
| Width | 291 mm |

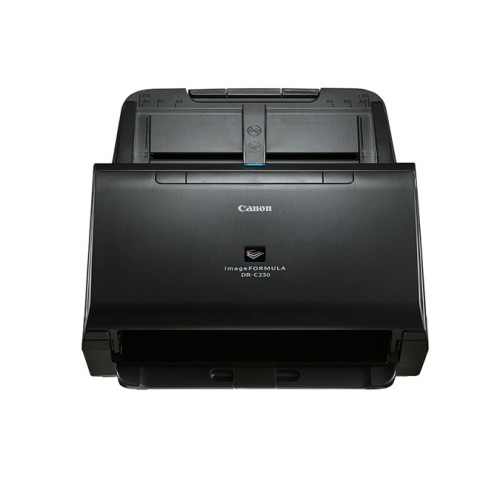

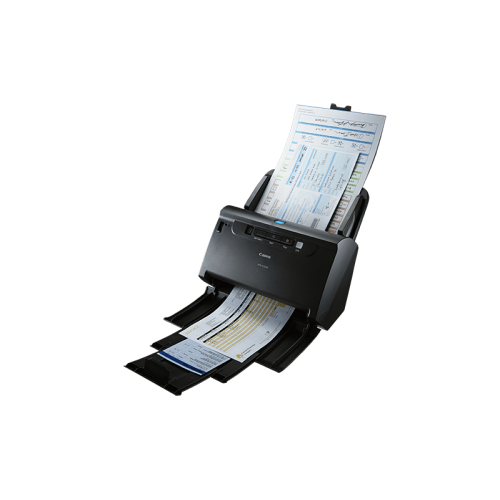

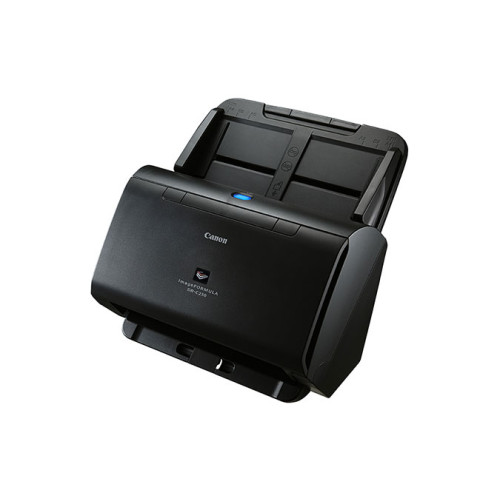

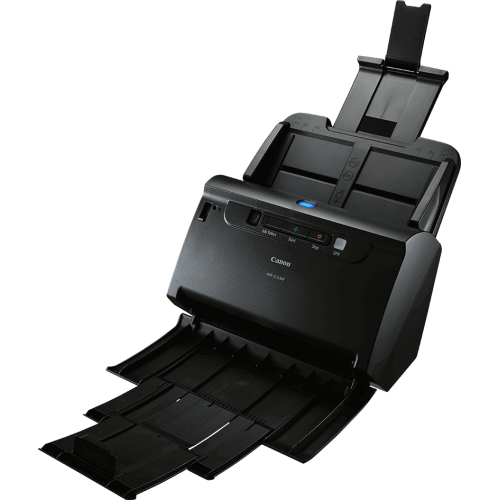

Canon imageFORMULA DR-C230 Sheet-fed scanner 600 x 600 DPI A4 Black
- Brand: Canon
- Product Code: 2646C002
- Availability: In Stock
