Design
Country of origin	China
Housing material	Metal
Mounting	Horizontal/Vertical
PDU types	Basic
Product colour	Black
Features
Cable length	1.83 m
Power protection features	Overload
Rack capacity	0U/1U
Type	Single-phase
Logistics data
Master (outer) case gross weight	16.8 kg
Master (outer) case GTIN (EAN/UPC)	10037332255768
Master (outer) case height	254 mm
Master (outer) case length	523.2 mm
Master (outer) case width	353.1 mm
Products per master (outer) case	6 pc(s)
Operational conditions
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-30 - 50 °C
Packaging content
Manual	Y
Packaging data
Rack mount kit	Y
Ports & interfaces

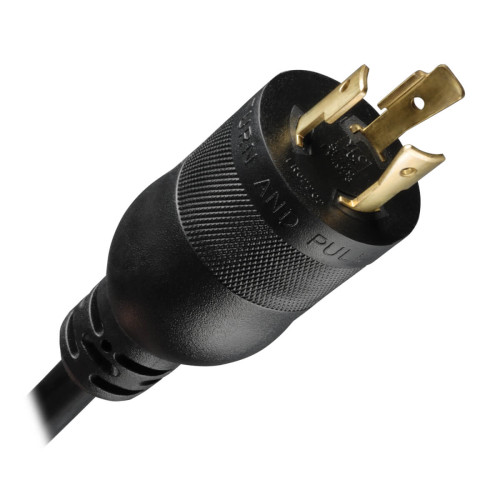

Power plug	NEMA L5-20P
Power
AC input frequency	50 - 60 Hz
AC outlet types	NEMA 5–15R, NEMA 5–20R
AC outlets quantity	13 AC outlet(s)
Maximum current	20 A
Maximum power	2500 W
Nominal input voltage	100 - 127 V
Nominal output voltage	100 - 127 V
Weight & dimensions
Depth	114.3 mm
Height	44.4 mm
Package depth	518.2 mm
Package height	236.2 mm
Package weight	2.59 kg
Package width	57.2 mm
Weight	2.36 kg
Width	508 mm

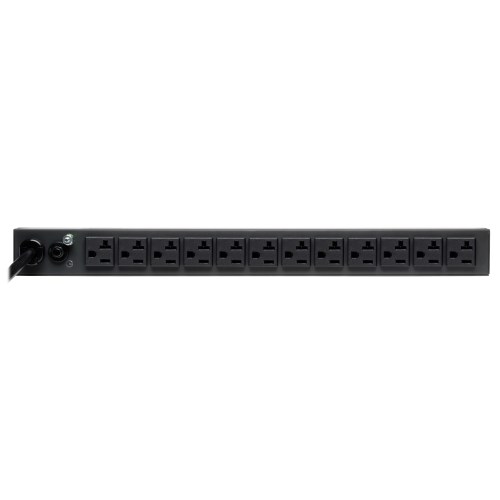

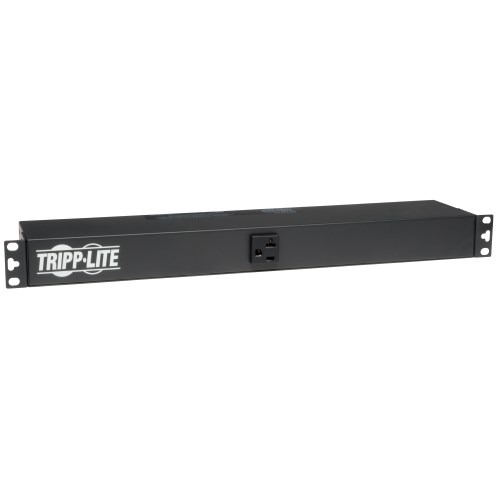

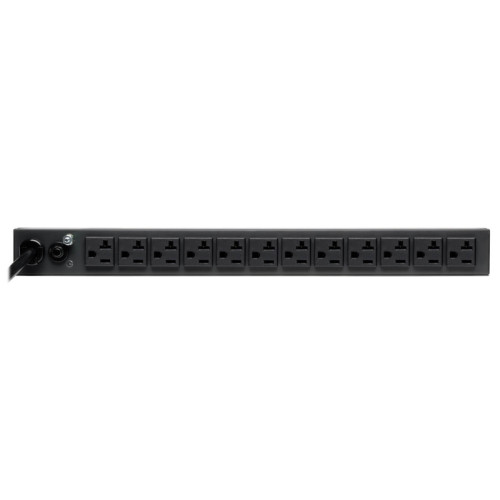

Tripp Lite PDU1220T6 power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
