Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
| Certification | CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS,REACH |
| Product colour | Black |
| Features | |
| Cable length | 3 m |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Other features | |
| Dimensions (WxDxH) | 56 x 44 x 1791 mm |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Packaging data | |
| Package dimensions (WxDxH) | 162 x 107 x 2000 mm |
| Ports & interfaces | |
| Input connection type | NEMA L6-30P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 30 A |
| Weight & dimensions | |
| Package weight | 8.47 kg |
| Weight | 6.84 kg |

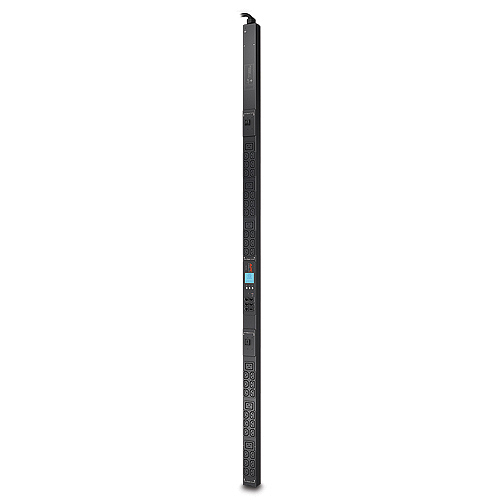

APC AP8841 power distribution unit (PDU) Black
- Brand: APC
- Product Code: AP8841
- Availability: In Stock
-
$810.59
