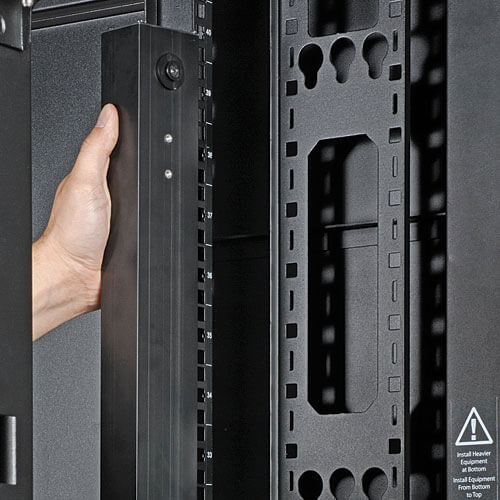

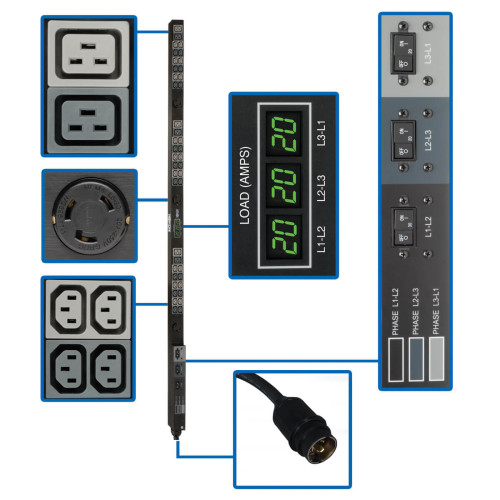

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1 |
| Country of origin | Taiwan |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 1.83 m |
| Rack capacity | 0U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 67 x 56 x 1778 mm |
| Power | |
| AC input frequency | 60 Hz |
| AC outlets quantity | 45 AC outlet(s) |
| Load capacity | 14400 VA |
| Maximum current | 40 A |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 67.3 mm |
| Height | 1778 mm |
| Package depth | 1968.5 mm |
| Package height | 154.9 mm |
| Package weight | 10 kg |
| Package width | 254 mm |
| Weight | 6.44 kg |
| Width | 55.9 mm |
Tripp Lite PDU3MV6H50A power distribution unit (PDU) 45 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDU3MV6H50A
- Availability: In Stock
-
$926.41
