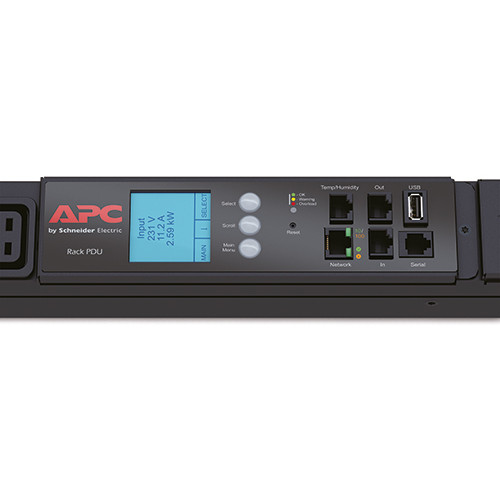

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 1.83 m |
| Power protection features | Overload |
| Rack capacity | 2U |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Other features | |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 18 AC outlet(s) |
| Maximum input current per phase | 48 A |
| Maximum total current draw per phase | 48 A |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 9.5 kg |

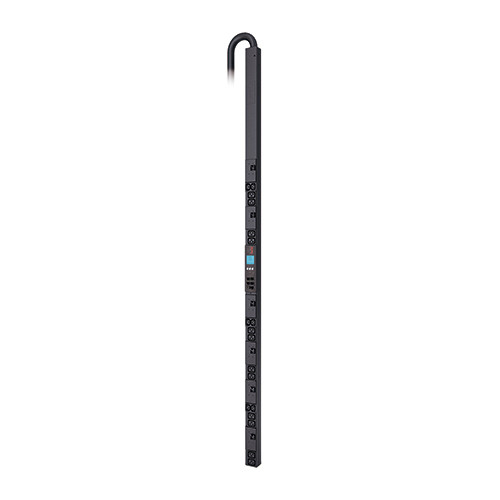

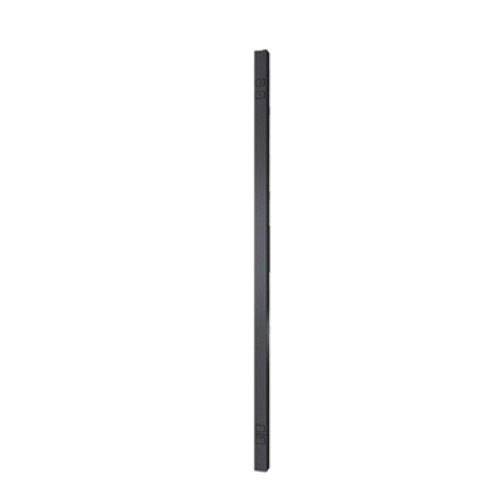

APC AP8866 power distribution unit (PDU) 18 AC outlet(s) 2U Black
- Brand: APC
- Product Code: AP8866
- Availability: In Stock
-
$2,636.57
