- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
- An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Design
Certification cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Mounting Horizontal/Vertical
PDU types Metered
Product colour Black
Display
Display LCD
Features
Cable length 1.83 m
Power protection features Overload
Rack capacity 0U
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 55 °C
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -25 - 65 °C
Other features
Dimensions (WxDxH) 56 x 51 x 1829 mm
Packaging data
Package dimensions (WxDxH) 221 x 112 x 2149 mm
Ports & interfaces

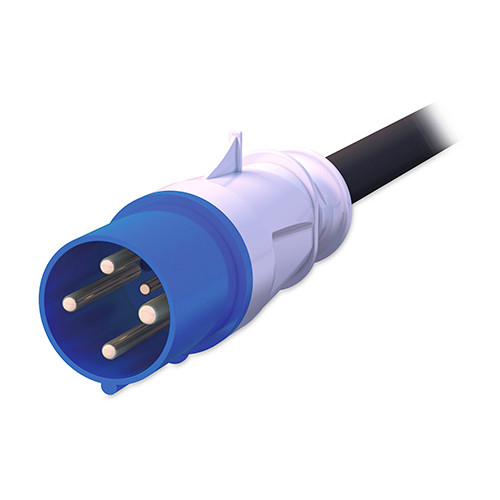

Input connection type IEC 309 60A 3P+PE
Power
AC input frequency 50 - 60 Hz
AC outlet types C13 coupler
AC outlets quantity 30 AC outlet(s)
Load capacity 17300 VA
Maximum current 60 A
Maximum input current per phase 48 A
Maximum total current draw per phase 48 A
Nominal input voltage 208 V
Nominal output voltage 208 V
Output voltage 208 V
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Package weight 14.1 kg
Weight 10.2 kg

Write a review

Please login or register to review

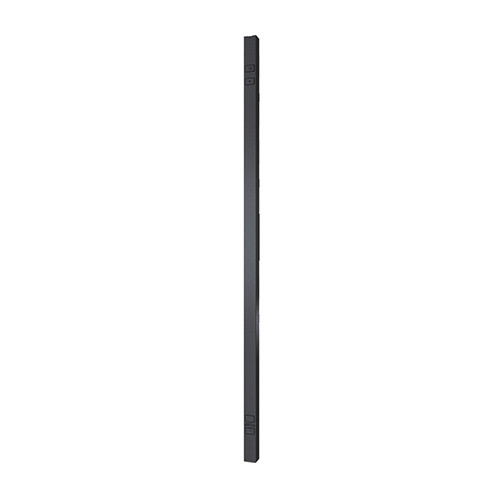

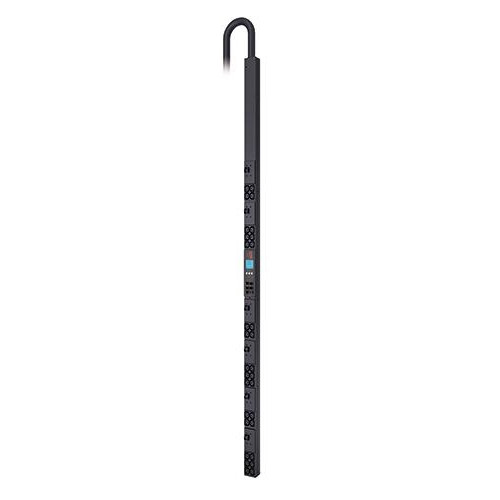

APC AP8867 power distribution unit (PDU) 30 AC outlet(s) 0U Black

  • Brand: APC
  • Product Code: AP8867
  • Availability: In Stock
  • $2,645.13
