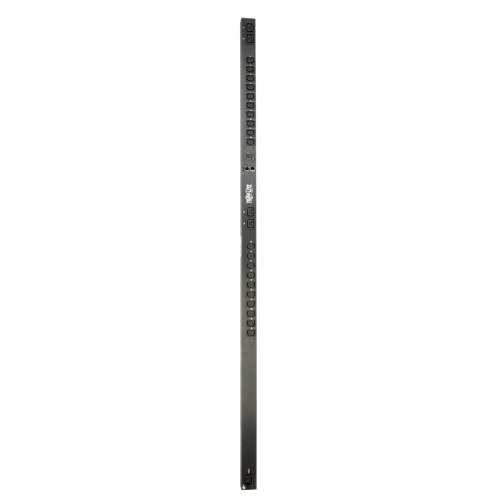

The PDUMNV20HVLX 3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug is included.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

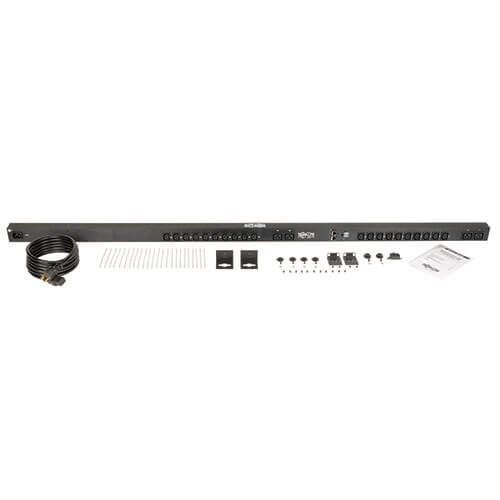

A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Distributes and Monitors Network-Grade AC Power
3.3-3.7kW 208/230V 16A monitored PDU with single-phase input
C20 inlet compatible with wide variety of user-supplied power cords

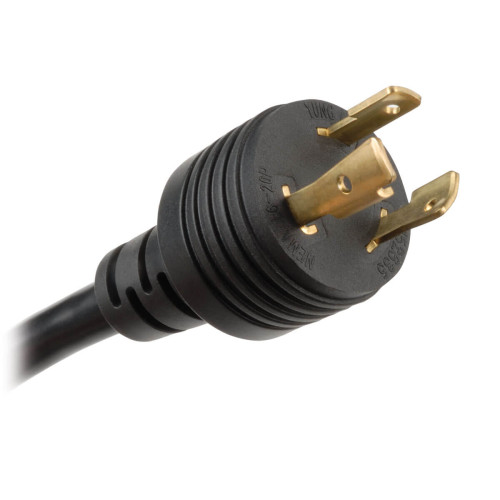

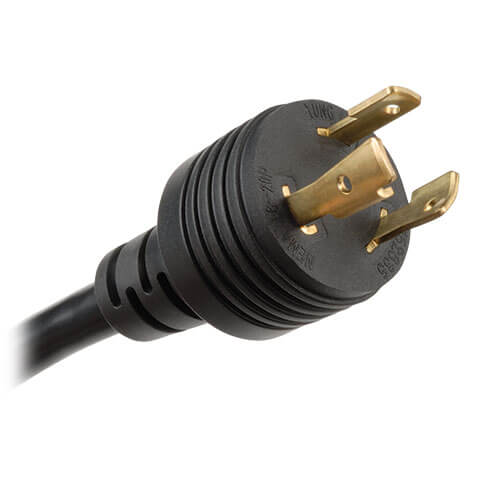

Detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug included
Firmware upgrades support future product enhancements

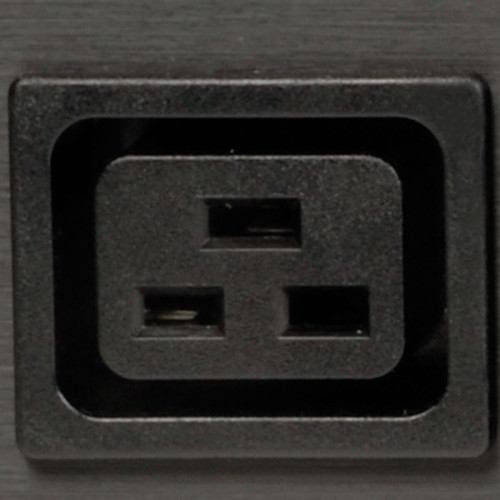

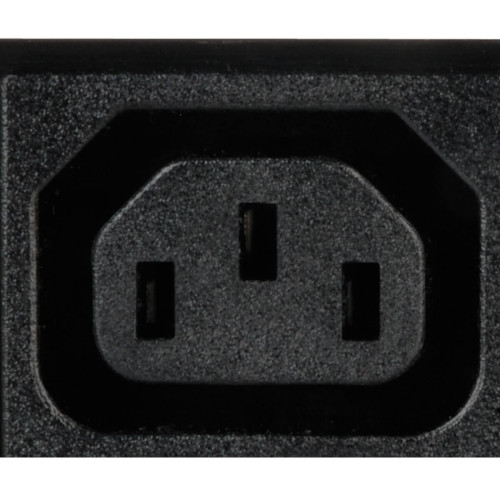

20 C13 and 4 C19 Outlets Distribute AC Power
Included plug-lock inserts prevent cables from becoming accidentally disconnected
Digital Ammeter
Reports total connected equipment load in real time
Supports IP-address self-ID
Rotates 180° for easy reading at either angle

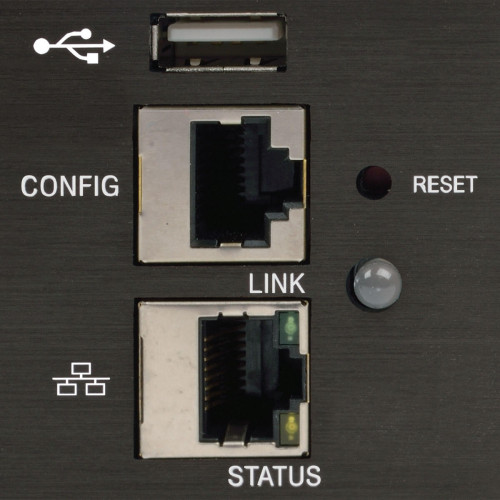

Built-In LX Platform Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks

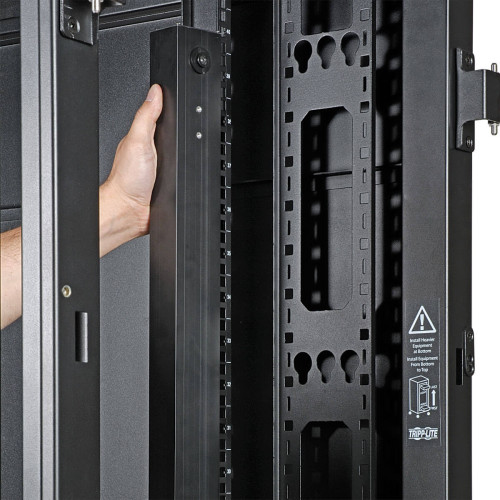

Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Distributes and Monitors Network-Grade AC Power
3.3-3.7kW 208/230V 16A monitored PDU with single-phase input
C20 inlet compatible with wide variety of user-supplied power cords
Detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug included
Firmware upgrades support future product enhancements
20 C13 and 4 C19 Outlets Distribute AC Power
Included plug-lock inserts prevent cables from becoming accidentally disconnected
Digital Ammeter
Reports total connected equipment load in real time
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
| Design | |
| Country of origin | Taiwan |
| LED indicators | Y |
| Mounting | Vertical |
| On/off switch | Y |
| PDU types | Monitored |
| Product colour | Black |
| Features | |
| Cable length | 3.05 m |
| Rack capacity | 0U |
| Type | Single-phase |
| Logistics data | |
| Master (outer) case gross weight | 6.12 kg |
| Master (outer) case height | 101.6 mm |
| Master (outer) case length | 1841.5 mm |
| Master (outer) case width | 152.4 mm |
| Products per master (outer) case | 1 pc(s) |
| Management features | |
| Monitoring | Current, Power |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -15 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 56 x 67 x 1778 mm |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Package dimensions (WxDxH) | 102 x 152 x 1842 mm |
| Ports & interfaces | |
| Master AC outlets quantity | 20 |
| Power plug | NEMA L6-20P |
| Slave AC outlets quantity | 4 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 24 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 208-230 V |
| Nominal output voltage | 208-230 V |
| Protocols | |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 67.3 mm |
| Height | 1778 mm |
| Package depth | 1841.5 mm |
| Package height | 101.6 mm |
| Package weight | 6.12 kg |
| Package width | 152.4 mm |
| Weight | 3.86 kg |
| Width | 55.6 mm |
Tripp Lite PDUMNV20HVLX 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 20 C13, 4 C19 Outlets, C20 Input with L6-20P Adapter, 0U 1778mm Height, TAA
- Brand: Tripp-Lite
- Product Code: PDUMNV20HVLX
- Availability: In Stock
-
$472.70
