32A single phase 230V Local Metered Power Distribution Unit / PDU
Set of two lighted current meters separately report power consumption in amps for each output load bank

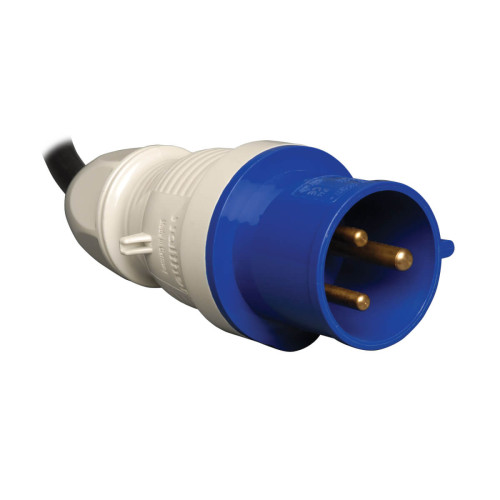

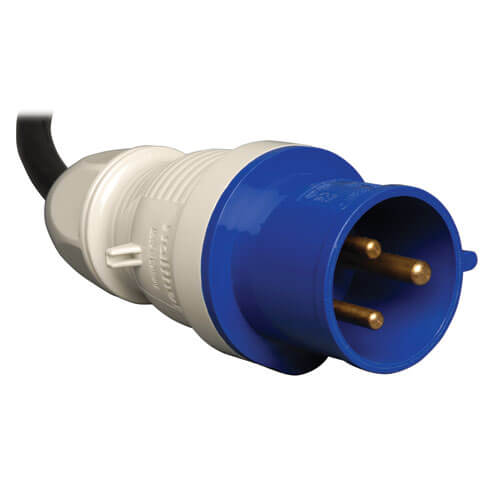

Attached IEC-309 32A (2P+E) input plug with 12-ft. (3.66 m) line cord
2U horizontal rackmount format installs in two rack spaces

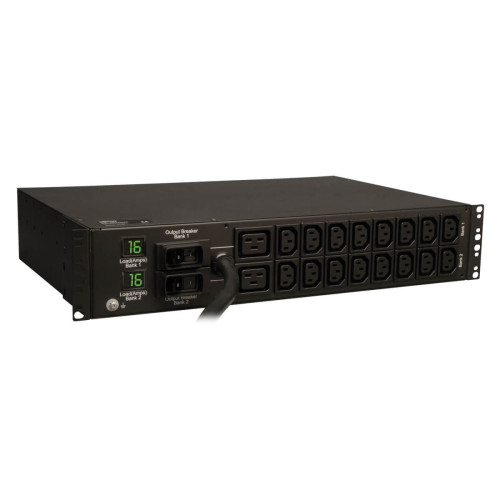

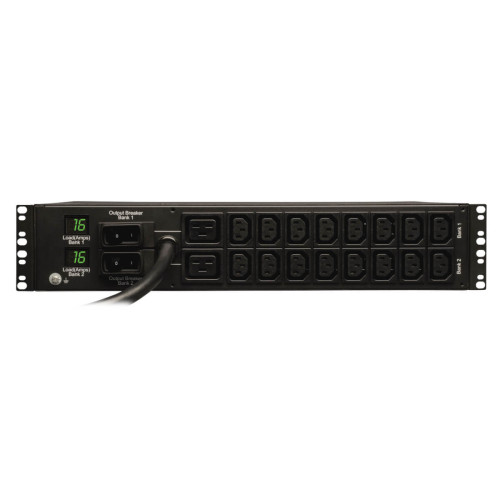

18 total 230V outlets (2 C19, 16 C13)
Outlets are arranged in two separately breakered and local metered 16A load banks (each with 8 C13 and 1 C19 outlet)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front-panel grounding lug
Included cord retention brackets
Set of two lighted current meters separately report power consumption in amps for each output load bank
Attached IEC-309 32A (2P+E) input plug with 12-ft. (3.66 m) line cord
2U horizontal rackmount format installs in two rack spaces
18 total 230V outlets (2 C19, 16 C13)
Outlets are arranged in two separately breakered and local metered 16A load banks (each with 8 C13 and 1 C19 outlet)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front-panel grounding lug
Included cord retention brackets
| Design | |
| Certification | CE (IEC 60950-1), UL, CSA, Class A |
| Country of origin | Taiwan |
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LCD |
| Features | |
| Cable length | 3.65 m |
| Rack capacity | 2U |
| Logistics data | |
| Master (outer) case gross weight | 6.67 kg |
| Master (outer) case height | 198.1 mm |
| Master (outer) case length | 490.2 mm |
| Master (outer) case width | 426.7 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 445 x 317.5 x 89 mm |
| Ports & interfaces | |
| Power plug | IEC309 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 18 AC outlet(s) |
| Maximum current | 32 A |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 88.9 mm |
| Package depth | 490.2 mm |
| Package height | 198.1 mm |
| Package weight | 6.67 kg |
| Package width | 426.7 mm |
| Weight | 6.26 kg |
| Width | 444.5 mm |
Tripp Lite PDUMH32HV 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
- Brand: Tripp-Lite
- Product Code: PDUMH32HV
- Availability: In Stock
-
$369.31
