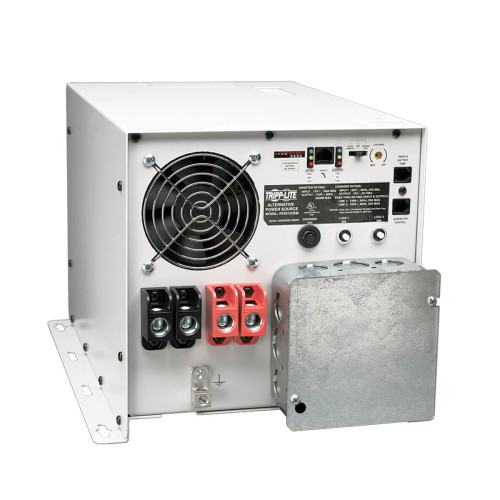

• Tripp Lite RV3012OEM power adapter/inverter Indoor 3000 W White
Tripp Lite's RV3012OEM Inverter/Charger is the quiet alternative to gas generators with no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. Supplies up to 3000 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 35/140 amp charging system. Includes optional dual-circuit hardwire AC input to enable full charger output from circuit 1 with a 120V 20A input and full AC pass-through from circuit 2 with a second 120V 20A input feed. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.
Design
Certification RoHS
Country of origin China
Housing material Steel
LED indicators Y
Product colour White
Features
Input frequency 60 Hz
Output frequency 60 Hz
Output power 3000 W
Power current type AC1-to-AC2
Purpose Universal
Logistics data
Harmonized System (HS) code 8504.40.9570
Master (outer) case gross weight 31.8 kg
Master (outer) case height 589.3 mm
Master (outer) case length 391.2 mm
Master (outer) case width 378.5 mm
Products per master (outer) case 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Power
Input voltage 120 V
Output voltage 120 V
Power supply type Indoor
Weight & dimensions
Depth 425.4 mm
Height 247.6 mm
Package depth 391.2 mm
Package height 589.3 mm
Package weight 31.8 kg
Package width 378.5 mm
Weight 28.4 kg
Width 292.1 mm

Write a review

Please login or register to review

Tripp Lite RV3012OEM power adapter/inverter Indoor 3000 W White

  • Brand: Tripp-Lite
  • Product Code: RV3012OEM
  • Availability: In Stock
  • $1,711.51
