Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Design | |
| Certification | cUL Recognized,CSA,UL 1363,UL Recognized, RoHS |
| Product colour | Black |
| Features | |
| Cable length | 3.66 m |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Other features | |
| Dimensions (WxDxH) | 447 x 57 x 44 mm |
| Output connections | 10x NEMA 5-20R |
| Ports & interfaces | |
| Input connection type | NEMA 5-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 2400 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Weight & dimensions | |
| Weight | 2.5 kg |

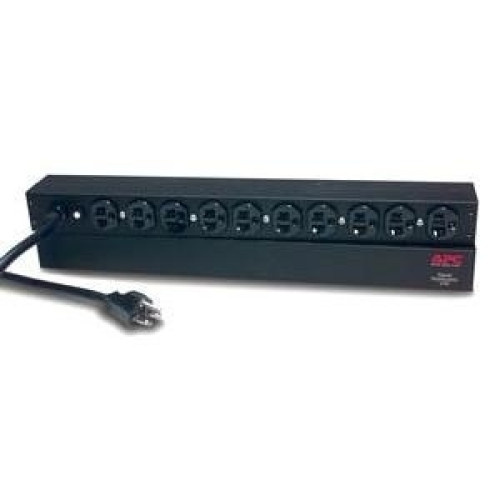

APC Rack PDU, Basic, 1U, 20A, 120V power distribution unit (PDU) Black
- Brand: APC
- Product Code: AP9563
- Availability: In Stock
-
$193.67
