Design
Country of origin	China
Housing material	Metal
LED indicators	Y
Mounting	Horizontal/Vertical
PDU types	Basic
Product colour	Black
Features
Cable length	1.83 m
EMI/RFI noise filtering	Y
Power protection features	Overload
Rack capacity	0U/1U
Type	Single-phase
Logistics data
Master (outer) case gross weight	10.1 kg
Master (outer) case GTIN (EAN/UPC)	10037332255997
Master (outer) case height	247.6 mm
Master (outer) case length	349.2 mm
Master (outer) case width	527 mm
Products per master (outer) case	6 pc(s)
Operational conditions
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-30 - 50 °C
Packaging content
Manual	Y
Packaging data
Rack mount kit	Y
Ports & interfaces
Power plug	NEMA L5-20P
Power
AC input frequency	50 - 60 Hz
AC outlet types	NEMA 5–15R, NEMA 5–20R
AC outlets quantity	14 AC outlet(s)
Maximum current	20 A
Maximum power	2030 W
Nominal input voltage	100 - 127 V
Nominal output voltage	100 - 127 V
Surge energy rating	3840 J
Weight & dimensions
Depth	114.3 mm
Height	50.8 mm
Package depth	518.2 mm
Package height	55.9 mm
Package weight	2.59 kg
Package width	236.2 mm
Weight	2.09 kg
Width	508 mm

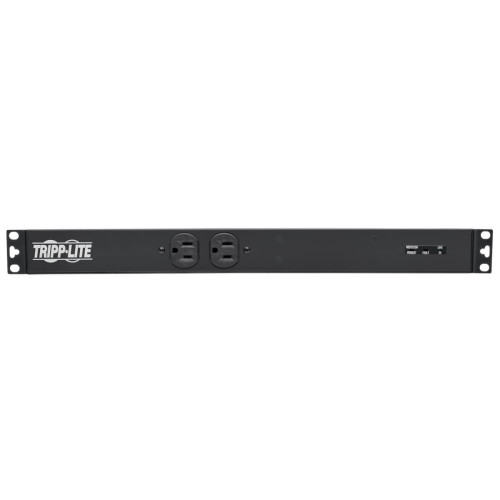

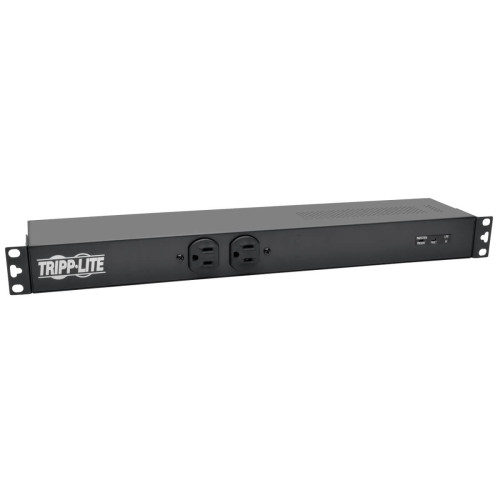

Tripp Lite PDUH20-ISO6 power distribution unit (PDU) 14 AC outlet(s) 0U/1U Black
