Design
Country of origin	China
Housing material	Aluminium
Mounting	Vertical
On/off switch	Y
PDU types	Basic
Product colour	Black
Features
Cable length	4.57 m
Power protection features	Overload
Rack capacity	0U
Type	Single-phase
Logistics data
Master (outer) case gross weight	22.5 kg
Master (outer) case GTIN (EAN/UPC)	10037332255829
Master (outer) case height	214.9 mm
Master (outer) case length	1944.9 mm
Master (outer) case width	359.9 mm
Products per master (outer) case	6 pc(s)
Operational conditions
Storage temperature (T-T)	-30 - 50 °C
Ports & interfaces

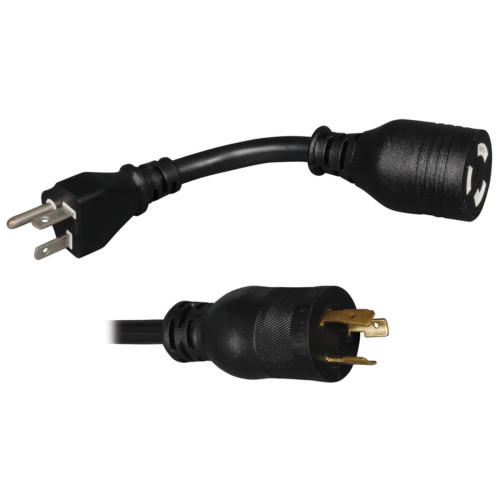

Power plug	NEMA L5-20P
Power
AC input frequency	50 - 60 Hz

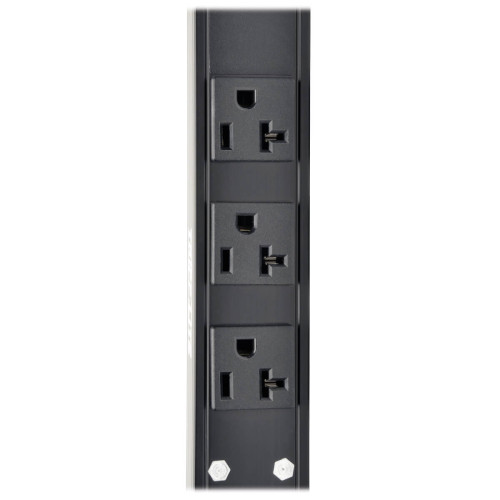

AC outlet types	NEMA 5–15, NEMA 5–20R
AC outlets quantity	36 AC outlet(s)
Maximum current	20 A
Maximum power	2030 W
Nominal input voltage	100 - 127 V
Nominal output voltage	100 - 127 V
Weight & dimensions
Depth	41.7 mm
Height	1840.7 mm
Package depth	1925.1 mm
Package height	61 mm
Package weight	3.48 kg
Package width	168.9 mm
Weight	2.79 kg
Width	38.1 mm

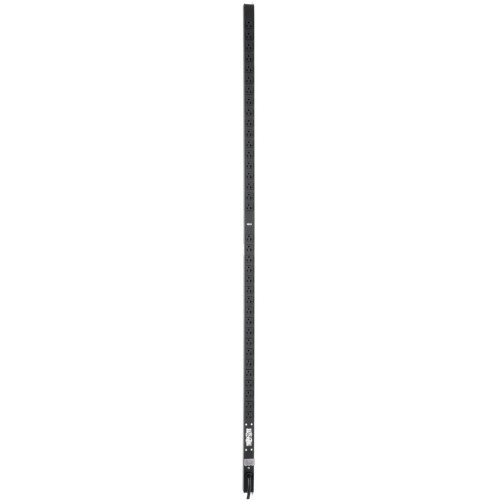

Tripp Lite PDUV20-72 power distribution unit (PDU) 36 AC outlet(s) 0U Black
