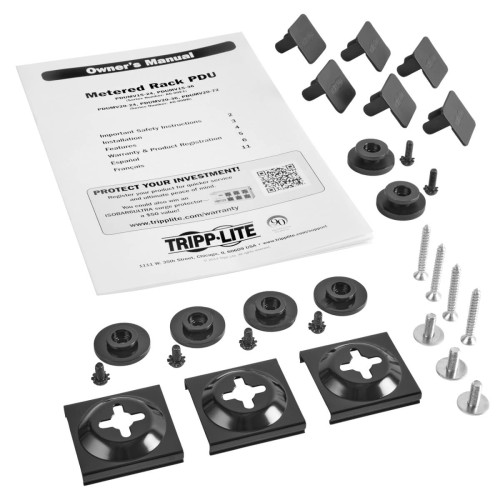

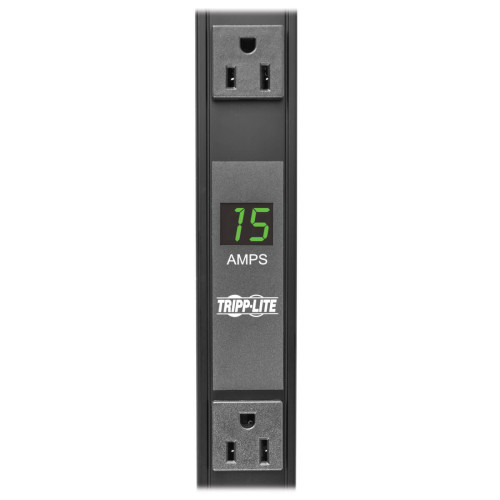

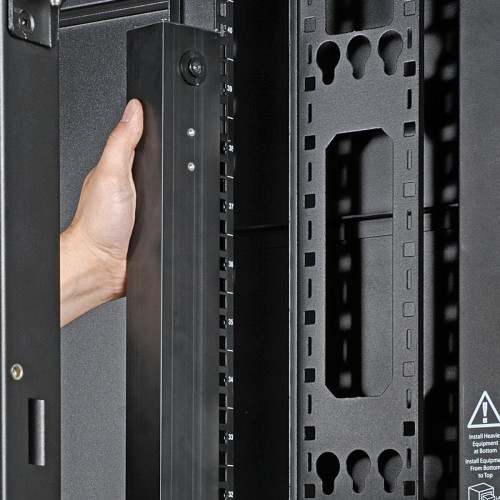

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1 (USA), CSA60950-1, NOM |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 22.5 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332255836 |
| Master (outer) case height | 214.9 mm |
| Master (outer) case length | 1944.9 mm |
| Master (outer) case width | 359.9 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | 5 - 95 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| Power plug | NEMA L5-15P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 36 AC outlet(s) |
| Load capacity | 1800 VA |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 1840.7 mm |
| Package depth | 1925.1 mm |
| Package height | 61 mm |
| Package weight | 3.48 kg |
| Package width | 168.9 mm |
| Weight | 2.79 kg |
| Width | 38.1 mm |

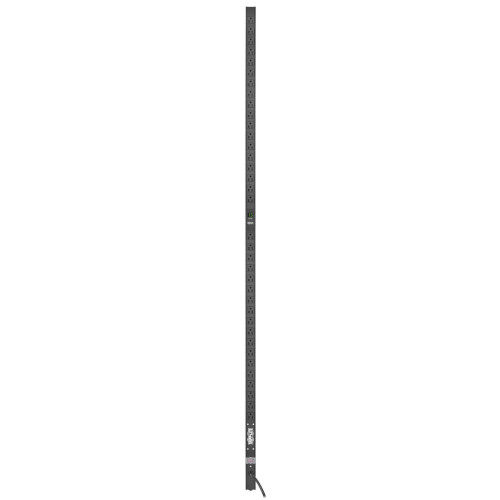

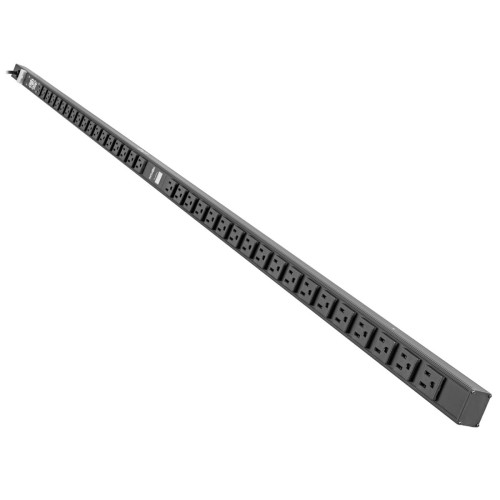

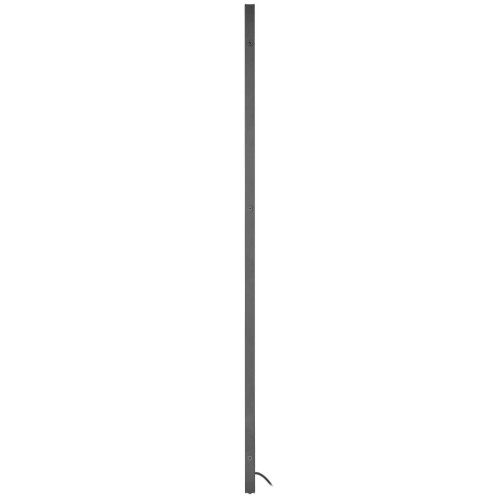

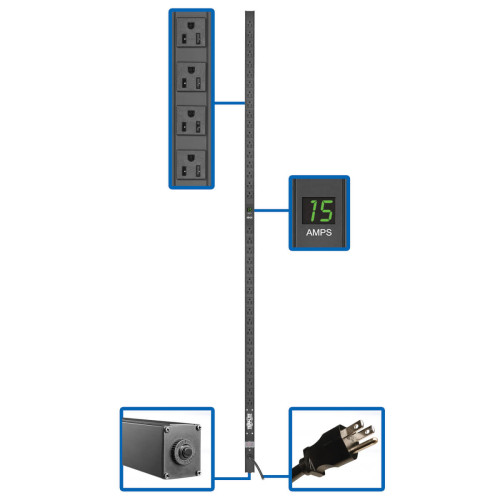

Tripp Lite 1.5kW 100-127V Single-Phase Metered PDU - 36 NEMA 5-15R Outlets, 5-15P Input, 15 ft. Cord, 72 in. 0U Rack
- Brand: Tripp-Lite
- Product Code: PDUMV15-72
- Availability: In Stock
-
$214.17
