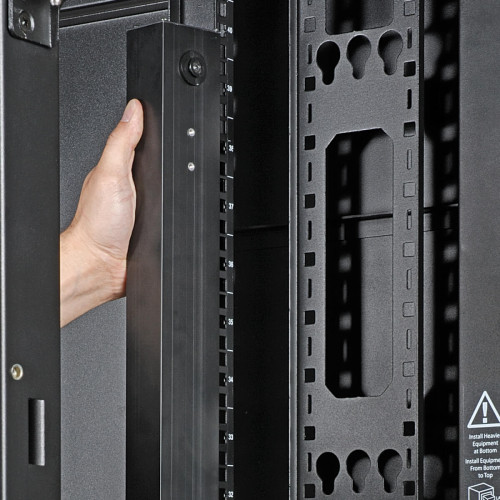

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 12.8 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332255812 |
| Master (outer) case height | 214.9 mm |
| Master (outer) case length | 1335 mm |
| Master (outer) case width | 195.1 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |

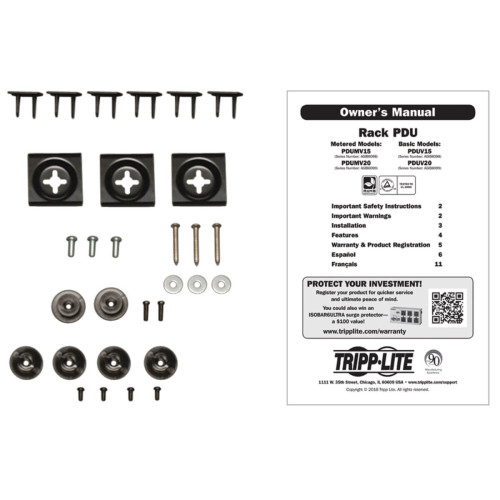

| Rack mount kit | Y |
| Ports & interfaces | |

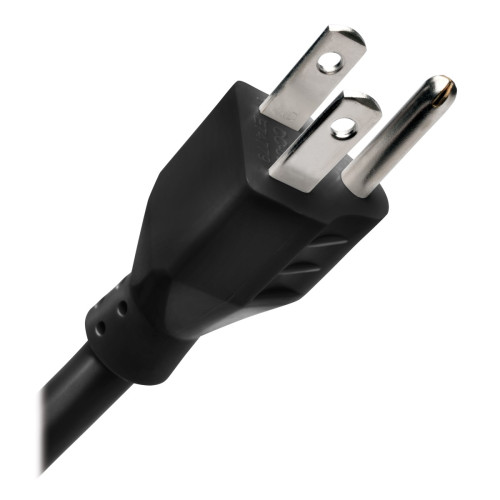

| Power plug | NEMA L5-15P |
| Power | |
| AC input frequency | 50 - 60 Hz |

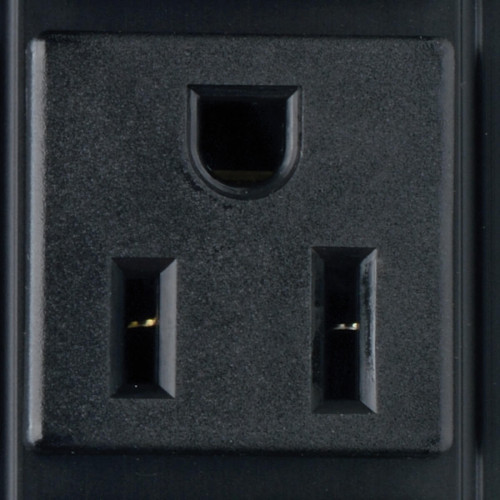

| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 16 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 1231.1 mm |
| Package depth | 61 mm |
| Package height | 1315 mm |
| Package weight | 2.01 kg |
| Package width | 87.1 mm |
| Weight | 1.7 kg |
| Width | 38.1 mm |

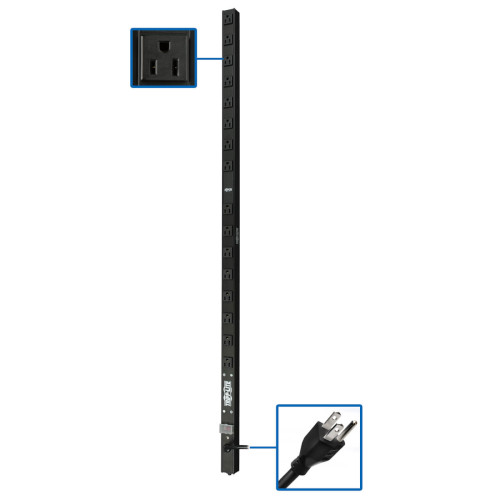

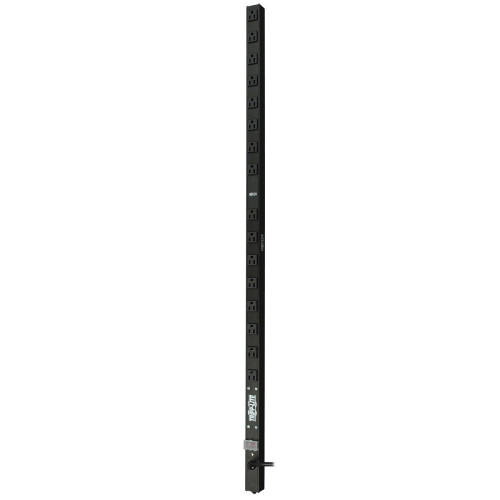

Tripp Lite 1.4kW 120V Single-Phase Basic PDU - 16 NEMA 5-15R Outlets, 5-15P Input, 15 ft. Cord, 48 in. 0U Rack
- Brand: Tripp-Lite
- Product Code: PDUV15-48
- Availability: In Stock
-
$138.69
