Features
Single-Phase 208/230V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound

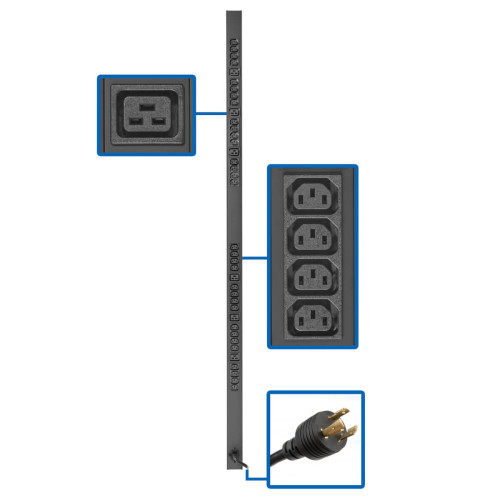

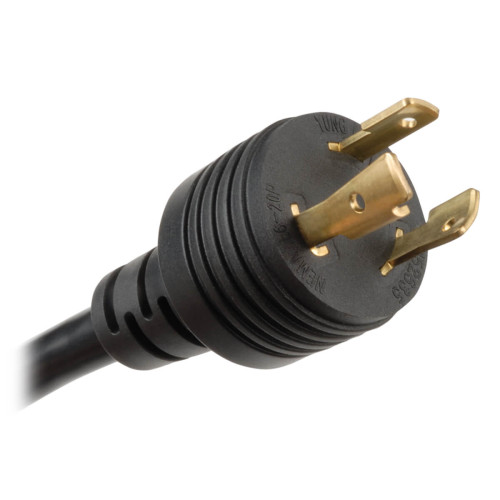

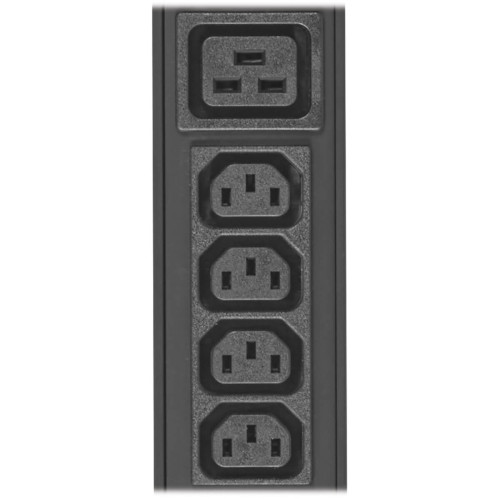

reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Versatile Installation Options Give You Plenty of Choices

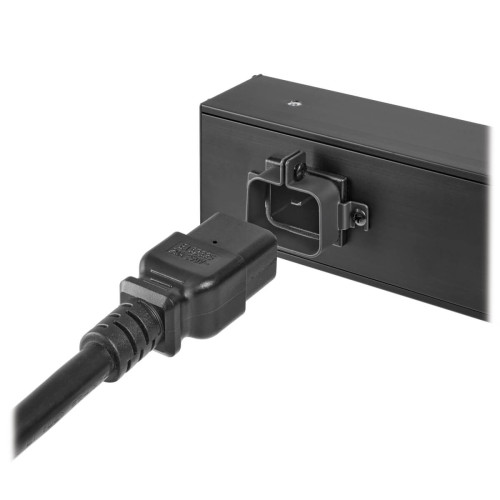

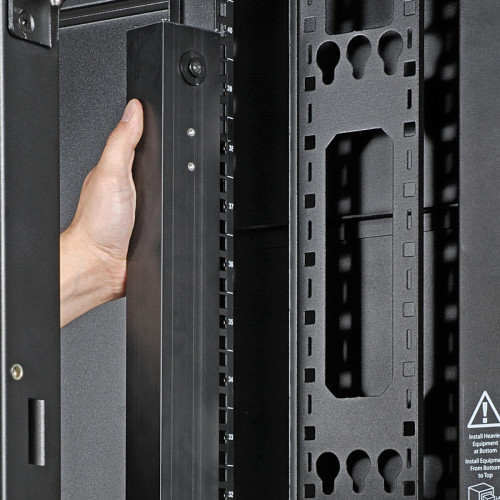

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components’ plugs to keep them connected and the devices continuously powered.
Single-Phase 208/230V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound
reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Versatile Installation Options Give You Plenty of Choices
The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components’ plugs to keep them connected and the devices continuously powered.
| Design | |
| Certification | UL60950-1 (USA), CSA60950-1, NOM |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 29.9 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332255942 |
| Master (outer) case height | 177.8 mm |
| Master (outer) case length | 1676.4 mm |
| Master (outer) case width | 406.4 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | 5 - 95 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| Power plug | NEMA L6-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA L6-20R |
| AC outlets quantity | 16 AC outlet(s) |
| Load capacity | 1800 VA |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 57.2 mm |
| Height | 1619.2 mm |
| Package depth | 1663.7 mm |
| Package height | 127 mm |
| Package weight | 4.9 kg |
| Package width | 76.2 mm |
| Weight | 3.63 kg |
| Width | 88.9 mm |
Tripp Lite 3.7kW 208/230V Single-Phase Basic PDU - 32 C13 & 6 C19 Outlets, L6-20P Input, 10 ft. Cord, 63.75 in. 0U Rack
- Brand: Tripp-Lite
- Product Code: PDUV20HVL6-72
- Availability: In Stock
-
$256.66
