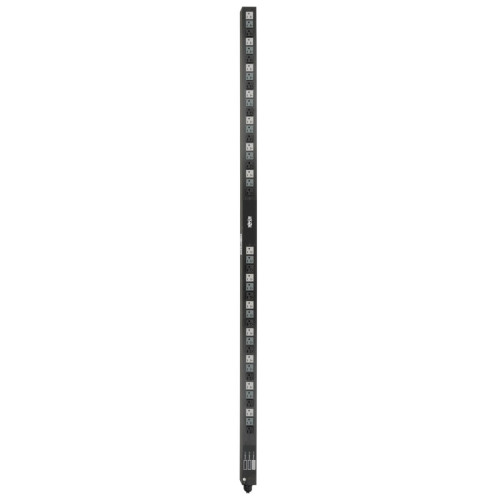

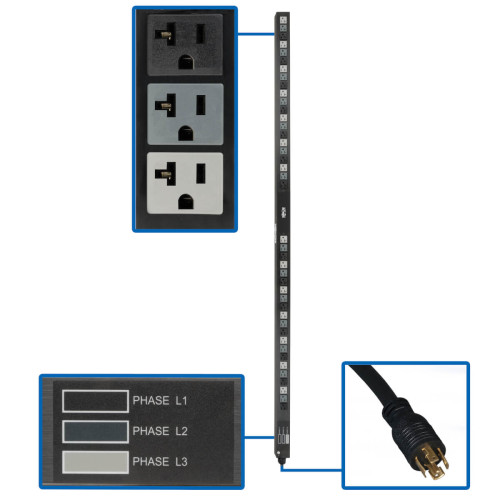

3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

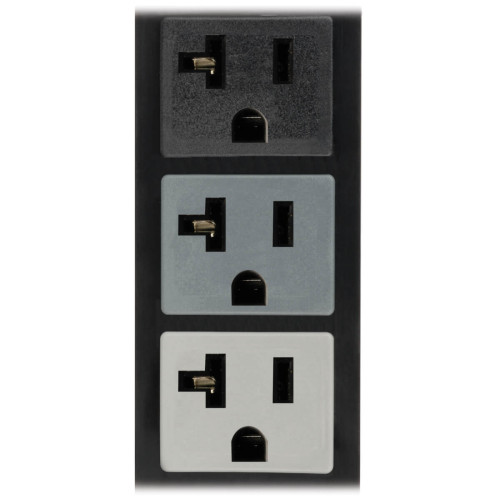

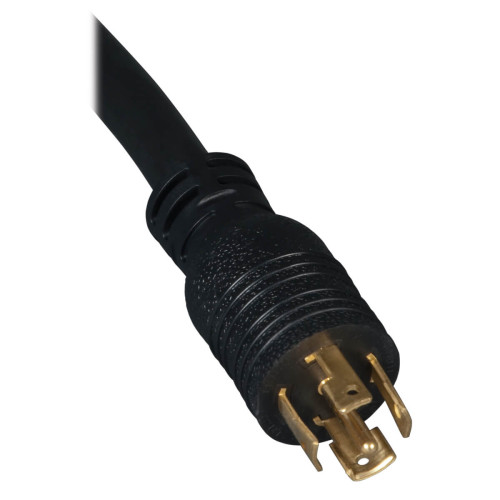

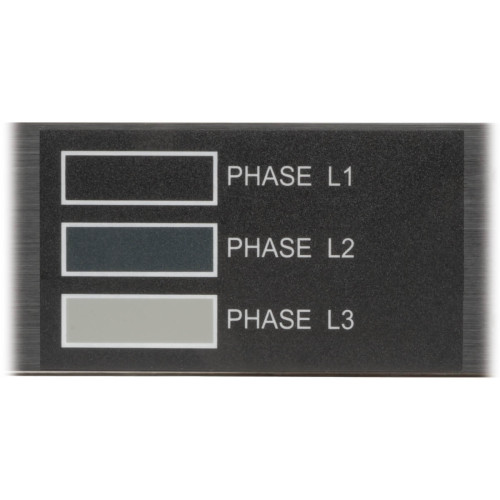

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

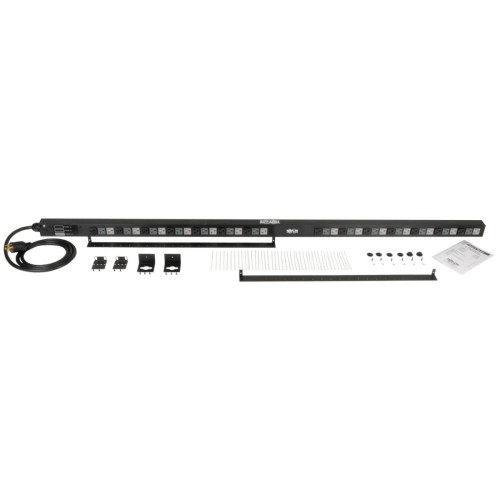

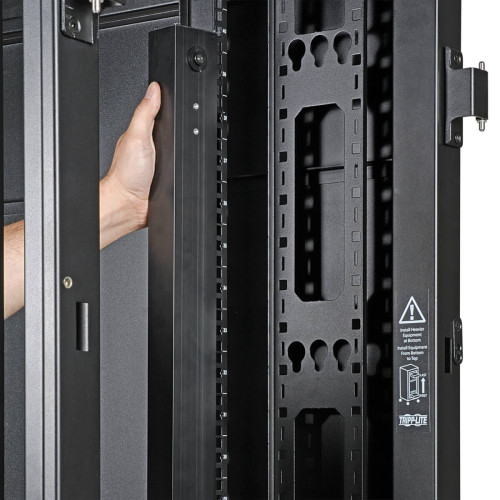

The 70-inch 0U PDU’s all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU’s switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU’s all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU’s switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Design | |
| Certification | TAA |
| Country of origin | Taiwan |
| Housing material | Metal |
| Mounting | Vertical |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 1.83 m |
| Rack capacity | 0U |
| Type | Three-phase |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |
| Power plug | NEMA L21-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 42 AC outlet(s) |
| Maximum current | 16 A |
| Maximum power | 5700 W |
| Nominal input voltage | 208 V |
| Nominal output voltage | 120 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Depth | 49 mm |
| Height | 1778 mm |
| Package depth | 1930.4 mm |
| Package height | 137.2 mm |
| Package weight | 6.62 kg |
| Package width | 172.7 mm |
| Weight | 5.76 kg |
| Width | 55.9 mm |
Tripp Lite 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack, TAA
- Brand: Tripp-Lite
- Product Code: PDU3V6L2120LV
- Availability: In Stock
-
$444.41
