Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
- Attached NEMA L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 24 NEMA 5-15R outlets (12 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- 30A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
- Attached NEMA L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 24 NEMA 5-15R outlets (12 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
| Design | |
| Certification | UL60950-1/CAN/CSA C22.2 No. 60950-1-03 |
| Country of origin | China |
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 22.4 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332117288 |
| Master (outer) case height | 304.8 mm |
| Master (outer) case length | 525.8 mm |
| Master (outer) case width | 502.9 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 445 x 111 x 44 mm |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 24 AC outlet(s) |
| Maximum current | 30 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 114.3 mm |
| Height | 44.4 mm |
| Package depth | 515.6 mm |
| Package height | 76.2 mm |
| Package weight | 3.4 kg |
| Package width | 276.9 mm |
| Weight | 3.36 kg |
| Width | 438.2 mm |

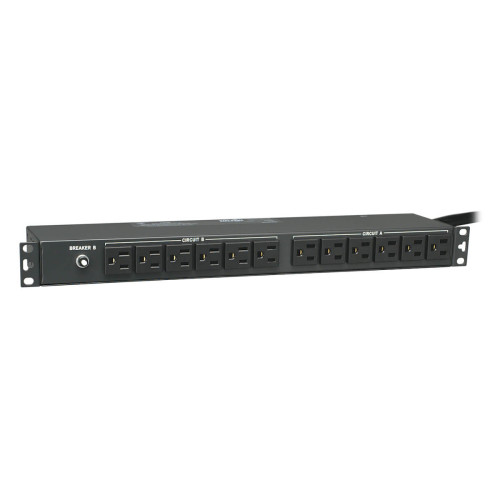

Tripp Lite 2.9kW Single-Phase Basic PDU, 120V Outlets (24 5-15R), L5-30P, 15ft Cord, 1U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDU2430
- Availability: In Stock
-
$263.95
