The SUPDMB710IEC converts the output of our SmartOnline SU8000RT3U and SU10000RT3U to worldwide output connections. Manual bypass feature ensures maximum availability of connected equipment while UPS maintenance occurs. Can accept input voltages of 200-240 VAC. Hardwire input/ 6 IEC320 C19 output connections.
Converts the output of our SmartOnline SU8000RT3U and SU10000RT3U to worldwide output connections
Manual bypass feature ensures maximum availability of connected equipment while UPS maintenance occurs
Can accept input voltages of 200-240 VAC
Hardwire input/ 6 IEC320 C19 output connections
Converts the output of our SmartOnline SU8000RT3U and SU10000RT3U to worldwide output connections
Manual bypass feature ensures maximum availability of connected equipment while UPS maintenance occurs
Can accept input voltages of 200-240 VAC
Hardwire input/ 6 IEC320 C19 output connections
| Design | |
| Certification | UL1778, CSA, CE |
| Country of origin | China |
| PDU types | Basic |
| Product colour | Black |
| Logistics data | |
| Master (outer) case gross weight | 4.49 kg |
| Master (outer) case height | 340.4 mm |
| Master (outer) case length | 243.8 mm |
| Master (outer) case width | 238.8 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 191 x 165 x 260 mm |
| Weight (imperial) | 3.58 kg (7.9 lbs) |
| Ports & interfaces | |
| Input connection type | Hardwire |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C19 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 165.1 mm |
| Height | 260.4 mm |
| Package depth | 243.8 mm |
| Package height | 340.4 mm |
| Package weight | 4.49 kg |
| Package width | 238.8 mm |
| Weight | 3.58 kg |
| Width | 190.5 mm |

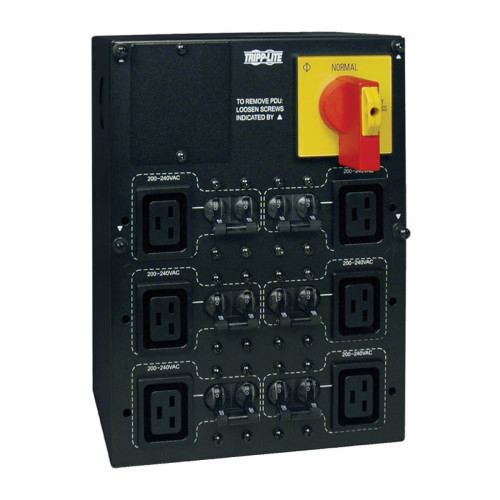

Tripp Lite SUPDMB710IEC Detachable PDU option with IEC output connections for compatible SmartOnline UPS Systems
- Brand: Tripp-Lite
- Product Code: SUPDMB710IEC
- Availability: In Stock
-
$778.25
