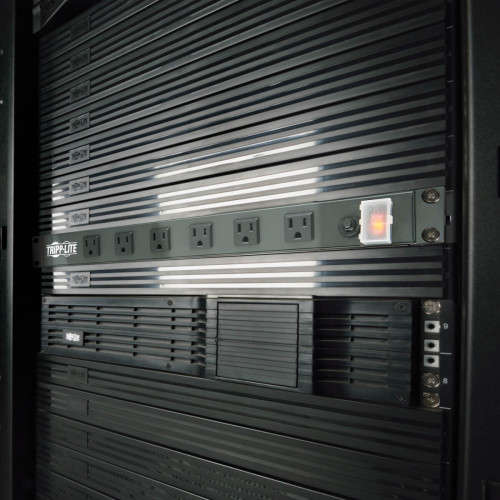

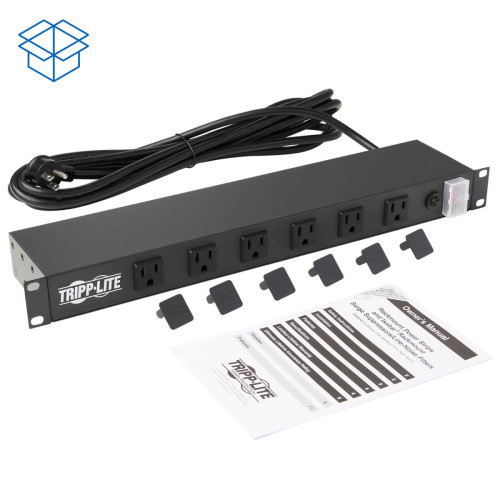

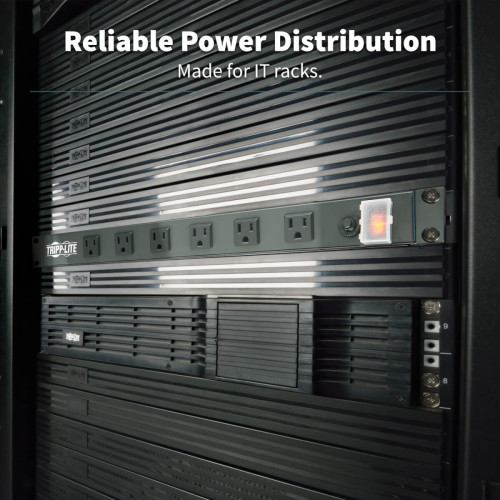

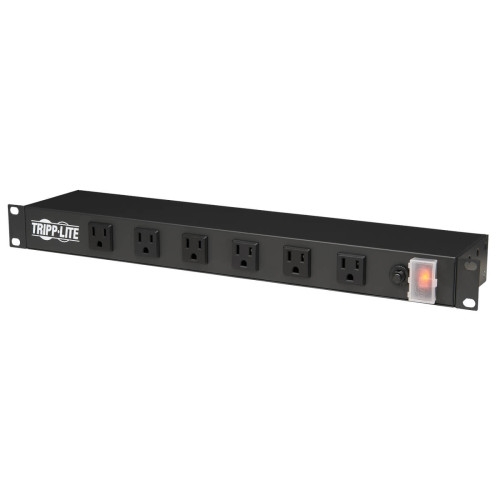

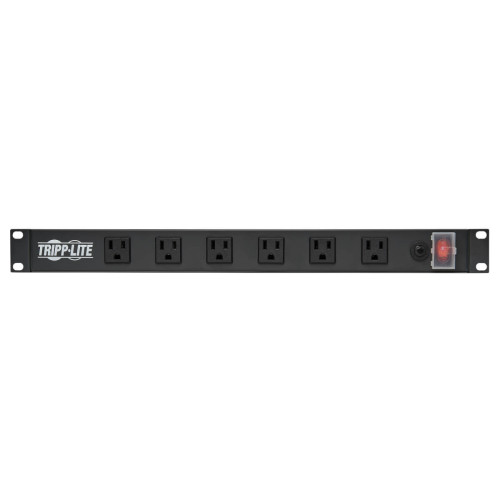

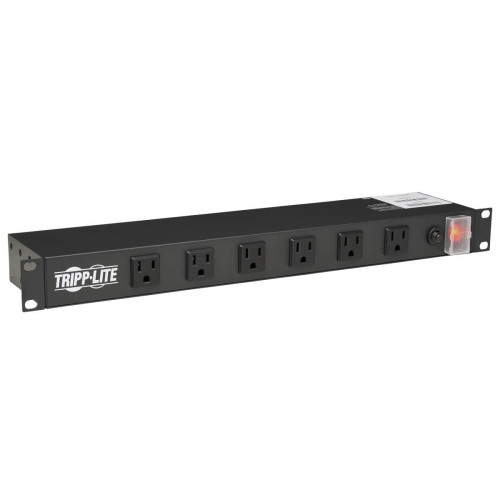

Tripp Lite's RS-1215-RA Power Strip offers 15A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19-in. rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Features 12 NEMA5-15R outlets (6 front/6 rear) placed at a right angle (with ground pin at bottom), 15-ft. AC power cord and lighted power switch with cover that prevents risk of accidental turn-off.

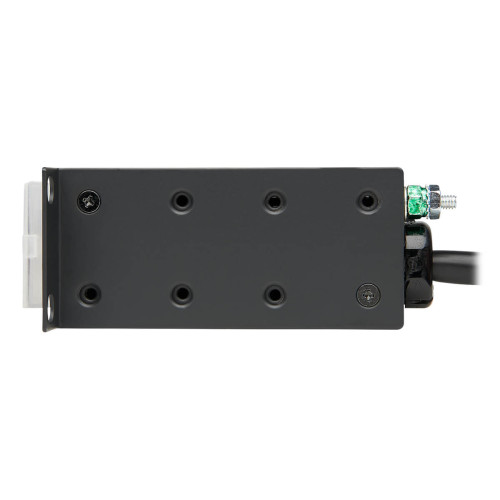

- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options.

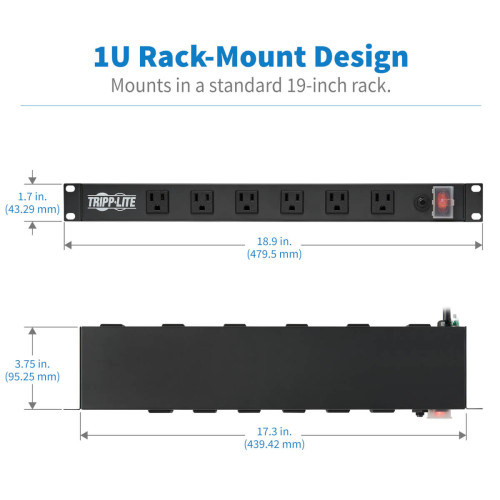

- Uses one rack space (1U) in standard 19-in. rack ("zero U" mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment.

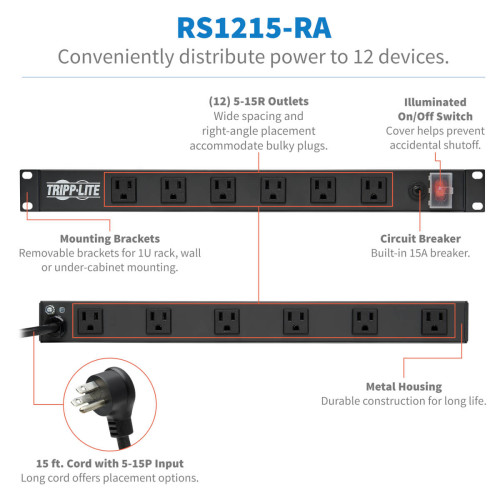

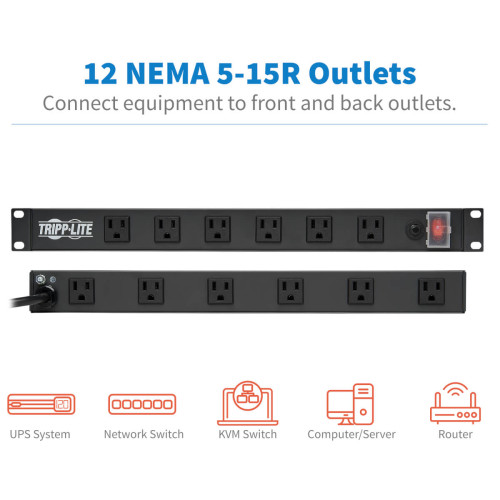

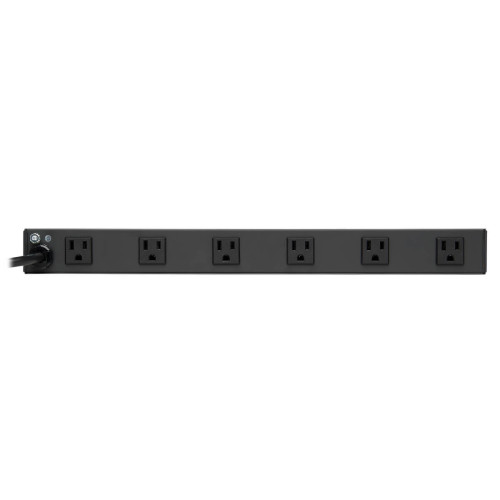

- 12 x NEMA5-15R output receptacles (6 front/6 rear).

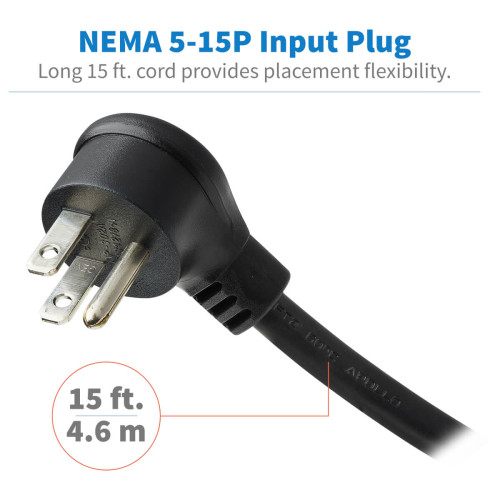

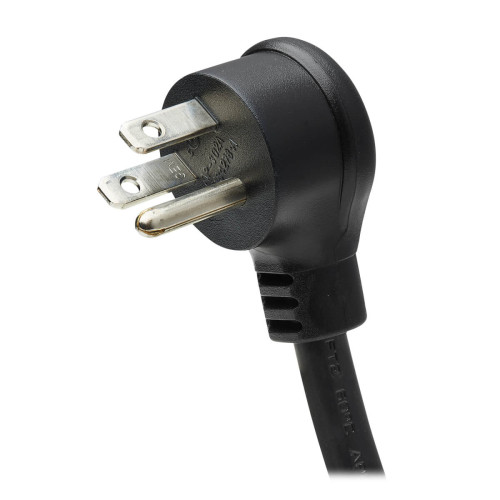

- 15-ft. AC cord with NEMA5-15P plug.

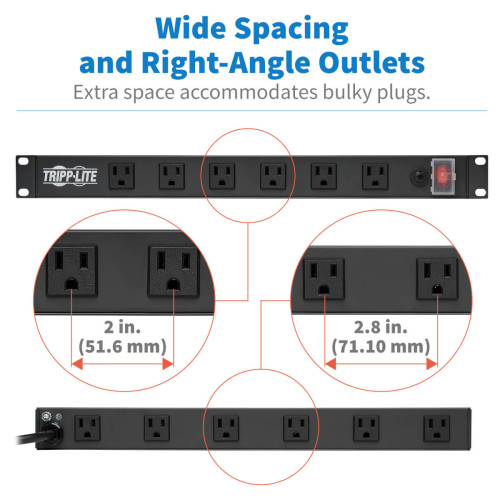

- Right-angle outlet orientation with ground pin at the bottom.
- Lighted power switch confirms power on/off status.
- Snap-in switch guard prevents accidental turn off.
- 15A electrical capacity with circuit breaker.
- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options.
- Uses one rack space (1U) in standard 19-in. rack ("zero U" mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment.
- 12 x NEMA5-15R output receptacles (6 front/6 rear).
- 15-ft. AC cord with NEMA5-15P plug.
- Right-angle outlet orientation with ground pin at the bottom.
- Lighted power switch confirms power on/off status.
- Snap-in switch guard prevents accidental turn off.
- 15A electrical capacity with circuit breaker.
Design | |
Country of origin | China |
Product colour | Black |
Features | |
Cable length | 4.5 m |
Rack capacity | 1U |
Logistics data | |
Master (outer) case gross weight | 14.4 kg |
Master (outer) case GTIN (EAN/UPC) | 10037332099409 |
Master (outer) case height | 254 mm |
Master (outer) case length | 528.3 mm |
Master (outer) case width | 355.6 mm |
Products per master (outer) case | 6 pc(s) |
Other features | |
Dimensions (WxDxH) | 444.5 x 114 x 444.5 mm |
Output connections | 12 x NEMA 5-15R |
Ports & interfaces | |
Input connection type | NEMA 5-15P |
Power | |
Nominal input voltage | 120 V |
Nominal output voltage | 120 V |
Weight & dimensions | |
Depth | 101.6 mm |
Height | 44.4 mm |
Package depth | 515.6 mm |
Package height | 236.2 mm |
Package weight | 2.41 kg |
Package width | 57.2 mm |
Weight | 2.09 kg |
Width | 482.6 mm |
Tripp Lite RS-1215-RA power distribution unit (PDU) 1U Black
- Brand: Eaton
- Product Code: RS-1215-RA
- Availability: In Stock
-
$74.73
