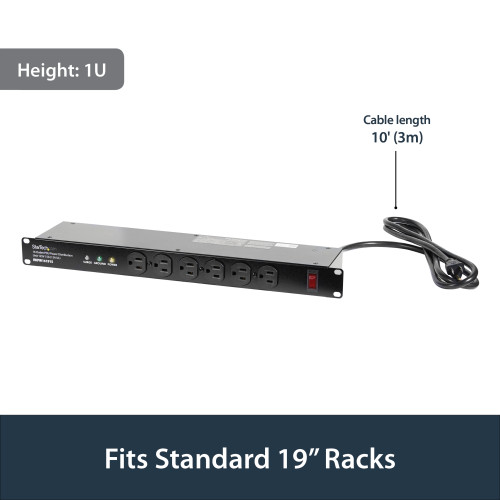

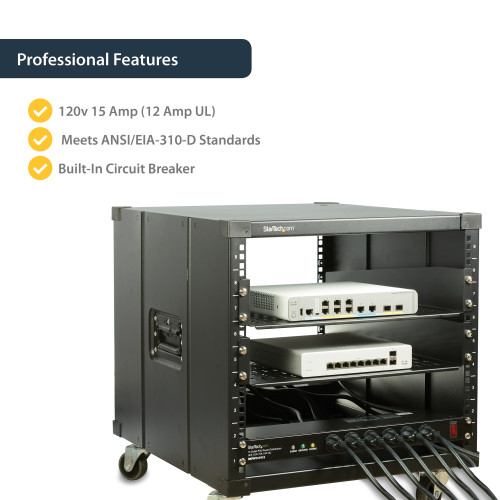

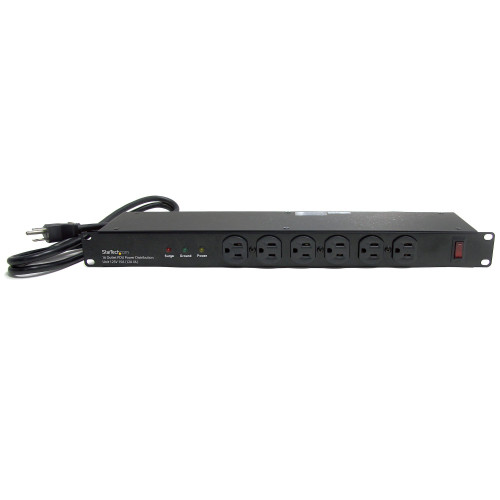

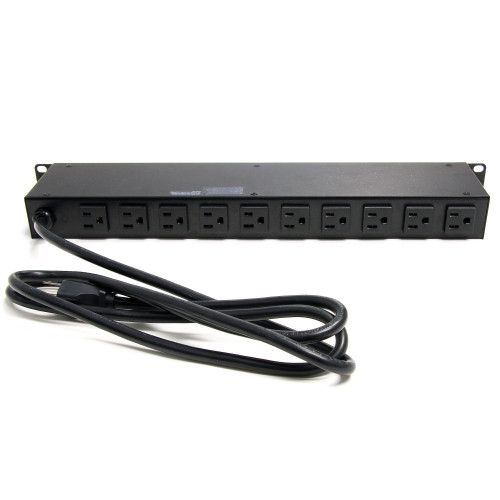

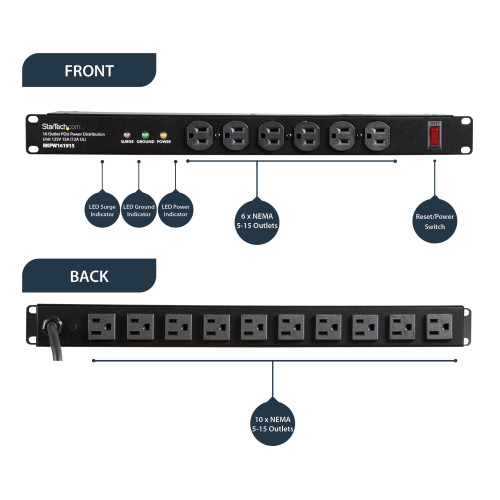

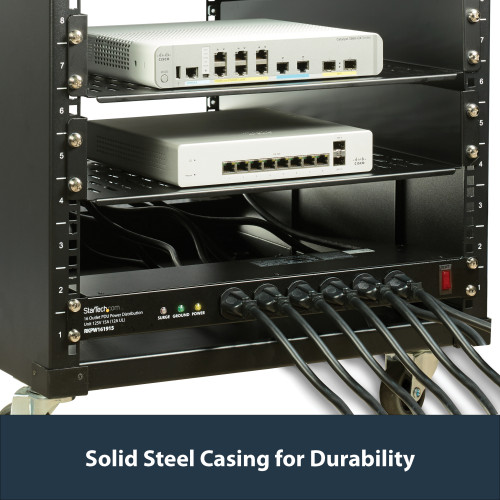

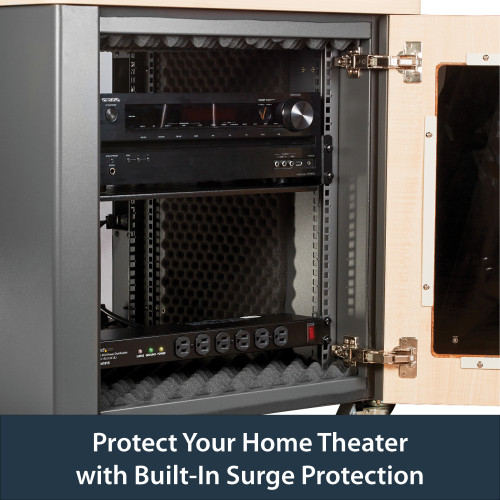

Organize and add additional power outlets to your rack solutionThis 16-outlet (120V 15A)(12A UL) Rack PDU delivers a cost-effective power distribution solution for your server rack/cabinet. The 1U PDU can be mounted horizontally in any server rack 4in in depth or greater, to provide sixteen 120V 15A power ports/outlets, and features a rugged steel casing to ensure maximum durability.The front of the PDU features two LEDs that indicate proper ground and surge detection, while enabling you to control the power state with an illuminated power/reset switch.To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in circuit breaker and reset switch, ensuring dependable performance of vital equipment.The StarTech.com Advantage
| Design | |
| Housing material | Steel |
| LED indicators | Y |
| Mounting | Horizontal |
| On/off switch | Y |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 1.8 m |
| Rack capacity | 1U |
| Surge protection | Y |
| Logistics data | |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 534 mm |
| Master (outer) case width | 530 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |

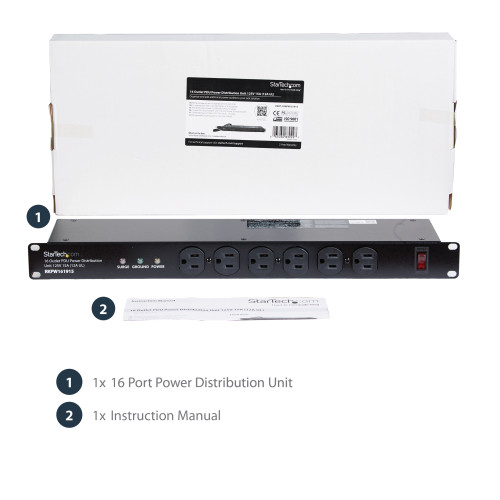

| Packaging content | |
| Manual | Y |
| Ports & interfaces | |
| Power plug | NEMA 5–15 |
| Power | |
| AC outlet types | NEMA 5–15 |
| AC outlets quantity | 16 AC outlet(s) |
| Load capacity | 1800 VA |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 15 A |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Output voltage | 125 V |
| Surge energy rating | 1800 J |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Depth | 483 mm |
| Height | 43 mm |
| Package depth | 550 mm |
| Package height | 82 mm |
| Package weight | 2.2 kg |
| Package width | 204 mm |
| Weight | 2.36 kg |
| Width | 95.5 mm |
StarTech.com Rackmount PDU with 16 Outlets and Surge Protection - 1U
- Brand: StarTech.com
- Product Code: RKPW161915
- Availability: In Stock
-
$76.06
