Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help network managers prevent overloads and plan for future growth. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

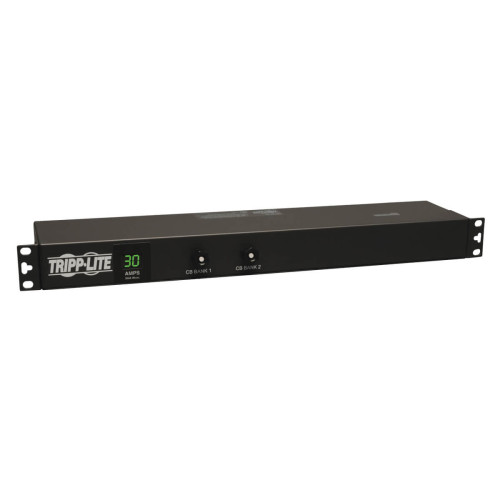

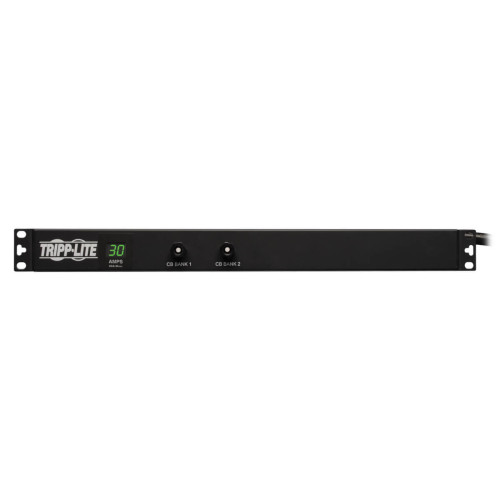

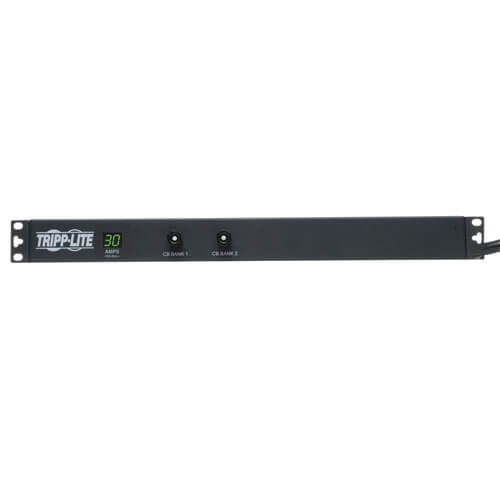

- Two-digit lighted meter reports total PDU input current in amps

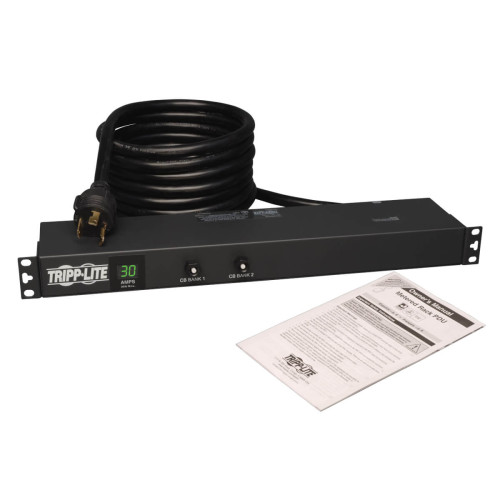

- Attached L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

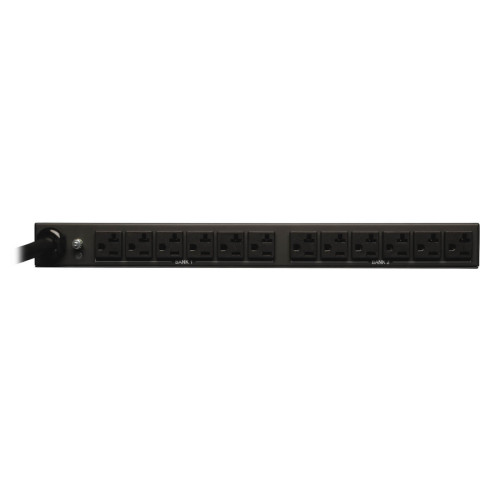

- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection

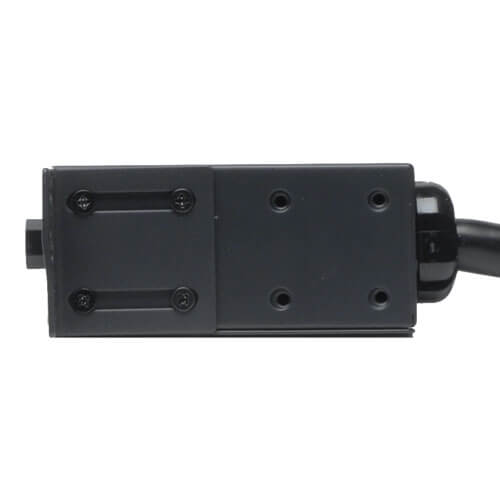

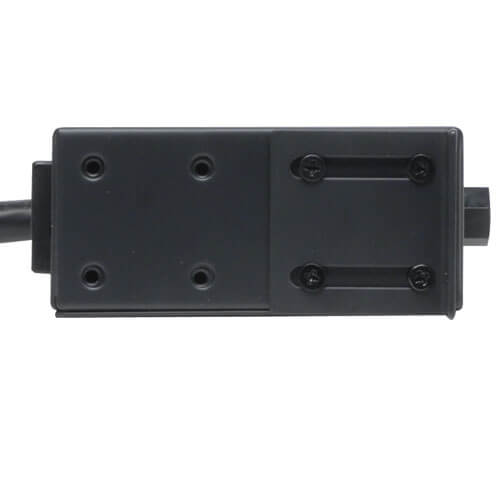

- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30TAA
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Two-digit lighted meter reports total PDU input current in amps
- Attached L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30TAA
| Design | |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 22.1 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332157673 |
| Master (outer) case height | 304.8 mm |
| Master (outer) case length | 523.2 mm |
| Master (outer) case width | 505.5 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 445 x 165 x 44.5 mm |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 12 AC outlet(s) |
| Maximum current | 30 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 165.1 mm |
| Height | 44.4 mm |
| Package depth | 513.1 mm |
| Package height | 279.4 mm |
| Package weight | 2.77 kg |
| Package width | 81.3 mm |
| Weight | 2.77 kg |
| Width | 444.5 mm |
Tripp Lite 2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15ft Cord, 1U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDUMH30
- Availability: In Stock
-
$329.52
