16/20A single phase 208/230V Local Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

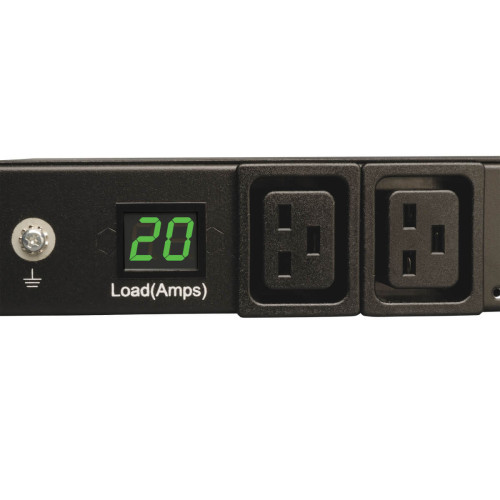

Built-in 2 digit visual meter continuously reports PDU load level in amps

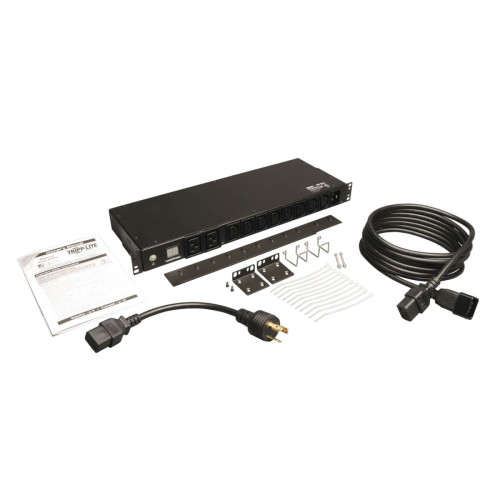

C20 inlet with C20 input cable and L6-20P adapter; 12-ft. (3.66 m) line cord
1U horizontal rackmount format installs in one rack space

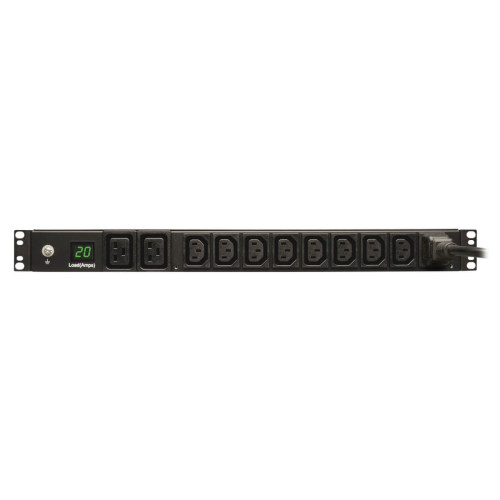

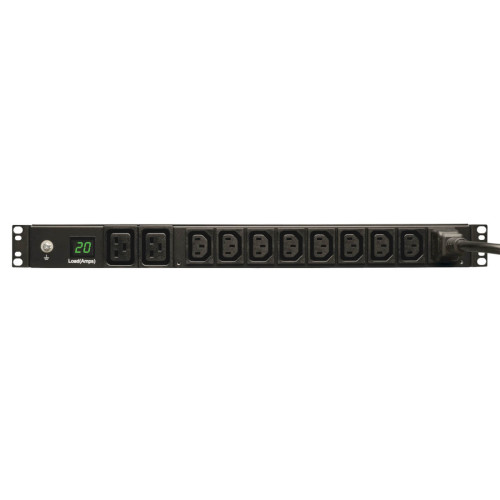

10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks

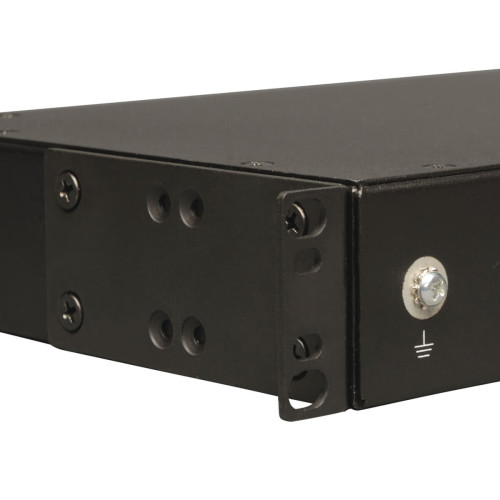

Back panel grounding lug
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Built-in 2 digit visual meter continuously reports PDU load level in amps
C20 inlet with C20 input cable and L6-20P adapter; 12-ft. (3.66 m) line cord
1U horizontal rackmount format installs in one rack space
10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
| Design | |
| Certification | UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950) |
| Country of origin | Taiwan |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 3.7 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 3.4 kg |
| Master (outer) case height | 55.9 mm |
| Master (outer) case length | 518.2 mm |
| Master (outer) case width | 294.6 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 444 x 165 x 28.7 mm |
| Ports & interfaces | |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 165.1 mm |
| Height | 44.4 mm |
| Package depth | 518.2 mm |
| Package height | 55.9 mm |
| Package weight | 3.4 kg |
| Package width | 294.6 mm |
| Weight | 3.08 kg |
| Width | 444.5 mm |
Tripp Lite PDUMH20HV 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA
- Brand: Tripp-Lite
- Product Code: PDUMH20HV
- Availability: In Stock
-
$206.23
