Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital current metering. Enables visual monitoring of PDU output current to preserve proper output balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

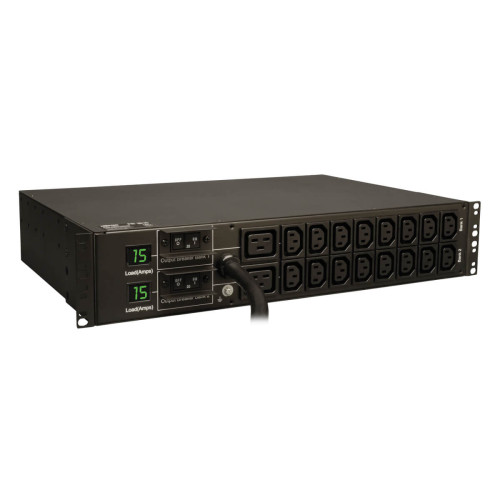

- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Set of two lighted meters report PDU output current in amps for each 9 outlet load bank

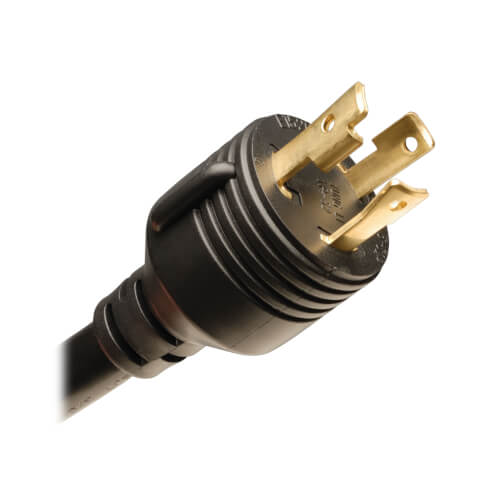

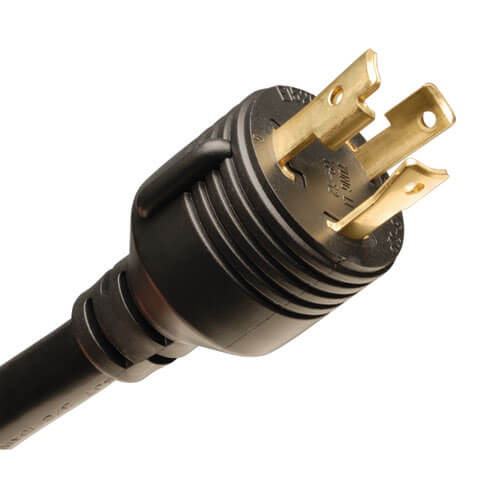

- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 2U horizontal rackmount format installs in two rack spaces

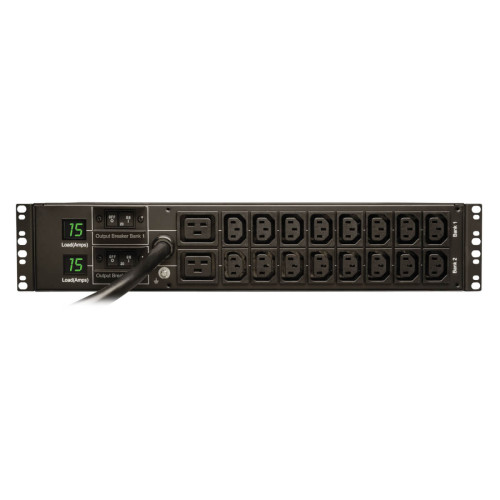

- 18 output receptacles (16 C13, 2 C19)
- Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering

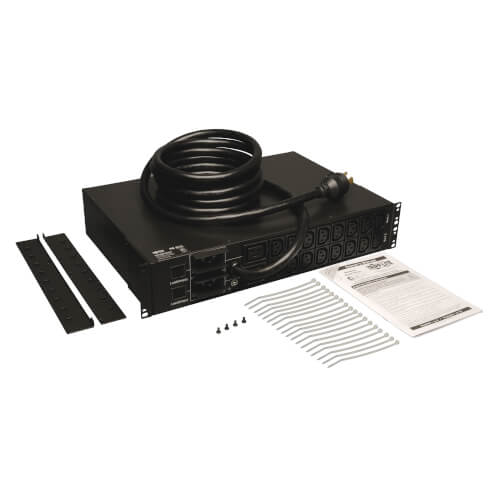

- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Cord retention brackets keep vital equipment plugs connected
- Grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30HVTAA
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Set of two lighted meters report PDU output current in amps for each 9 outlet load bank
- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 2U horizontal rackmount format installs in two rack spaces
- 18 output receptacles (16 C13, 2 C19)
- Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Cord retention brackets keep vital equipment plugs connected
- Grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30HVTAA
| Design | |
| Certification | UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
| Country of origin | Taiwan |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 3.65 m |
| Rack capacity | 2U |
| Logistics data | |
| Master (outer) case gross weight | 7.17 kg |
| Master (outer) case height | 198.1 mm |
| Master (outer) case length | 502.9 mm |
| Master (outer) case width | 424.2 mm |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 444 x 318 x 88 mm |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 18 AC outlet(s) |
| Maximum current | 30 A |
| Nominal input voltage | 208-240 V |
| Nominal output voltage | 208-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 317.5 mm |
| Height | 88.9 mm |
| Package depth | 502.9 mm |
| Package height | 198.1 mm |
| Package weight | 7.17 kg |
| Package width | 424.2 mm |
| Weight | 6.21 kg |
| Width | 444.5 mm |
Tripp Lite 5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDUMH30HV
- Availability: In Stock
-
$400.13
