Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

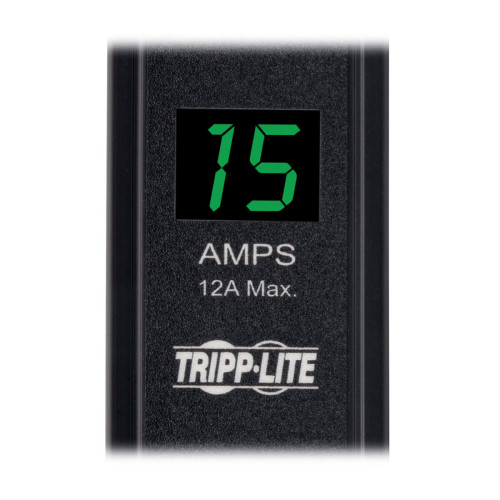

- Two-digit lighted meter reports combined total output current in amps

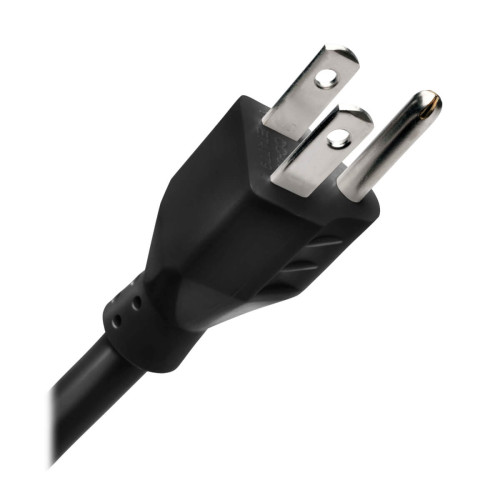

- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces

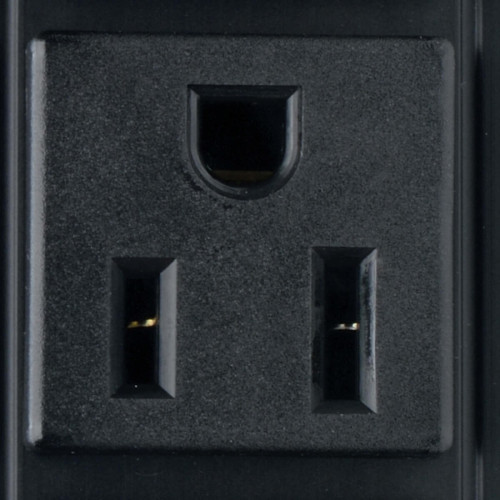

- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks

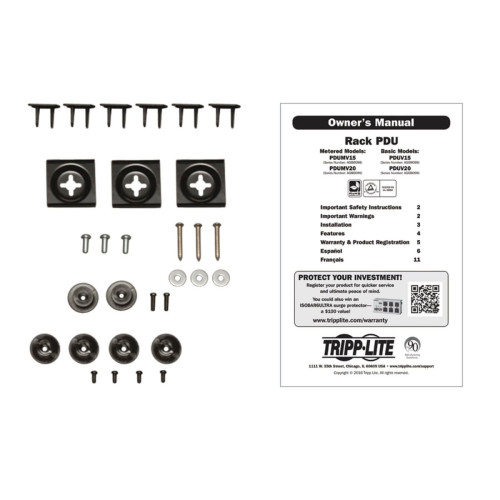

- Bolt-down installation brackets support installation in other racks and additional surfaces
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces
- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Country of origin | China |
| Housing material | Metal |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | White |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 12.8 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332132533 |
| Master (outer) case height | 214.9 mm |
| Master (outer) case length | 1335 mm |
| Master (outer) case width | 195.1 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 1219.2 x 38.1 x 76.2 mm |
| Weight (imperial) | 1.72 kg (3.8 lbs) |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 16 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 1231.1 mm |
| Package depth | 61 mm |
| Package height | 1315 mm |
| Package weight | 2.01 kg |
| Package width | 87.1 mm |
| Weight | 1.7 kg |
| Width | 38.1 mm |
Tripp Lite 1.4kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 51.5 in.
- Brand: Tripp-Lite
- Product Code: PDUMV15
- Availability: In Stock
-
$158.32
