Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

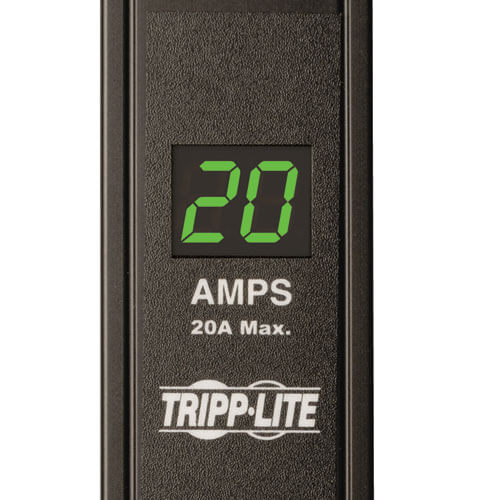

- Two-digit lighted meter reports combined total output current in amps

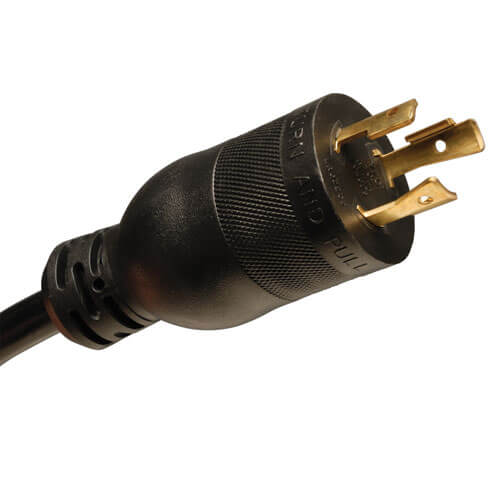

- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter

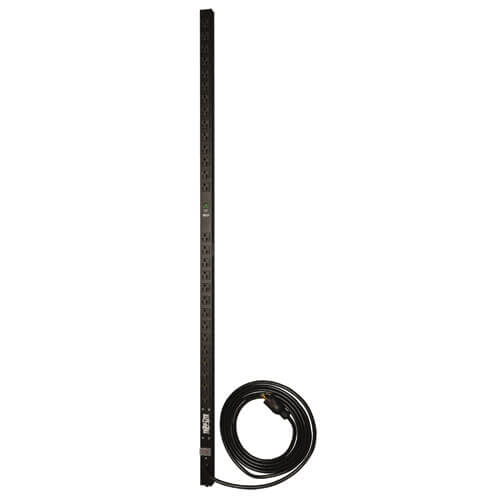

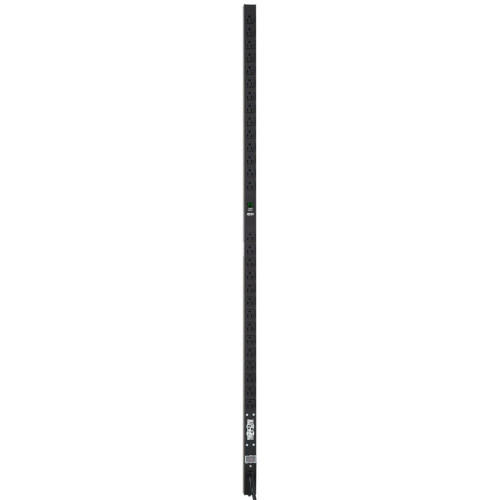

- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets
- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter
- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets
- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 20 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332132540 |
| Master (outer) case height | 200.7 mm |
| Master (outer) case length | 1625.6 mm |
| Master (outer) case width | 210.8 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 44.5 x 31.8 x 1524 mm |
| Ports & interfaces | |
| Input connection type | NEMA 5-20P, NEMA L5-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15, NEMA 5–20R |
| AC outlets quantity | 28 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 1535.9 mm |
| Package depth | 1605.3 mm |
| Package height | 61 mm |
| Package weight | 3.18 kg |
| Package width | 88.9 mm |
| Weight | 2.44 kg |
| Width | 38.1 mm |
Tripp Lite 1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
- Brand: Tripp-Lite
- Product Code: PDUMV20
- Availability: In Stock
-
$212.94
