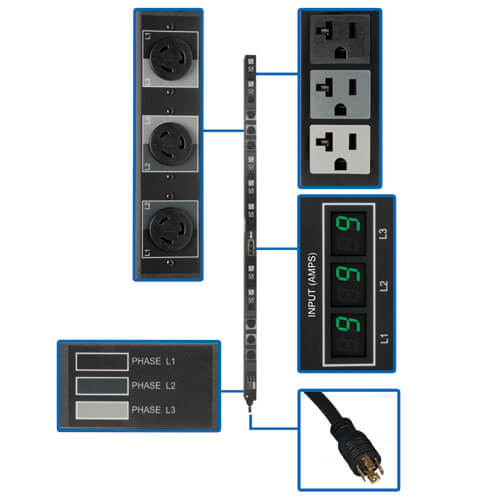

3-Phase Metered PDU, 5.7 kW, 27 outlets (21 5-15/20R, 6 L6-20R), 208/120V output, 6 ft NEMA L21-20P input connection

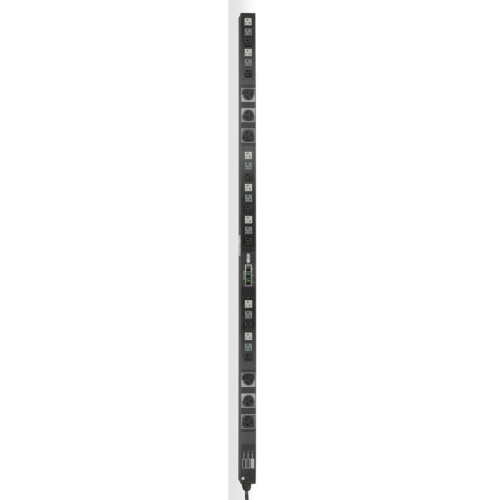

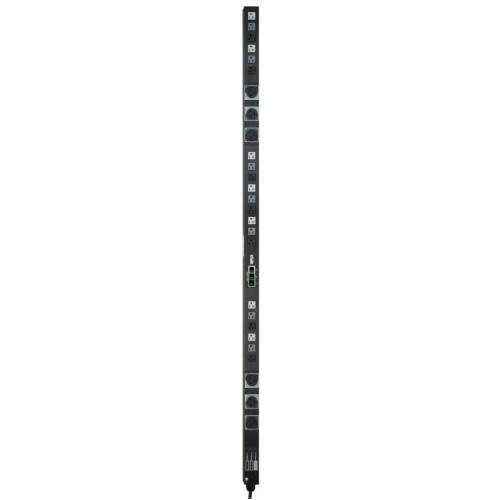

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

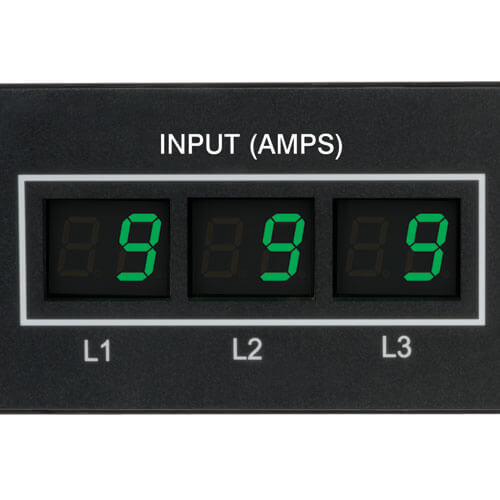

- Reports input current per-phase via built in current meters

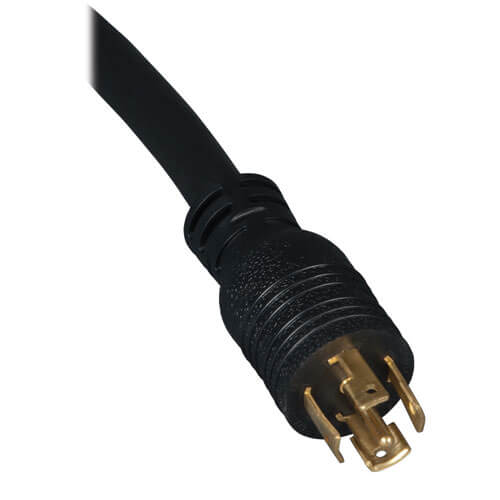

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

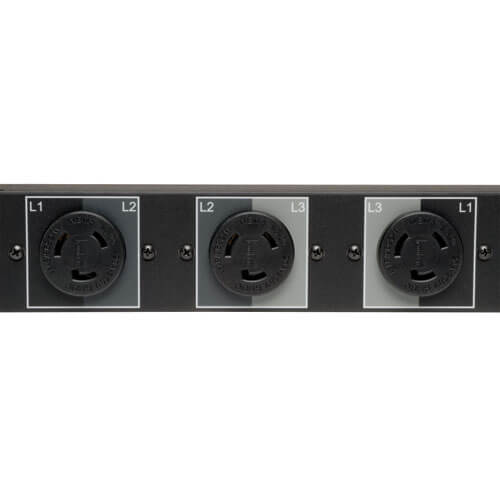

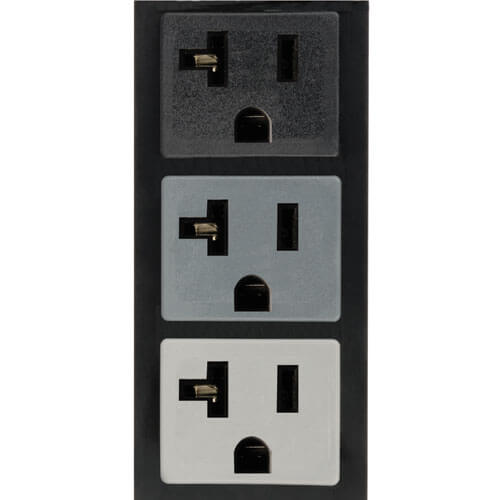

- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)

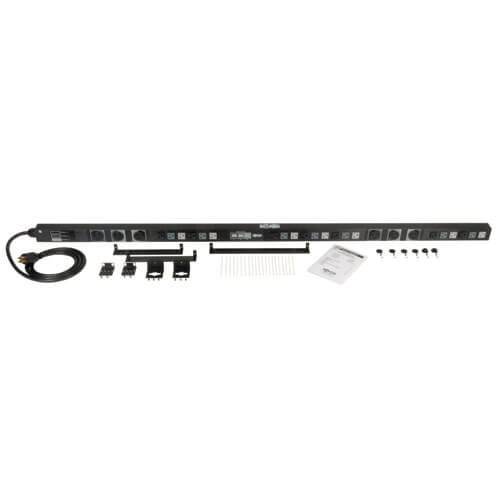

- Toolless button-mount installation; cord retention brackets included
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
- Toolless button-mount installation; cord retention brackets included
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1, NOM |
| Country of origin | Taiwan |
| Housing material | Steel |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 1.83 m |
| Rack capacity | 0U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Management features | |
| Monitoring | Current |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Other features | |
| Dimensions (WxDxH) | 49 x 56 x 1778 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 155 x 110 x 1925 mm |
| Ports & interfaces | |
| Power plug | NEMA L21-20P |
| Power | |
| AC input frequency | 60 Hz |
| AC outlets quantity | 27 AC outlet(s) |
| Load capacity | 5700 VA |
| Maximum current | 16 A |
| Maximum total current draw per phase | 9.2 A |
| Nominal input voltage | 208 V |
| Nominal output voltage | 120 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 49 mm |
| Height | 1778 mm |
| Package depth | 1943.1 mm |
| Package height | 132.1 mm |
| Package weight | 6.58 kg |
| Package width | 170.2 mm |
| Weight | 5.72 kg |
| Width | 55.9 mm |
Tripp Lite PDU3MV6L2120B power distribution unit (PDU) 27 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDU3MV6L2120B
- Availability: In Stock
-
$565.51
