208/230V Switched Power Distribution Unit / PDU with built-in web/network interface (12A 208V and 10A at 230V)
C14 power inlet accepts a wide variety of worldwide input cord options

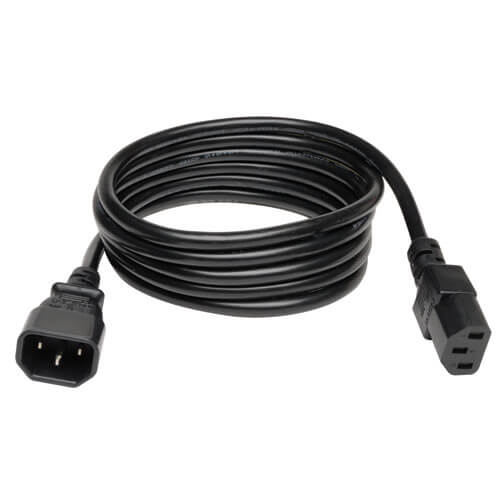

Includes 6.5 ft. / 2m C14 cable
1U horizontal rackmount form factor

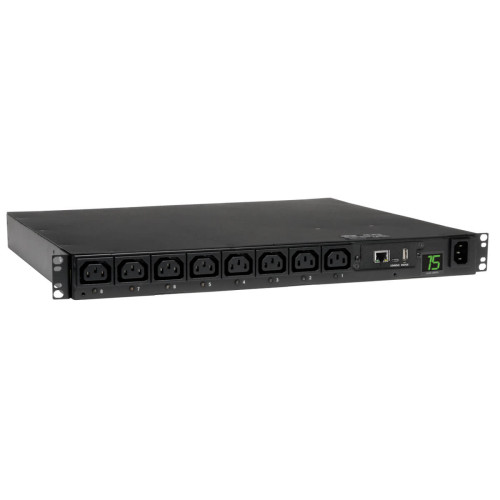

8 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
In-rack environmental reporting with optional temperature, humidity and contact-closure sensor options
10/100 Mbps auto-sensing

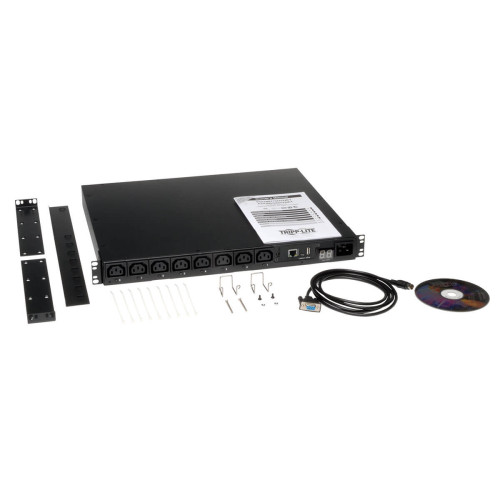

Included cord retention brackets keep vital network equipment plugged in and continuously powered
C14 power inlet accepts a wide variety of worldwide input cord options
Includes 6.5 ft. / 2m C14 cable
1U horizontal rackmount form factor
8 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
In-rack environmental reporting with optional temperature, humidity and contact-closure sensor options
10/100 Mbps auto-sensing
Included cord retention brackets keep vital network equipment plugged in and continuously powered
| Design | |
| Certification | UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950) |
| Country of origin | Taiwan |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Horizontal |
| PDU types | Switched |
| Product colour | Black |
| Display | |
| Display | LCD |
| Features | |
| Cable length | 2 m |
| Rack capacity | 1U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 439 x 376 x 28.7 mm |
| Ports & interfaces | |
| Power plug | C14 coupler |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 440.2 mm |
| Height | 43.7 mm |
| Package depth | 584.2 mm |
| Package height | 144.8 mm |
| Package weight | 5.99 kg |
| Package width | 525.8 mm |
| Weight | 4.04 kg |
| Width | 375.2 mm |
Tripp Lite PDUMH15HVNET 2.5kW Single-Phase 208/230V Switched PDU - LX Platform, 8 C13 Outlets, C14 Input 2m Cord, 1U Rack-Mount, TAA
- Brand: Tripp-Lite
- Product Code: PDUMH15HVNET
- Availability: In Stock
-
$457.51
