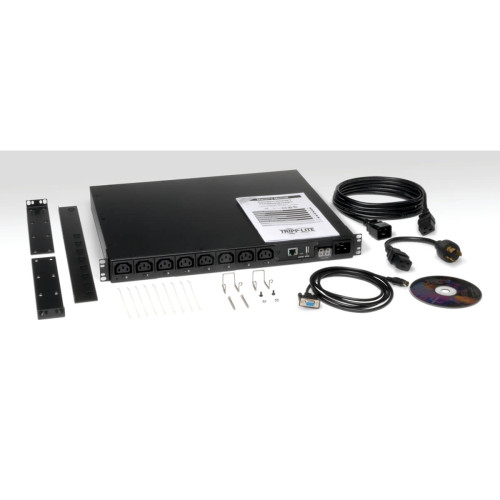

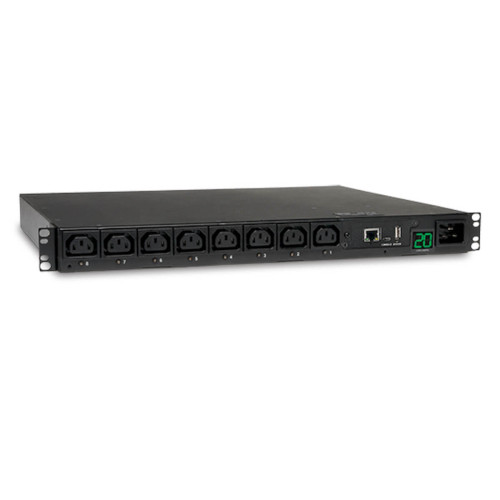

16/20A 230/208V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 16A continuous)

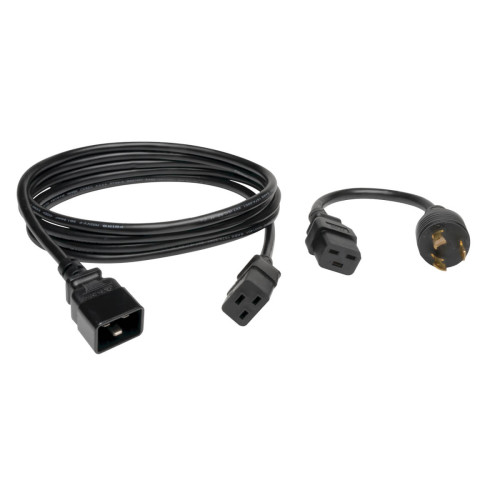

C20 inlet; 8.5 ft. / 2.6m C20 power cable with L6-20P plug adapter
8 switched C13 outlets
1U horizontal rackmount form factor
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage, frequency and loading information
Digital display reports load level information in amps
Supports user-specified alarm notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
C20 inlet; 8.5 ft. / 2.6m C20 power cable with L6-20P plug adapter
8 switched C13 outlets
1U horizontal rackmount form factor
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage, frequency and loading information
Digital display reports load level information in amps
Supports user-specified alarm notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
| Design | |
| Country of origin | Taiwan |
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Switched |
| Product colour | Black |
| Features | |
| Cable length | 2.6 m |
| Rack capacity | 1U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 439 x 376 x 28.7 mm |
| Ports & interfaces | |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 440.2 mm |
| Height | 43.7 mm |
| Package depth | 569 mm |
| Package height | 137.2 mm |
| Package weight | 6.53 kg |
| Package width | 525.8 mm |
| Weight | 4.08 kg |
| Width | 375.2 mm |
Tripp Lite PDUMH20HVNET 3.7kW Single-Phase 208/230V Switched PDU - LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-mount, TAA
- Brand: Tripp-Lite
- Product Code: PDUMH20HVNET
- Availability: In Stock
-
$624.12
