Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

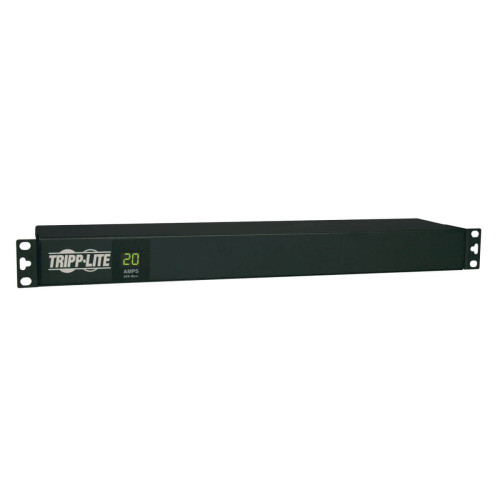

- Built-in 2 digit visual meter continuously reports PDU load level in amps
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- Includes 5-20P 20A 120V plug adapter
- 1U horizontal rackmount format installs in one rack space

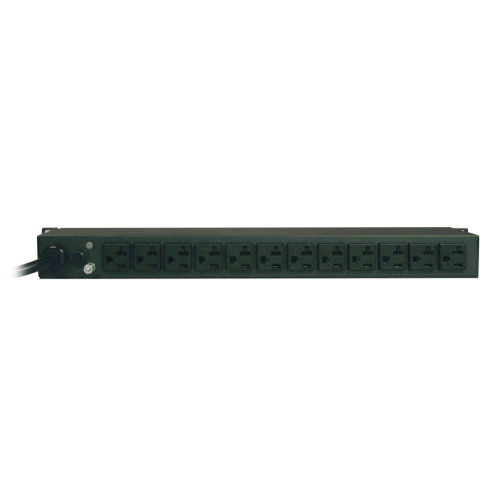

- 12 NEMA 5-15/20R outlets
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Built-in 2 digit visual meter continuously reports PDU load level in amps
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- Includes 5-20P 20A 120V plug adapter
- 1U horizontal rackmount format installs in one rack space
- 12 NEMA 5-15/20R outlets
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
| Design | |
| Certification | UL60950-1, CAN/CSA C22.2 No. 60950-1-03 |
| Country of origin | China |
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 17.7 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332145014 |
| Master (outer) case height | 256.5 mm |
| Master (outer) case length | 523.2 mm |
| Master (outer) case width | 353.1 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 445 x 114 x 44.5 mm |
| Ports & interfaces | |
| Input connection type | NEMA 5-20P, NEMA L5-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 12 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 114.3 mm |
| Height | 50.8 mm |
| Package depth | 518.2 mm |
| Package height | 233.7 mm |
| Package weight | 2.9 kg |
| Package width | 57.2 mm |
| Weight | 2.09 kg |
| Width | 508 mm |
Tripp Lite 1.92kW Single-Phase Metered PDU, 120V (12 5-15/20R), L5-20P / 5-20P, 110-127V Input, 15ft Cord, 1U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDUMH20
- Availability: In Stock
-
$170.37
