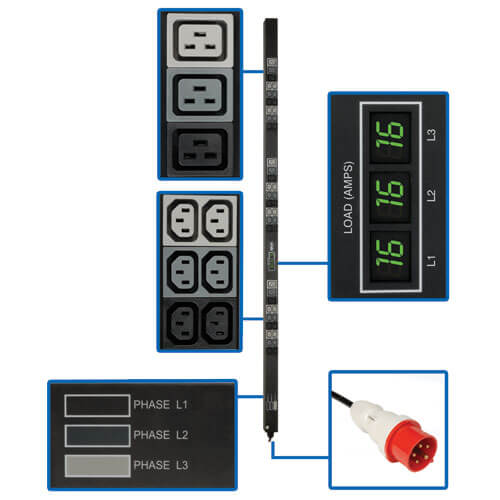

11.5kW Local Metered Power Distribution Unit (PDU)

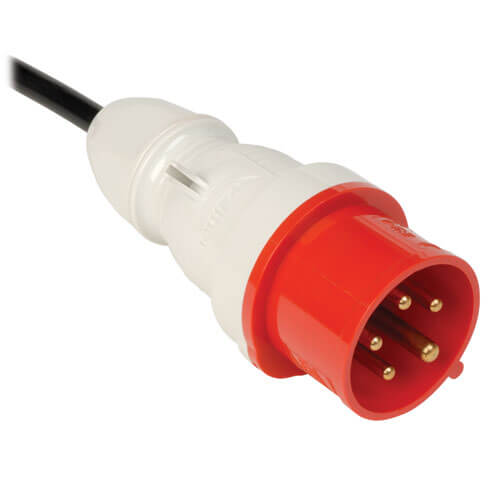

380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection

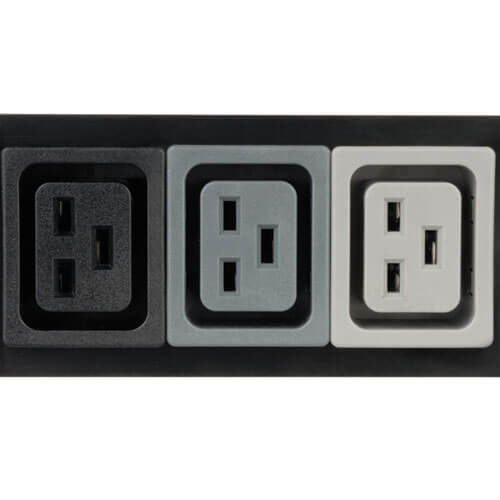

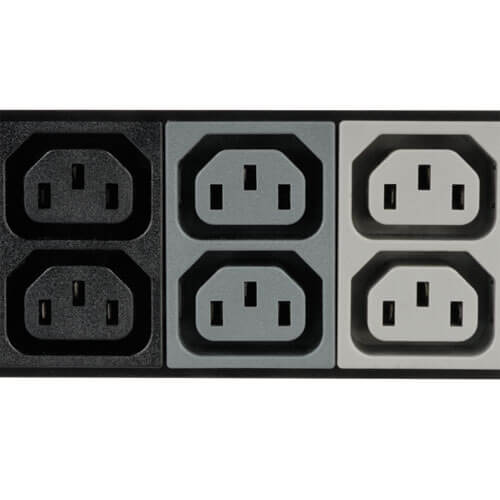

208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications

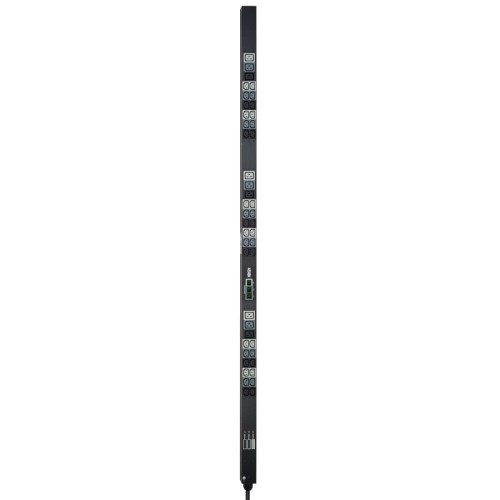

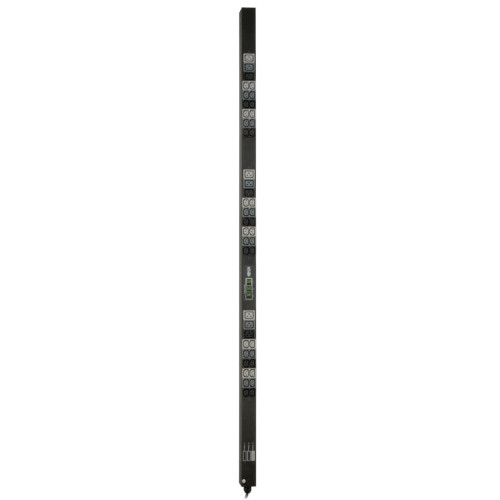

0U / 1778mm vertical rackmount installation supported

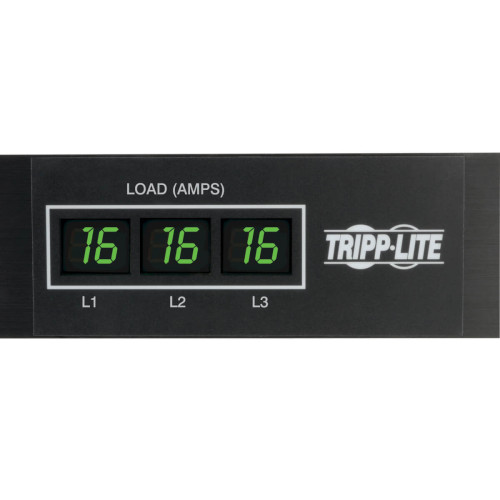

Outlets are arranged in 3 local metered 15 outlet load banks

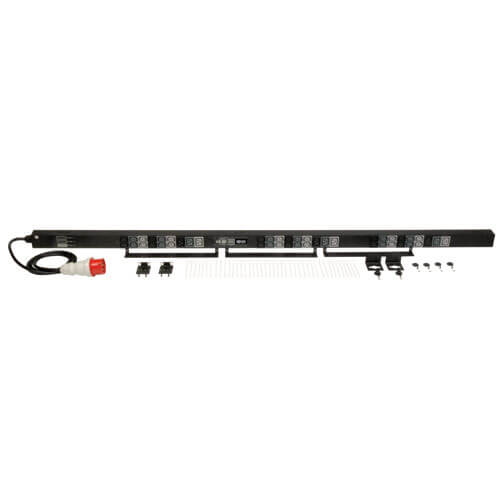

Included cord retention brackets keep vital network equipment plugged in and continuously powered

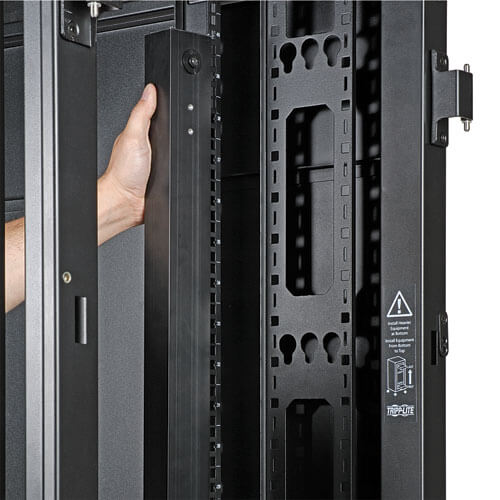

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
| Design | |
| Certification | UL, CSA, NOM, CE |
| Country of origin | Taiwan |
| Housing material | Steel |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 1.8 m |
| Rack capacity | 0U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Other features | |
| Dimensions (WxDxH) | 56 x 49 x 1778 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 109 x 1925 x 155 mm |
| Ports & interfaces | |
| Input connection type | IEC-309 16A RED (3P+N+E) |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 45 AC outlet(s) |
| Load capacity | 11500 VA |
| Maximum current | 16 A |
| Nominal input voltage | 380-415 V |
| Nominal output voltage | 220-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 49 mm |
| Height | 1778 mm |
| Package depth | 1930.4 mm |
| Package height | 165.1 mm |
| Package weight | 6.85 kg |
| Package width | 139.7 mm |
| Weight | 4.08 kg |
| Width | 55.9 mm |
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
- Brand: Tripp-Lite
- Product Code: PDU3XMV6G20
- Availability: In Stock
-
$586.67
