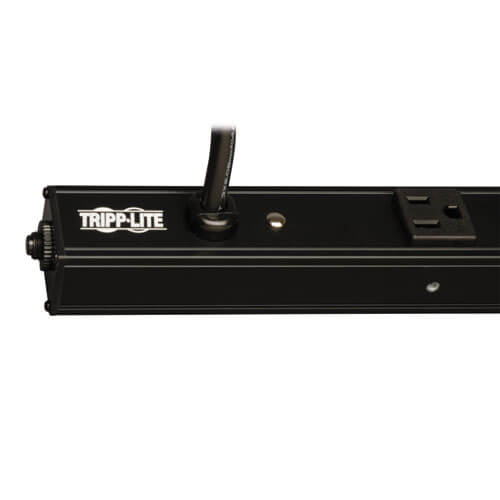

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

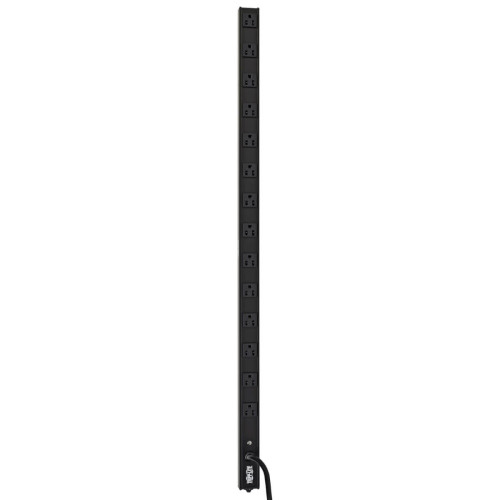

- 0U 36in / 91.4cm vertical rackmount format PDU installs using no rack spaces

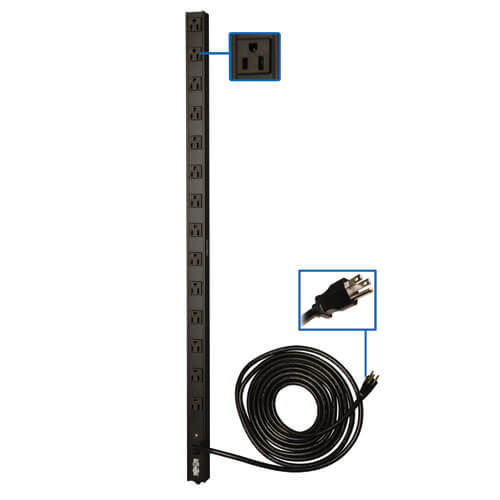

- 14 NEMA 5-15R outlets

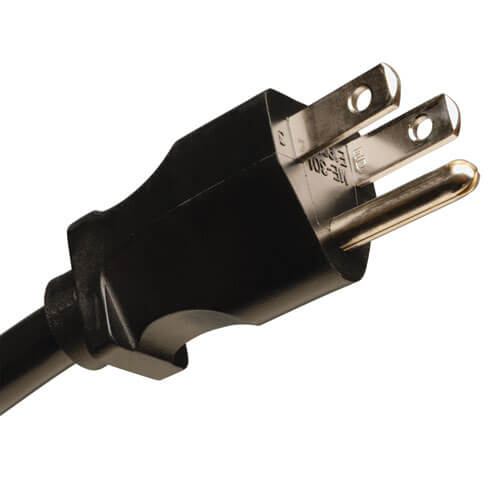

- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 15A resettable circuit breaker
- Switch-free design prevents accidental shutoff
- Toolless mounting buttons enable simple installation in compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks

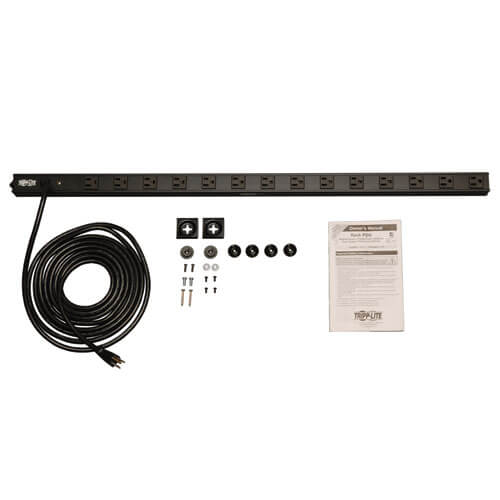

- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
- 15A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- 0U 36in / 91.4cm vertical rackmount format PDU installs using no rack spaces
- 14 NEMA 5-15R outlets
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 15A resettable circuit breaker
- Switch-free design prevents accidental shutoff
- Toolless mounting buttons enable simple installation in compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
| Design | |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Country of origin | China |
| Housing material | Metal |
| Mounting | Vertical |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 20.6 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332144512 |
| Master (outer) case height | 1030 mm |
| Master (outer) case length | 275.1 mm |
| Master (outer) case width | 294.9 mm |
| Products per master (outer) case | 12 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 31.8 x 44.5 x 914.4 mm |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 14 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 926.3 mm |
| Package depth | 61 mm |
| Package height | 1009.9 mm |
| Package weight | 1.81 kg |
| Package width | 91.9 mm |
| Weight | 1.39 kg |
| Width | 38.1 mm |
Tripp Lite 1.44kw Single-Phase Basic PDU, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 0U Vertical
- Brand: Tripp-Lite
- Product Code: PDUV15
- Availability: In Stock
-
$138.69
