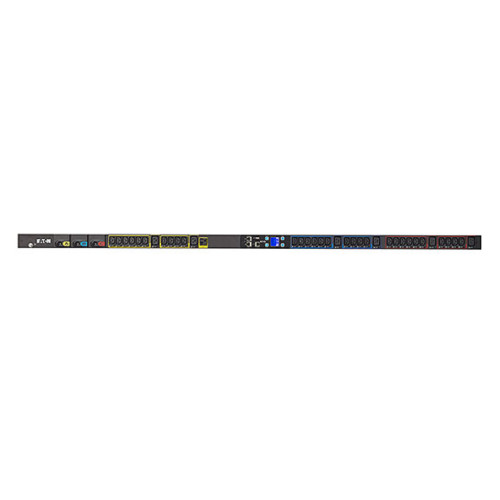

• Eaton EMI102-10 power distribution unit (PDU) 30 AC outlet(s) 38U-A Black
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Design
LED indicators Y
Mounting Vertical
PDU types Monitored
Product colour Black
Display
Display LCD
Features
Cable length 3 m
Rack capacity 38U-A
Other features
Dimensions (WxDxH) 52.07 x 53.34 x 1689.1 mm
Packaging data
Package dimensions (WxDxH) 195.58 x 236.22 x 1971 mm
Ports & interfaces
Power plug NEMA L5-30P
Power
AC input frequency 50 - 60 Hz
AC outlet types NEMA 5–20R
AC outlets quantity 30 AC outlet(s)
Maximum current 24 A
Nominal input voltage 120 V

Write a review

Please login or register to review

Eaton EMI102-10 power distribution unit (PDU) 30 AC outlet(s) 38U-A Black

  • Brand: Eaton
  • Product Code: EMI102-10
  • Availability: In Stock
  • $907.66
