Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Design | |
LED indicators | Y |
Mounting | Vertical |
PDU types | Monitored |
Product colour | Black |
Display | |
Display | LCD |
Features | |
Cable length | 3 m |
Rack capacity | 38U-A |
Other features | |
Dimensions (WxDxH) | 52.07 x 53.34 x 1689.1 mm |
Output connections | 36 x IEC 60320 C13 Grip & 6 x IEC 60320 C19 Grip |
Packaging data | |
Package dimensions (WxDxH) | 195.58 x 236.22 x 1971 mm |
Ports & interfaces | |
Power plug | NEMA L6-30P |
Power | |
AC input frequency | 50 - 60 Hz |
AC outlet types | C13 coupler, C19 coupler |
AC outlets quantity | 42 AC outlet(s) |
Maximum current | 24 A |
Nominal input voltage | 200-240 V |

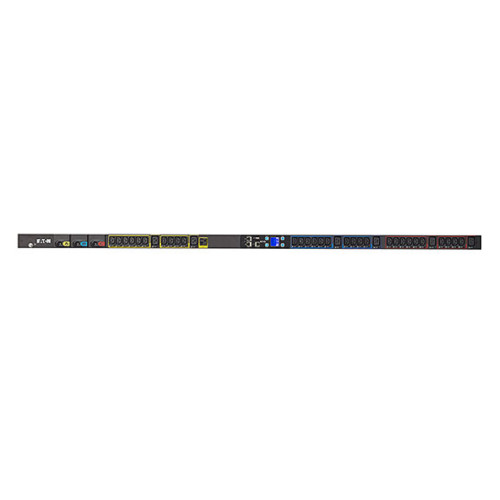

Eaton EMI104-10 power distribution unit (PDU) 42 AC outlet(s) 38U-A Black
- Brand: Eaton
- Product Code: EMI104-10
- Availability: In Stock
-
$999.26
