Rack PDU 2G, Switched, ZeroU, 20A, 100-120V, (24) 5-20R
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
| Design | |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Mounting | Horizontal/Vertical |
| PDU types | Switched |
| Product colour | Black |
| Features | |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Other features | |
| Dimensions (WxDxH) | 55 x 46 x 1791 mm |
| Packaging content | |
| Packaging content | Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
| Packaging data | |
| Package dimensions (WxDxH) | 164 x 108 x 2006 mm |
| Ports & interfaces | |
| Input connection type | NEMA L5-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–20R |
| AC outlets quantity | 24 AC outlet(s) |
| Load capacity | 1920 VA |
| Maximum current | 20 A |
| Nominal input voltage | 120 V |
| Output voltage | 120 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package weight | 8.6 kg |
| Weight | 6.52 kg |

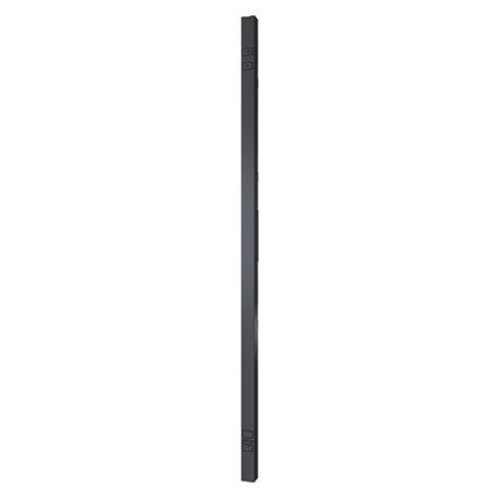

APC Rack PDU 2G power distribution unit (PDU) 24 AC outlet(s) Black
- Brand: APC
- Product Code: AP8930
- Availability: In Stock
-
$1,182.23
