Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03 |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Y |

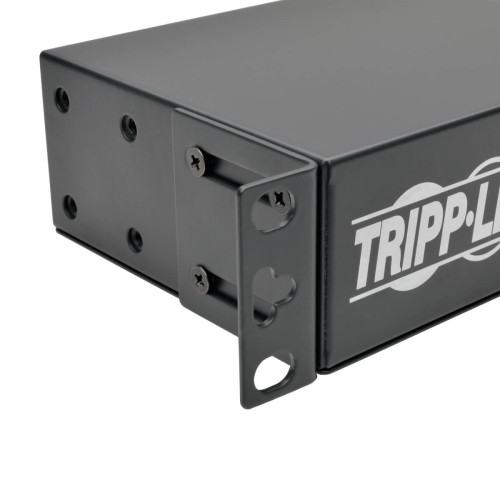

| Mounting | Horizontal |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LCD |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 14.6 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332183238 |
| Master (outer) case height | 247.6 mm |
| Master (outer) case length | 349.2 mm |
| Master (outer) case width | 527 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 444.5 x 95 x 44.5 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 520.7 x 254 x 57.2 mm |
| Ports & interfaces | |

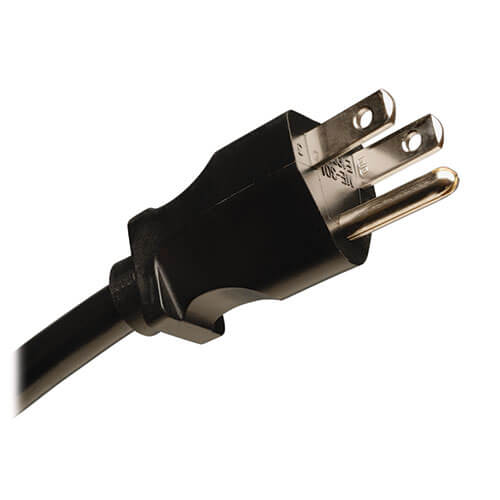

| Power plug | NEMA 5–15P |
| Power | |
| AC input frequency | 50 - 60 Hz |

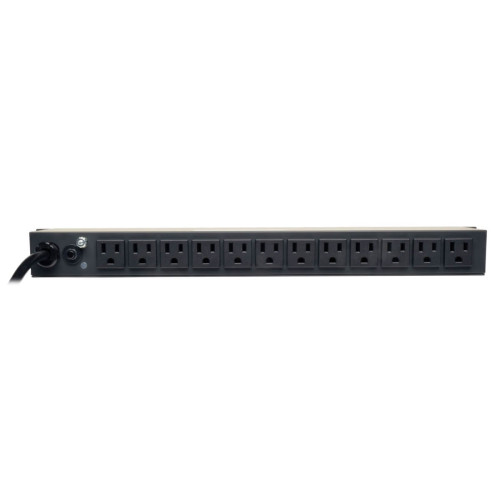

| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 13 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 95.2 mm |
| Height | 44.4 mm |
| Package depth | 254 mm |
| Package height | 57.2 mm |
| Package weight | 2.36 kg |
| Package width | 520.7 mm |
| Weight | 2.09 kg |
| Width | 439.4 mm |

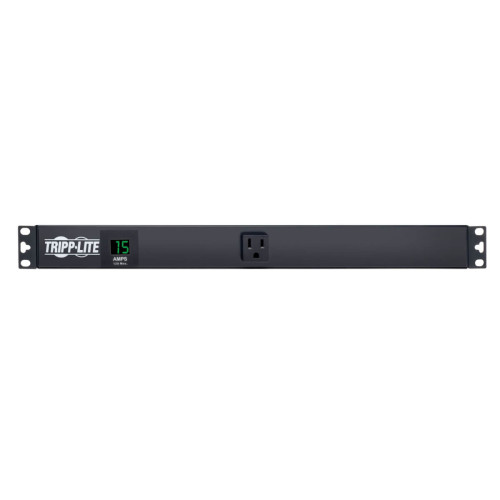

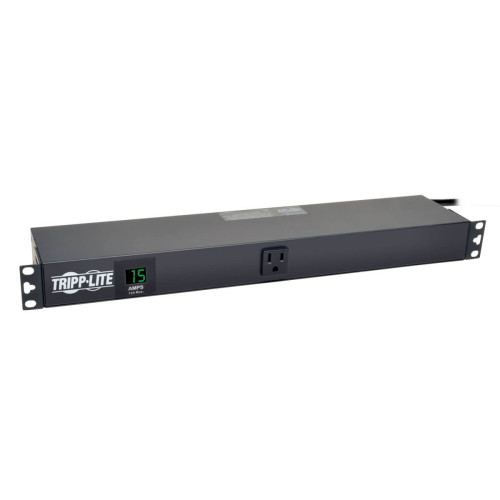

Tripp Lite PDUMH15-RA power distribution unit (PDU) 13 AC outlet(s) 1U Black
- Brand: Tripp-Lite
- Product Code: PDUMH15-RA
- Availability: In Stock
-
$130.02
