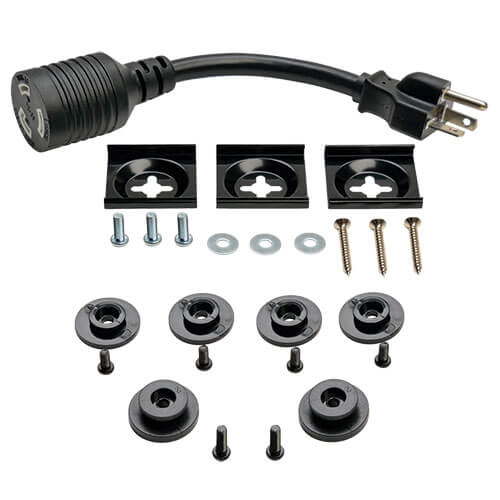

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |

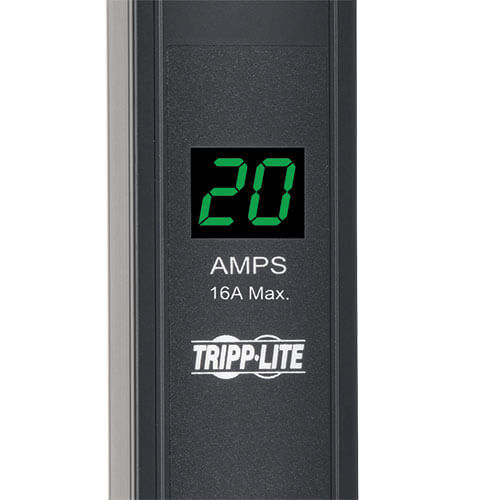

| Display | LED |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 14.3 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332182828 |
| Master (outer) case height | 1000 mm |
| Master (outer) case length | 214.9 mm |
| Master (outer) case width | 359.9 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 44.5 x 31.8 x 914 mm |

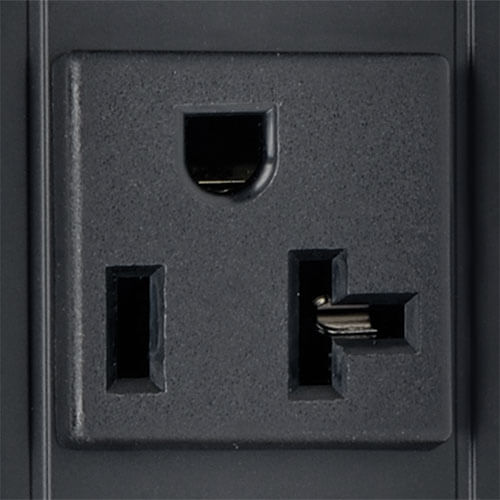

| Output connections | 14 x 5-15/20R |
| Packaging data | |
| Package dimensions (WxDxH) | 989 x 172.2 x 66 mm |
| Ports & interfaces | |

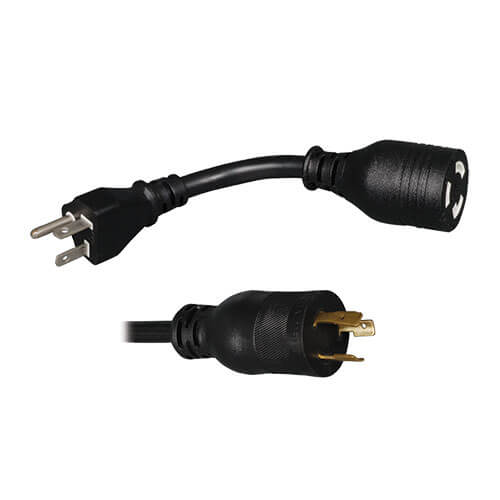

| Input connection type | NEMA 5-20P, NEMA L5-20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlets quantity | 14 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 926.3 mm |
| Package depth | 61 mm |
| Package height | 979.9 mm |
| Package weight | 2.22 kg |
| Package width | 168.9 mm |
| Weight | 1.9 kg |
| Width | 38.1 mm |

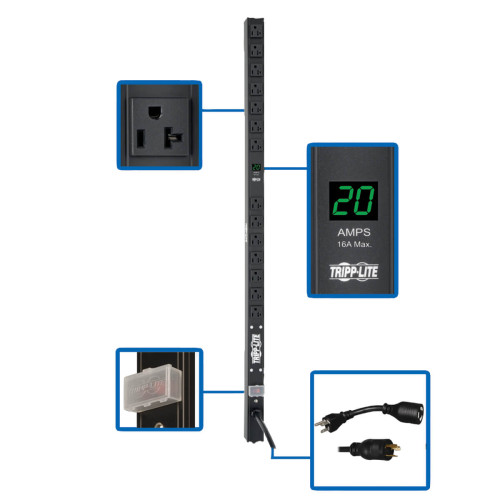

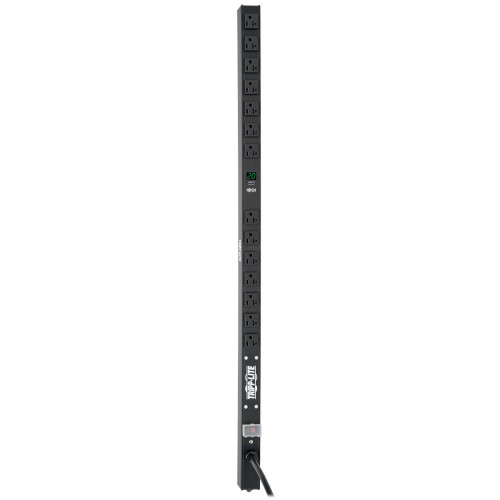

Tripp Lite PDUMV20-36 power distribution unit (PDU) 14 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDUMV20-36
- Availability: In Stock
-
$199.44
