Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Design
Certification	UL60950-1 (USA) CAN/CSA C22.2 No. 60950-1-03
Country of origin	China
Housing material	Metal
LED indicators	Y
Mounting	Horizontal
PDU types	Metered
Product colour	Black
Display
Display	LCD
Features
Cable length	1.8 m
Rack capacity	1U
Logistics data
Master (outer) case gross weight	14.4 kg
Master (outer) case GTIN (EAN/UPC)	10037332183252
Master (outer) case height	254 mm
Master (outer) case length	525.8 mm
Master (outer) case width	353.1 mm
Products per master (outer) case	6 pc(s)
Operational conditions
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-15 - 50 °C
Other features
Dimensions (WxDxH)	445 x 95.3 x 44.5 mm
Output connections	12 x 5-15/20R
Packaging data
Package dimensions (WxDxH)	521 x 254 x 57 mm
Ports & interfaces

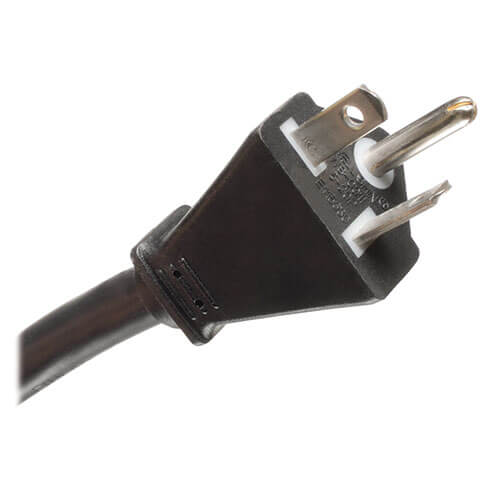

Input connection type	NEMA 5-20P / L5-20
Power
AC outlets quantity	12 AC outlet(s)
Maximum current	20 A
Nominal input voltage	100-127 V
Nominal output voltage	100-127 V
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Depth	95.2 mm
Height	44.4 mm
Package depth	520.7 mm
Package height	55.9 mm
Package weight	2.27 kg
Package width	236.2 mm
Weight	2.09 kg
Width	439.4 mm

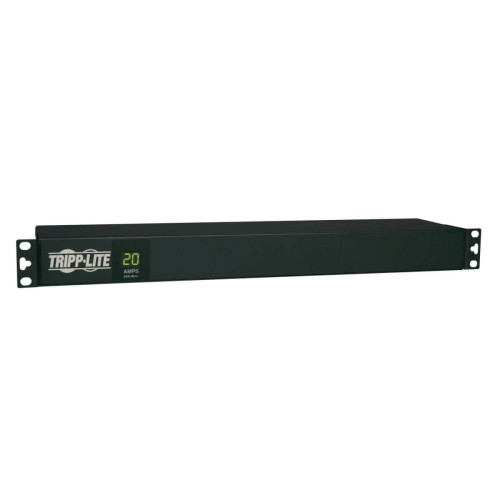

Tripp Lite PDUMH20-6 power distribution unit (PDU) 12 AC outlet(s) 1U Black

Brand: Tripp-Lite
Product Code: PDUMH20-6
Availability: In Stock

$184.37

Qty

0 reviews / Write a review
