Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1, CSA60950-1, NOM |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 18.5 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332182859 |
| Master (outer) case height | 694.9 mm |
| Master (outer) case length | 275.1 mm |
| Master (outer) case width | 430 mm |
| Products per master (outer) case | 12 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Dimensions (WxDxH) | 44.5 x 32 x 610 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 683 x 141 x 56 mm |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 15 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 621.5 mm |
| Package depth | 61 mm |
| Package height | 674.9 mm |
| Package weight | 1.46 kg |
| Package width | 136.9 mm |
| Weight | 1.24 kg |
| Width | 38.1 mm |

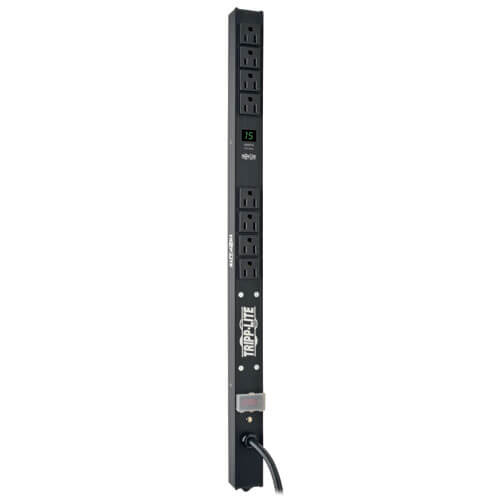

Tripp Lite PDUMV15-24 power distribution unit (PDU) 8 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDUMV15-24
- Availability: In Stock
-
$146.67
