This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.
3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU
Two-digit lighted meter reports combined total output current in amps

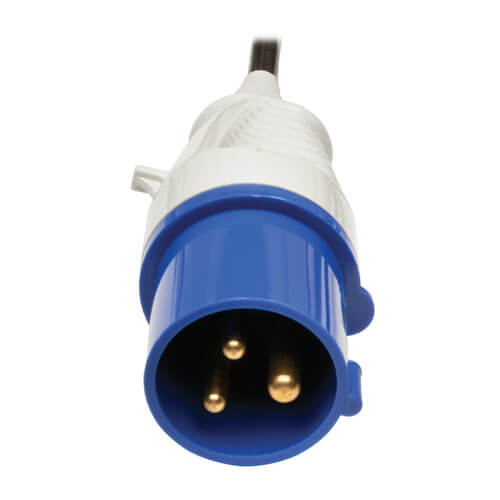

10ft / 3m input cable with Blue IEC309 16A input plug

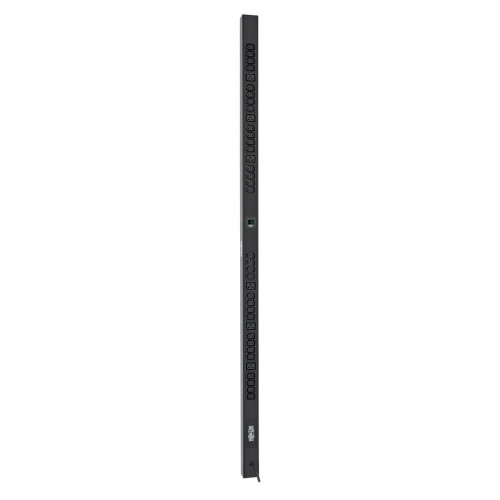

0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces

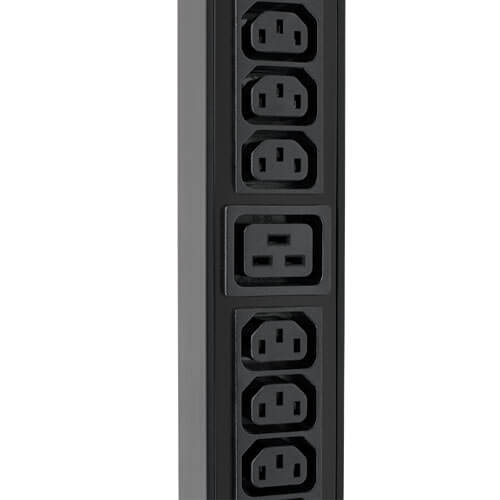

38 total outlets (6 C19, 32 C13)
Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
Toolless installation supported in button-mount compatible equipment racks

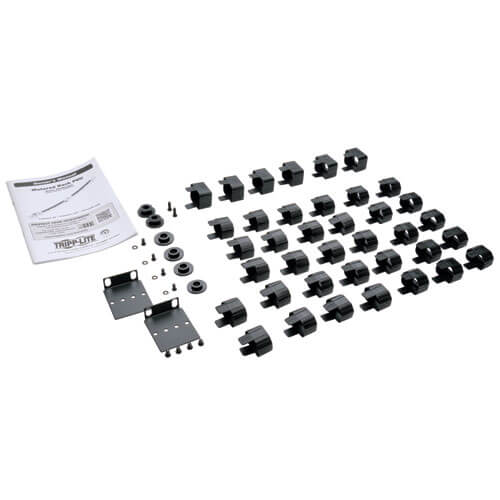

Bolt-down installation brackets support installation in other racks and additional surfaces
3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU
Two-digit lighted meter reports combined total output current in amps
10ft / 3m input cable with Blue IEC309 16A input plug
0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
38 total outlets (6 C19, 32 C13)
Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
| Certification | IEC 60950-1, GOST |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 3 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 23 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332182873 |
| Master (outer) case height | 177.8 mm |
| Master (outer) case length | 1668.8 mm |
| Master (outer) case width | 419.1 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Other features | |
| Dimensions (WxDxH) | 57 x 95 x 1620 mm |
| Output connections | 32 x C13 & 6 x C19 |
| Packaging data | |
| Package dimensions (WxDxH) | 76 x 127 x 1648 mm |
| Ports & interfaces | |
| Power plug | IEC309 |
| Power | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 38 AC outlet(s) |
| Maximum current | 16 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 95.2 mm |
| Height | 1619.2 mm |
| Package depth | 1661.2 mm |
| Package height | 73.7 mm |
| Package weight | 3.58 kg |
| Package width | 129.5 mm |
| Weight | 2.41 kg |
| Width | 57.2 mm |
Tripp Lite PDUMV16HV 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (32-C13, 6-C19), IEC309 16A Blue 16A, 0U Vertical
- Brand: Tripp-Lite
- Product Code: PDUMV16HV
- Availability: In Stock
-
$350.25
