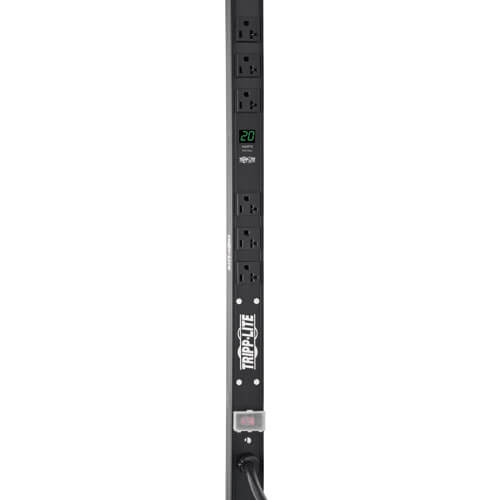

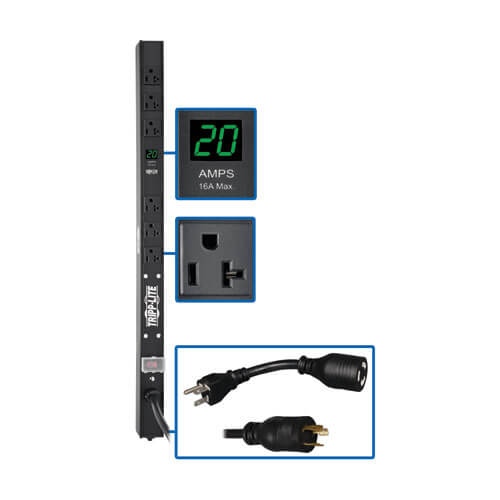

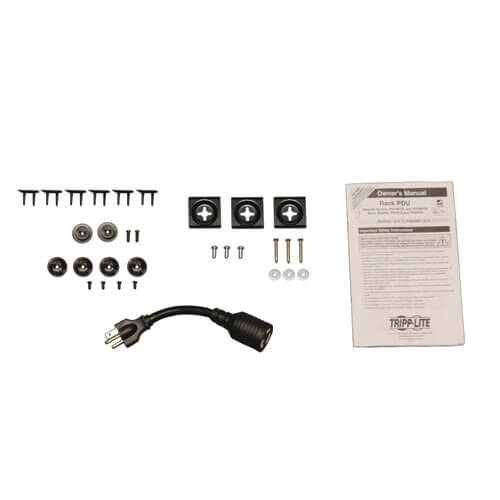

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | UL60950-1, UL/CSA60950-1, NOM, FCC Class A |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 4.6 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 23.3 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332182842 |
| Master (outer) case height | 694.9 mm |
| Master (outer) case length | 275.1 mm |
| Master (outer) case width | 525 mm |
| Products per master (outer) case | 12 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 44.5 x 31.8 x 610 mm |

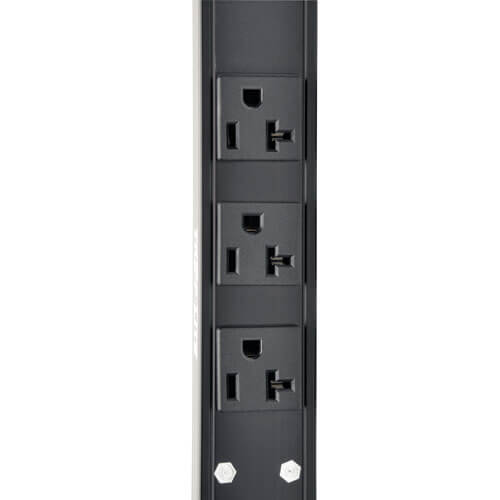

| Output connections | 6 x NEMA 5-15/20R |
| Packaging data | |
| Package dimensions (WxDxH) | 683.5 x 172.2 x 66 mm |
| Ports & interfaces | |

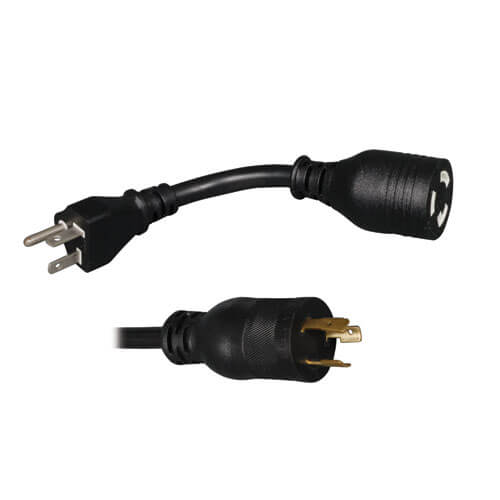

| Input connection type | L5-20P/5-20P |
| Power plug | NEMA L5-20P |
| Power | |
| AC outlets quantity | 6 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 41.7 mm |
| Height | 621.5 mm |
| Package depth | 673.1 mm |
| Package height | 55.9 mm |
| Package weight | 2.86 kg |
| Package width | 157.5 mm |
| Weight | 1.6 kg |
| Width | 38.1 mm |
Tripp Lite PDUMV20-24 power distribution unit (PDU) 6 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDUMV20-24
- Availability: In Stock
-
$183.50
