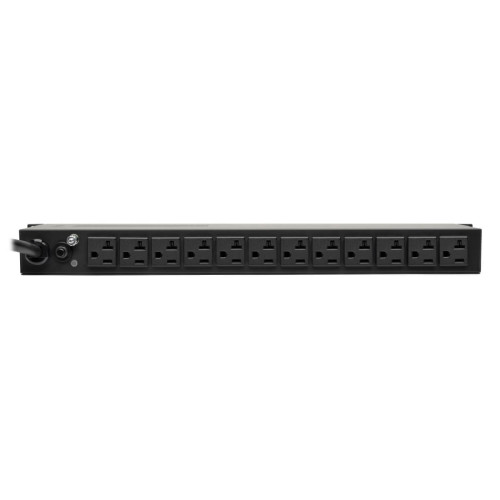

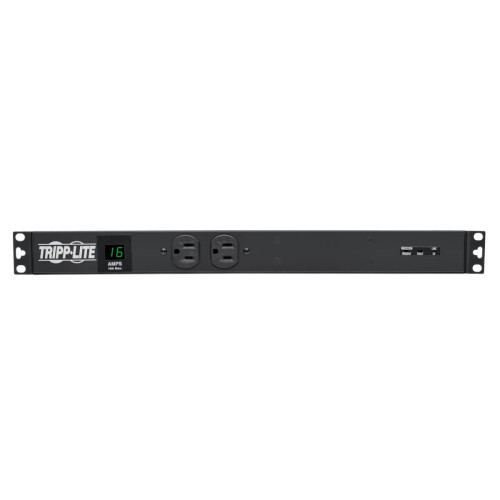

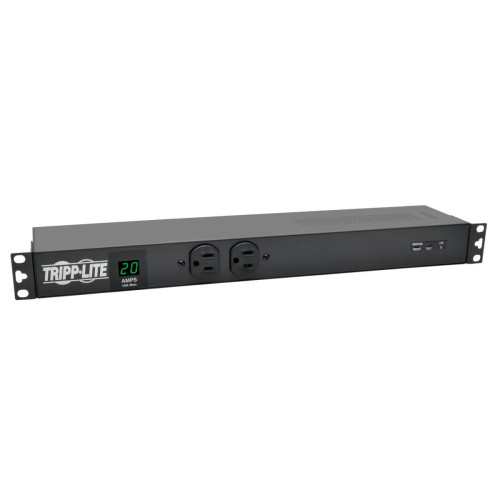

Tripp Lite Metered PDU / Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of 3 front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Design
Certification	UL1449 CSA
Country of origin	China
Housing material	Metal
LED indicators	Y
Mounting	Horizontal
PDU types	Metered
Product colour	Black
Display
Display	LED
Features
Cable length	4.57 m
Rack capacity	1U
Logistics data
Master (outer) case gross weight	10.1 kg
Master (outer) case GTIN (EAN/UPC)	10037332185706
Master (outer) case height	247.6 mm
Master (outer) case length	349.2 mm
Master (outer) case width	527 mm
Products per master (outer) case	6 pc(s)
Operational conditions
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-15 - 50 °C
Other features
Dimensions (WxDxH)	444.5 x 114.3 x 44.5 mm
Packaging data
Package dimensions (WxDxH)	520.7 x 254 x 57.2 mm
Ports & interfaces

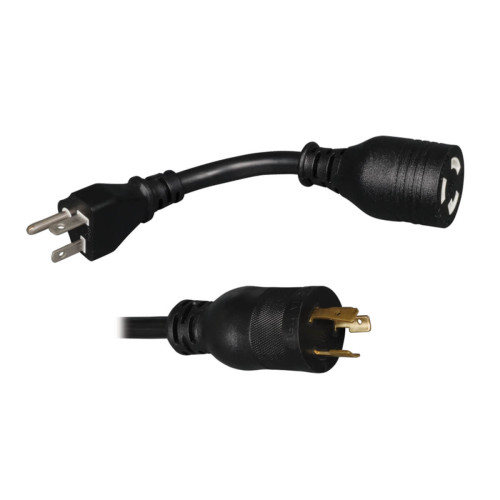

Power plug	NEMA 5–20P
Power
AC outlet types	NEMA 5–15R, NEMA 5–20R
AC outlets quantity	14 AC outlet(s)
Maximum current	20 A
Nominal input voltage	100-127 V
Nominal output voltage	100-127 V
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Depth	114.3 mm
Height	50.8 mm
Package depth	254 mm
Package height	57.2 mm
Package weight	3.22 kg
Package width	520.7 mm
Weight	2.09 kg
Width	508 mm

Tripp Lite PDUMH20-ISO power distribution unit (PDU) 14 AC outlet(s) 1U Black

Brand: Tripp-Lite
Product Code: PDUMH20-ISO
Availability: In Stock

$251.63

Qty

0 reviews / Write a review
