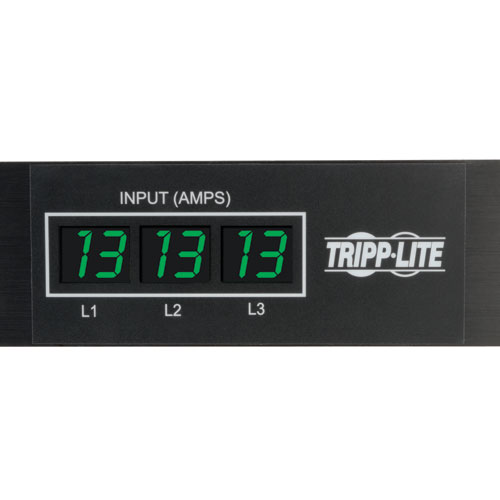

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
| Certification | TAA UL/CSA60950-1 NOM |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LED |
| Features | |
| Cable length | 1.8 m |
| Rack capacity | 0U |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 67.3 x 56 x 1778 mm |

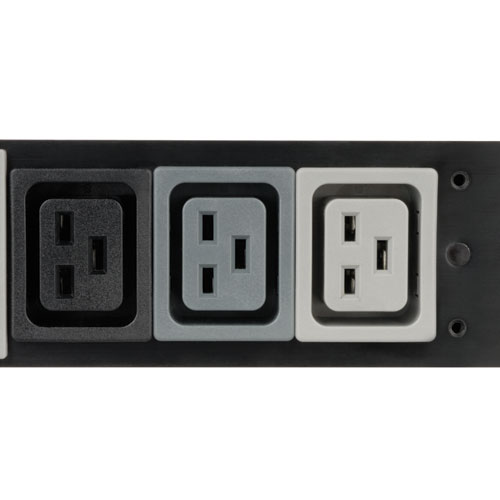

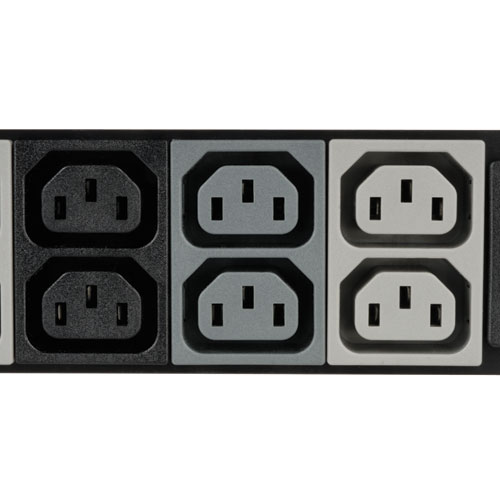

| Output connections | 36 x C13 & 9 x C19 |
| Packaging data | |
| Package dimensions (WxDxH) | 246 x 180 x 1928 mm |
| Ports & interfaces | |

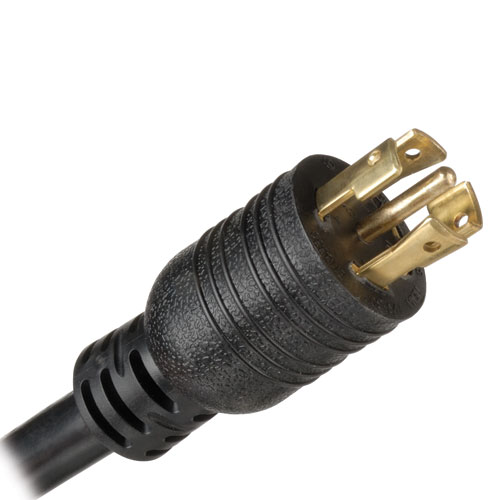

| Power plug | NEMA L21-30P |
| Power | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 45 AC outlet(s) |
| Maximum current | 24 A |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package weight | 10.3 kg |
| Weight | 6.1 kg |

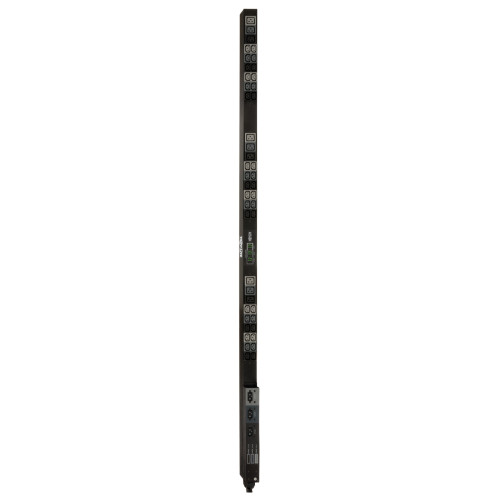

Tripp Lite PDU3MV6L2130A power distribution unit (PDU) 45 AC outlet(s) 0U Black
- Brand: Tripp-Lite
- Product Code: PDU3MV6L2130A
- Availability: In Stock
-
$750.04
