22.2kW 3 phase 360-415V input, 208-240V output Local Metered Power Distribution Unit / PDU

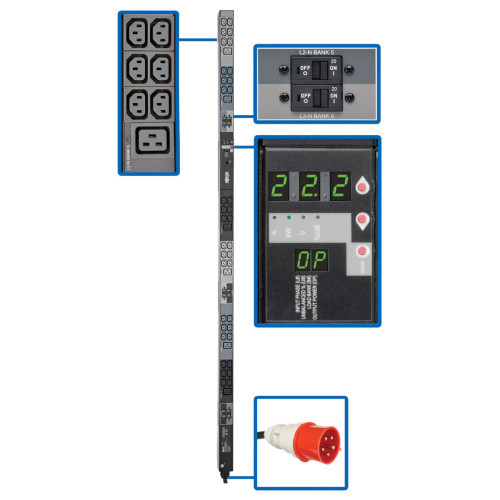

Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage

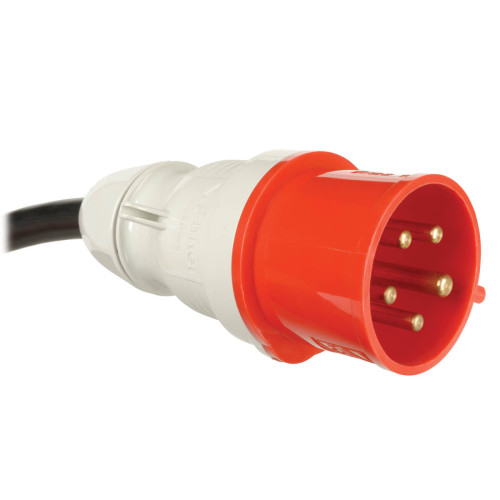

Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord

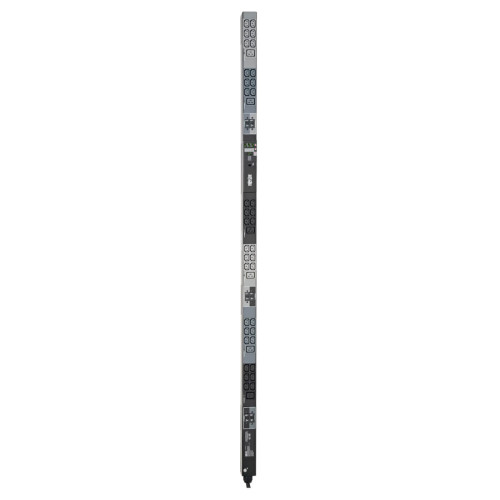

0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

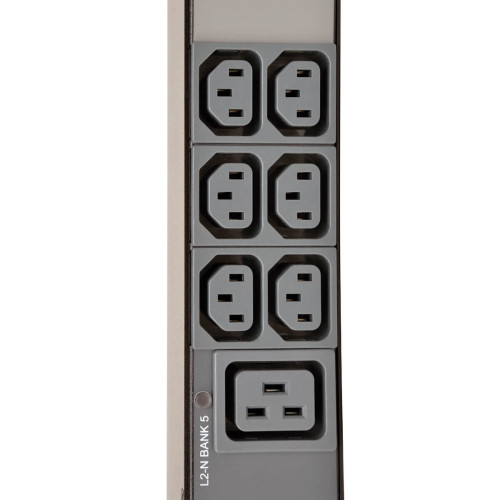

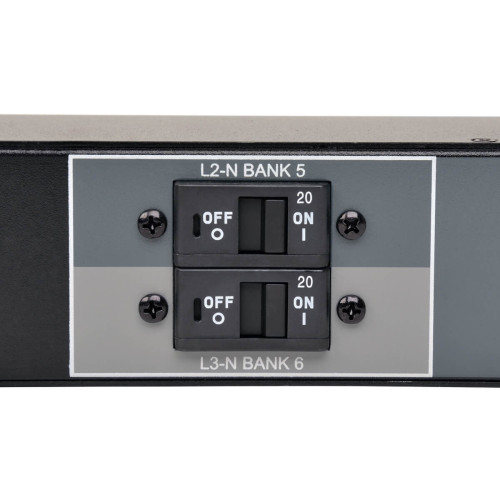

42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered

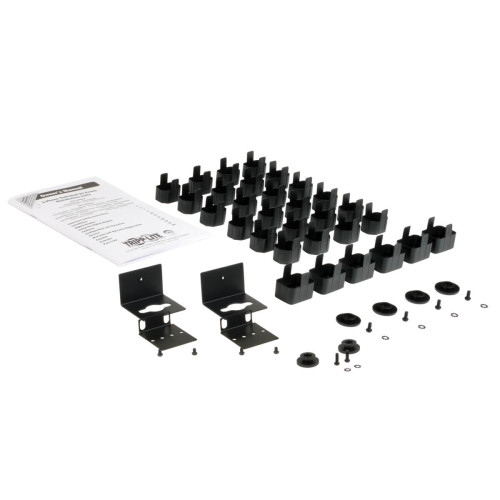

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage
Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
| Design | |
| Certification | Tested to CE (IEC 60950-1, EN55022, EN55024), EN Class A (Emissions), TAA Compliant |
| Country of origin | Taiwan |
| Housing material | Metal |
| LED indicators | Y |
| Mounting | Vertical |
| On/off switch | Y |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 1.83 m |
| Power protection features | Overload |
| Rack capacity | 0U |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 55.1 x 63.2 x 1778 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 150 x 175 x 1945 mm |
| Ports & interfaces | |
| Master AC outlets quantity | 36 |
| Power plug | IEC309 |
| Slave AC outlets quantity | 6 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 42 AC outlet(s) |
| Maximum current | 32 A |
| Maximum power | 23000 W |
| Maximum total current draw per phase | 16 A |
| Nominal input voltage | 380-400 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 63.2 mm |
| Height | 1778 mm |
| Package depth | 1944.9 mm |
| Package height | 175 mm |
| Package weight | 9.3 kg |
| Package width | 150.1 mm |
| Weight | 6.48 kg |
| Width | 55.1 mm |
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
- Brand: Tripp-Lite
- Product Code: PDU3XMV6G32
- Availability: In Stock
-
$826.01
