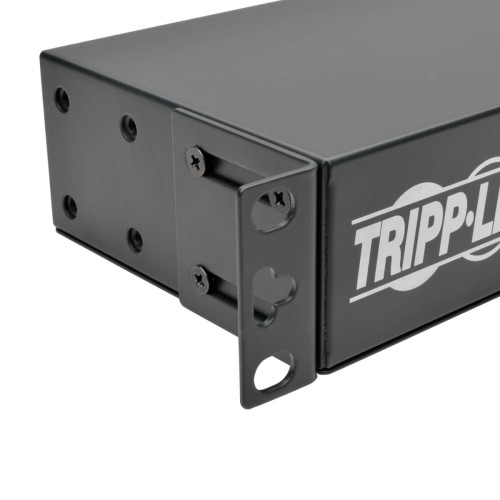

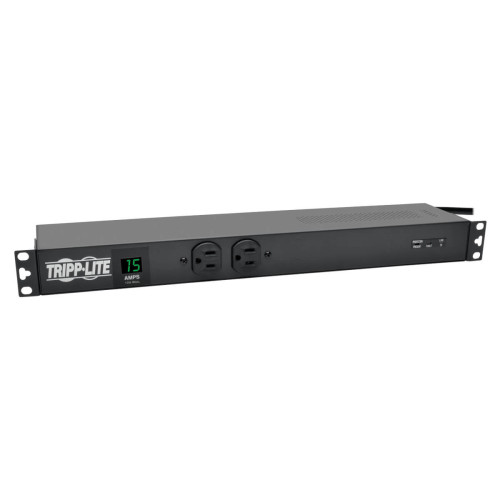

Tripp Lite Metered PDU / Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of 3 front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Package Includes
- PDUMH15-ISO Metered PDU with Surge Suppression
- Owner's manual with warranty information
Package Includes
- PDUMH15-ISO Metered PDU with Surge Suppression
- Owner's manual with warranty information
| Design | |
| Certification | UL1449, CSA |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Status |
| Mounting | Horizontal/Vertical |
| PDU types | Metered |
| Product colour | Black |
| Display | |
| Display | LCD |
| Features | |

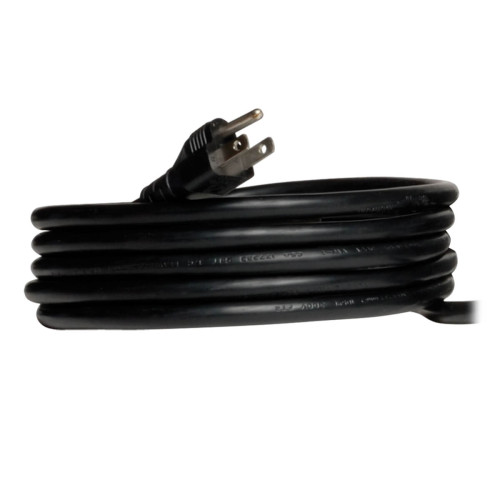

| Cable length | 4.5 m |
| EMI/RFI noise filtering | Y |
| Power protection features | Overload |
| Rack capacity | 0U/1U |
| Surge protection | Y |
| Type | Single-phase |
| Logistics data | |
| Master (outer) case gross weight | 14.6 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332183245 |
| Master (outer) case height | 247.6 mm |
| Master (outer) case length | 349.2 mm |
| Master (outer) case width | 527 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 50 °C |
| Ports & interfaces | |
| Power plug | NEMA L5-15P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |

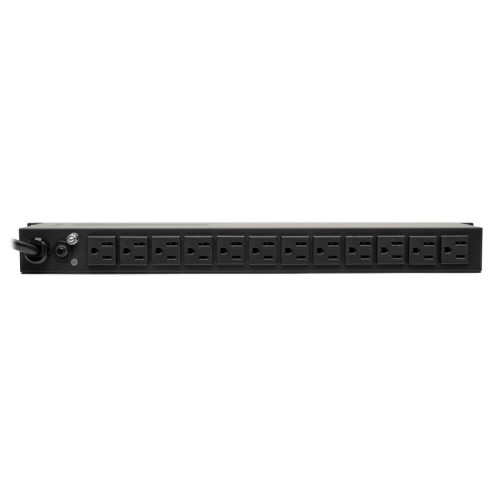

| AC outlets quantity | 14 AC outlet(s) |
| Load capacity | 140 VA |
| Maximum current | 15 A |
| Maximum power | 1520 W |
| Nominal input voltage | 100; 120; 127 V |
| Output voltage | 100; 120; 127 V |
| Surge energy rating | 3840 J |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 114.3 mm |
| Height | 508 mm |
| Package depth | 254 mm |
| Package height | 57.2 mm |
| Package weight | 2.65 kg |
| Package width | 520.7 mm |
| Weight | 2.09 kg |
| Width | 50.8 mm |
Tripp Lite 1.44kW Single-Phase Metered PDU + Isobar Surge Suppression, 3840 Joules, 120V Outlets (14 5-15R), 5-15P, 15ft Cord, 1U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDUMH15-ISO
- Availability: In Stock
-
$194.47
