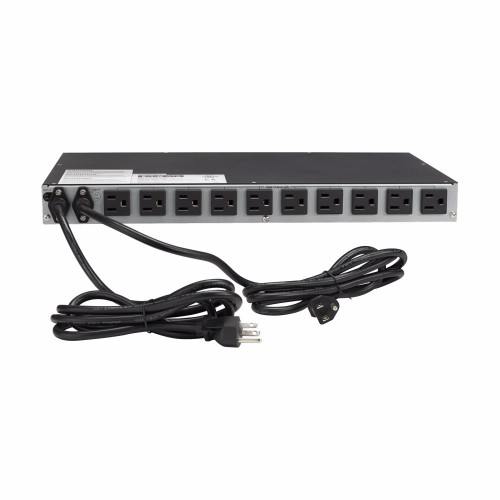

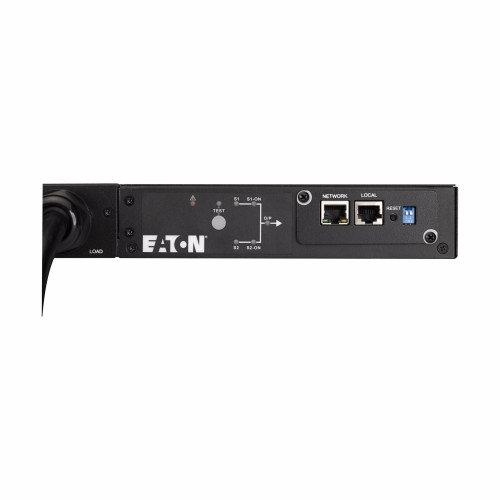

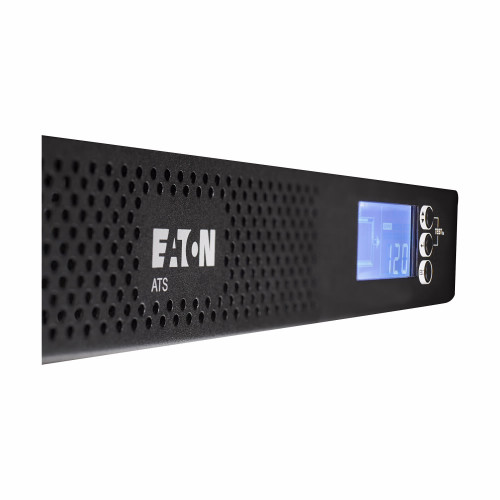

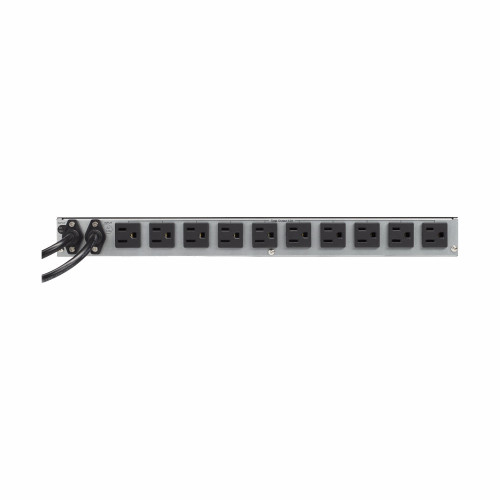

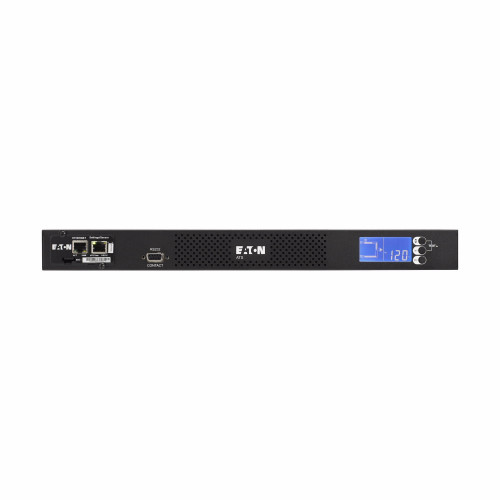

Eaton ATS rack PDU
The automatic transfer switch PDU monitors the power inputs of non-phase synchronized sources, providing a fast switch transfer from primary to secondary AC source power without interruption. These PDUs assure the highest level of redundancy to mission-critical applications.
The automatic transfer switch PDU monitors the power inputs of non-phase synchronized sources, providing a fast switch transfer from primary to secondary AC source power without interruption. These PDUs assure the highest level of redundancy to mission-critical applications.
| Design | |
| Certification | UL |
| Housing material | Metal |

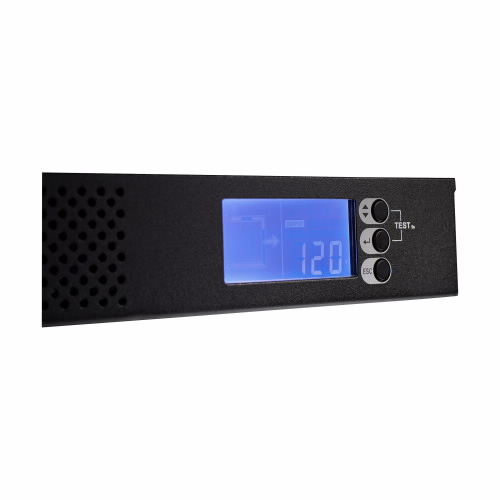

| LED indicators | Y |
| Mounting | Horizontal |
| PDU types | Monitored |
| Product colour | Black |
| Features | |
| Cable length | 1.5 m |
| Rack capacity | 1U |
| Type | Single-phase |
| Packaging content | |
| Cables included | AC |
| Manual | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power plug | NEMA 5–15P |
| Serial ports quantity | 1 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 10 AC outlet(s) |
| Maximum current | 12 A |
| Nominal input voltage | 120 V |
| Weight & dimensions | |
| Depth | 381 mm |
| Height | 137.1 mm |
| Package type | Box |
| Weight | 5.4 kg |
| Width | 558.8 mm |
Eaton eATS115 power distribution unit (PDU) 10 AC outlet(s) 1U Black
- Brand: Eaton
- Product Code: EATS115
- Availability: In Stock
-
$982.87
