Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

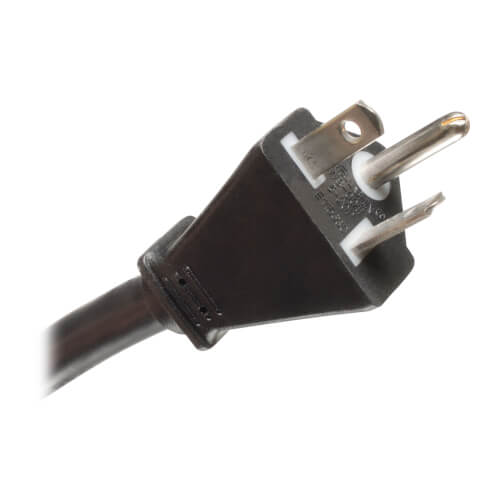

- NEMA 5-20P 20A 120v input plug with 15 ft. / 4.5m line cord

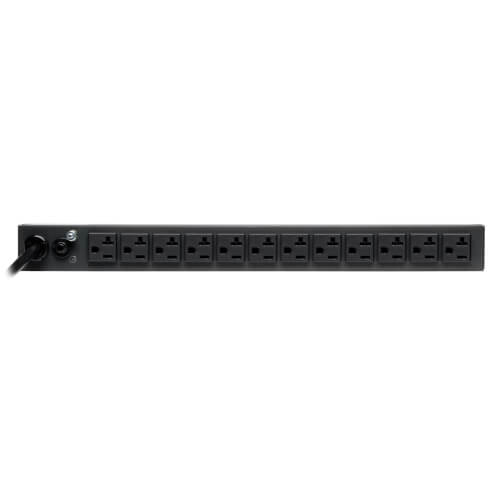

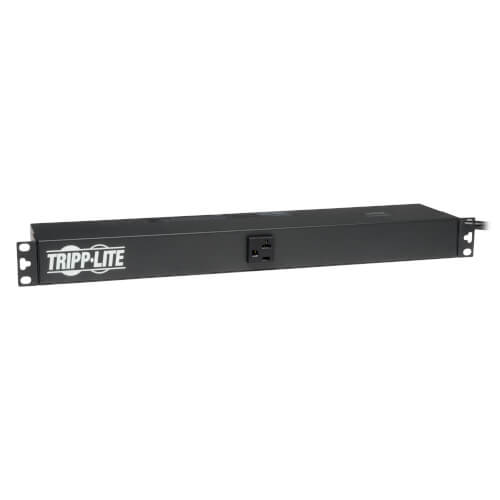

- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space
- NEMA 5-20P 20A 120v input plug with 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
| Design | |
| Certification | UL60950-1/CSA-C22.2 |
| Country of origin | China |
| Housing material | Metal |
| Mounting | Horizontal |
| PDU types | Basic |
| Product colour | Black |
| Features | |
| Cable length | 4.57 m |
| Rack capacity | 1U |
| Logistics data | |
| Master (outer) case gross weight | 16.1 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332116670 |
| Master (outer) case height | 256.5 mm |
| Master (outer) case length | 342.9 mm |
| Master (outer) case width | 525.8 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| Dimensions (WxDxH) | 445 x 114 x 45 mm |
| Ports & interfaces | |
| Power plug | NEMA 5–20P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| AC outlets quantity | 13 AC outlet(s) |
| Maximum current | 20 A |
| Nominal input voltage | 100-127 V |
| Nominal output voltage | 100-127 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 114.3 mm |
| Height | 50.8 mm |
| Package depth | 236.2 mm |
| Package height | 55.9 mm |
| Package weight | 2.59 kg |
| Package width | 518.2 mm |
| Weight | 2.36 kg |
| Width | 482.6 mm |
Tripp Lite 2.4kW Single-Phase Basic PDU, 120V Outlets (13 5-15/20R), 5-20P, 15ft Cord, 1U Rack-Mount
- Brand: Tripp-Lite
- Product Code: PDU1220
- Availability: In Stock
-
$147.95
