For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise protectors to protect sensitive computer, networking and telecom equipment. With more than 14 million satisfied customers, the Isobar remains the world's #1 selling premium surge protector. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest normal mode surge conditions. Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into an exclusive isolated filter bank that removes EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR6ULTRAHG offers 6 high quality hospital-grade outlets arranged in one filter bank to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules. Widely spaced NEMA 5-15 hospital-grade outlets accommodate up to 3 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 15 foot AC line cord with high quality hospital-grade input plug, keyhole mounting tabs and a set of 4 child safety covers. PLUG / OUTLETS: Incorporate NEMA 5-15PHG Hospital-grade plug and 6 NEMA 5-15RHG Hospital-grade receptacles ELECTRICAL: 120V AC, 50/60Hz SUPPRESSION: AC: 140V RMS Clamping / 3330 joules / 48,000 amps FORMAT: Corded all-metal surge suppressor with transformer spaced outlets

- Tripp Lite's ISOBAR is the world's #1 selling premium protector series with more than 14 million satisfied customers and a safety-tested history of 20+
- years
- Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions
- Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into an exclusive
- isolated filter bank that removes EMI/RFI interference, even noise from other pieces of connected equipment.

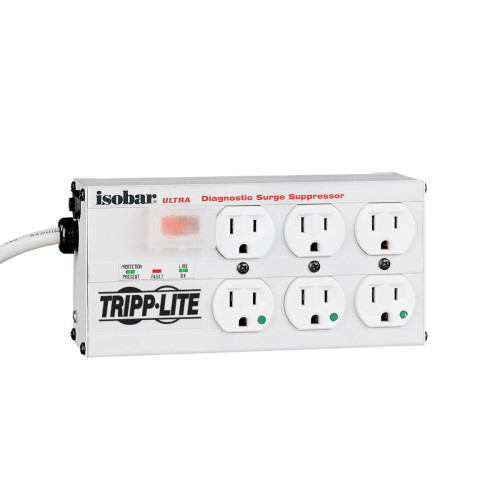

- 6 hospital-grade outlets
- Surge suppression rated at 3330 joules
- Widely spaced outlets accommodate up to 3 large transformer plugs without blocking outlets
- 3 LED indicators confirm surge protector operation and site wiring status, plus warning of protector or electrical fault conditions

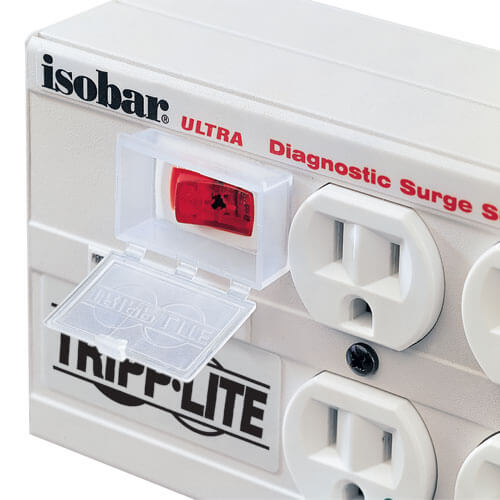

- Combo 12 amp circuit breaker/lighted power switch with safety cover

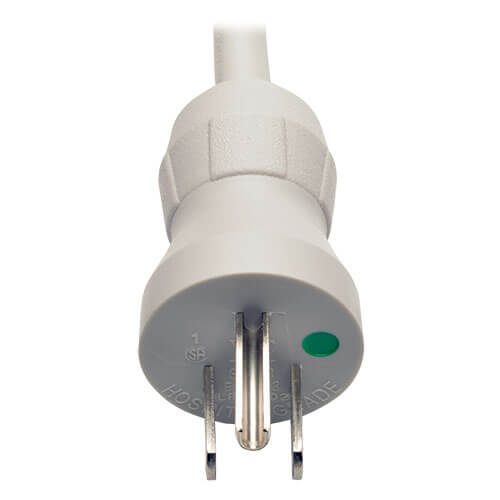

- 15-ft., 14 gauge AC line cord with hospital-grade input plug
- Keyhole mounting tabs
- 120V AC, 50/60Hz electrical compatibility
- Tested to UL (USA) and cUL (Canada) standards by ETL
- Automatic shutoff cuts power to outlets when the protection circuit has been compromised
Design
Country of origin China
LED indicators Y
On/off switch Y
Product colour White
Features
Cable length 4.57 m
EMI/RFI noise filtering 80 dB
Logistics data
Master (outer) case gross weight 11.2 kg
Master (outer) case GTIN (EAN/UPC) 10037332011159
Master (outer) case height 279.4 mm
Master (outer) case length 350.5 mm
Master (outer) case width 309.9 mm
Products per master (outer) case 6 pc(s)
Ports & interfaces
Power plug NEMA 5–15P
Power
AC input frequency 50 - 60 Hz
AC outlet types NEMA 5–15R
AC outlets quantity 6 AC outlet(s)
Nominal current output 12 A
Nominal input voltage 120 V
Surge energy rating 3300 J
Sustainability
Sustainability certificates RoHS
Technical details
Capacity 1440 W
Weight & dimensions
Depth 88.9 mm
Height 63.5 mm
Package depth 302.3 mm
Package height 88.9 mm
Package weight 1.77 kg
Package width 167.6 mm
Weight 1.27 kg
Width 177.8 mm

Write a review

Please login or register to review

Tripp Lite Isobar Surge Protector with 6 Hospital-Grade Outlets, 15-ft. Cord, 3300 Joules

  • Brand: Tripp-Lite
  • Product Code: ISOBAR6ULTRAHG
  • Availability: In Stock
  • $119.92
